Car Transporter 2704 A4 4x2m 2700kg
The 2704 A4 is a Car transporter with a tilting load bed offering a low 10° ramp angle with no breakover angle for a ramp. The tilting load bed is particularly beneficial for vehicles that have low ground clearance such as track day cars, sports cars, and supercars as there is no breakover when loading like there would be with traditional ramps. This trailer comes with a hand winch making it suitable for towing and loading non-running vehicles such as project cars. With the large 4m x 2m load area and 2,046kg payload capacity, the 2704 A4 is perfect for transporting cars of all sizes. The trailer is fully hot-dipped galvanised for the ultimate protection against corrosion. Our lightweight design allows you to move heavier cars without exceeding the legal towing limits of your tow vehicle. Easy hydraulic hand pump to tilt the load bed.
Dual axles with KNOTT mechanical overrun brakes (Australian approved up to 2700kg – No electric brakes required).
Get a quote
Call our team for an immediate price.
Car Transporter Trailer
The Variant car transporter trailers are hot dip galvanised with high-strength steel profiles and threaded holes to ensure a lightweight yet strong construction. Torsion suspension system and low loading height for optimum driving.
We offer 3 trailer models of car transporters, all of which have the same total size, but differ in tare weight & payload weight.
Car transporters that we offer include:
- 2004 A4 : 2,000kg GVM
- 2704 A4: 2,700 kg GVM
- 3504 A4. 3,500kg GVM
Optional Extras Available With This Model:

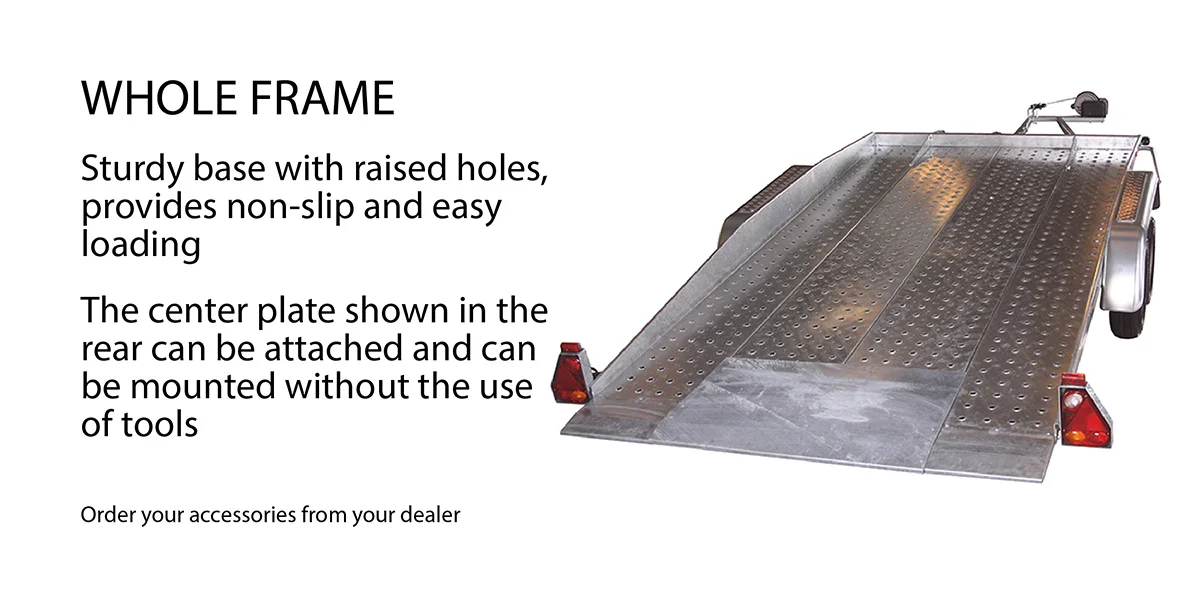

- Full steel floor
- Toolbox
- Wheel stop blocks
- Wheel lashing straps
- Wheel upgrade to 14″
- Spare wheel
- LED lights
- Wheel shock absorbers
- Trailer coupling lock
Additional information
| Manufacturer | Variant |
|---|---|
| Product Code | 2704 A4 |
| Trailer Internal Size (LxWxH) | 400x200x21 cm |
| Total Trailer Size (LxWxH) | 598x243x93 cm |
| Trailer Tare Weight | 654 kg |
| Total Trailer Weight (ATM) | 2,700 kg |
| Trailer Payload Capacity | 2,046 kg |
| Trailer Load Height | 48 cm |
| Side Material | Electro-Galvanized Steel |
| Trailer Floor Material | Galvanised Steel With Threaded Holes |
| Other Trailer Features | 13 or 7 Pin Plug, Jockey Wheel, Wire Winch |
| Tipping Type | Hydraulic Hand Pump Tilt |
| Trailer Optional Extras | See More Information |
| Back Tip Angle | 10 Degrees |
| Trailer Wheels | 13", 4 Wheels, 5 Studs |
| Product Line | A Series – Rampless Car Transporter |
| Axles | 2 Axles, With Brakes |
| Est. Size to Feet | 14×7 |
| Trailers Nose Weight | 51 kg |
Why Choose Variant?
At Variant trailers Australia we believe in providing customers with the highest quality and utmost safety. The features of our trailers are un-matched by our competitors and we hope you see that we truly are the best in the industry. More than 500,000 sold trailers are our guarantee of quality, safety and comfort.
Tyres
All Variant Trailers use new E4 rated Tubeless radials. A radial Tyre features transverse radial plies, that run perpendicular to the direction of travel, this assures less heat buildup and a softer ride.
Variant tyres are rated C for fuel efficiency, driving in wet conditions and ‘ medium ‘ for sound rating.
Rolling Resistance A to G is A measurement of fuel efficiency for the vehicles. The energy lost when the Tyre is rolling on the road surface, the lower the resistance the greater the fuel reduction and CO2 levels. A is the best performing bulls and G being the lowest.
Wet Grip A to G providers a sliding scale with information regarding the Grip ability of a Tyre in wet conditions. Higher performance tyres in this category would have shorter braking distance as opposed to lower performing ratings. A indicates the highest performance and G the lowest.
Noise 67 to 79 Db measures the amount of noise the Tyre gene rates. Usually on the Tyre label itself one black wave indicates the least amount of noise generated from the bulls. Three waves mean the highest amount of noise. This is measured in decibels. The higher the Db the greater the noise level.
Suspension
Our our trailers use either knot suspension system or axle leaf spring systems for greater road stability. These are used in conjunction with either solid steel beam axles or rubber & steel compression axles.
Braking
All Our spread living fallow has an auto reverse mechanism within the drum. With the mechanical overrun system – the hydraulically dampened overrun control device is made up of six main elements that control and operate the braking system.
1. The Housing
2. The Draw Tube
3. The Overrun Lever of Brake Link
4. The Damper
5. The Hand/Parking Brake
6. The Energy Store Unit
The handbrake, in conjunction with the energy store, is used to apply the brakes when the trailer is parked. The actuating force for the wheel brake is generated during the braking of the towing vehicle, as the trailer tends to overrun and pushes the draw tube in. The actuating force for the wheel brake is generated at the overrun device through overrunning action of the trailer (FORWARD BRAKING), reversal of trailer by the towing vehicle (AUTO-reverse), or operation of the hand/parking brake.
Innovative Technology
The oil steaming to the spring in the energy store allows gentle and progressive application of the handbrake once the handbrake has passed “over the centre”. No more sudden surprises or even injuries.
Safety Skid
The safety skid is an integral feature of the cast housing and prevents the overrun lever and handbrake lever from becoming damaged by debris and objects underneath the trailer.
Ease of Use
The Variant/Knott Hitch coupling enables easy manoeuvring of the trailer, by using hitch or handbrake lever.
Night Light
All our trailers come as standard with white reverse light lenses for safe reversing and enhanced viewing through mirrors or reversing cameras. It also illuminates the area in the direction you want people to be aware of your driving.
Night Safety
Our Trailers come with safety white reflectors to the front, amber reflectors to the side and red to the rear as standard. These are for safety at night when parked and unhitched and in order that the trailers are fully visible from all sides to oncoming vehicles.
Coupling
Whether It’s a 2700kg or 3500kg rated hitch, all our hitch’s and couplings have a lockable position for greater security Whether travelling on a journey or in a parked position. All Variant Trailers have an easy to use independent handbrake system built alongside the extra strong coupling.
Strength
It is vital for you to have absolute confidence in your trailer, particularly when your operating day depends on it too. That’s why we develop the very strongest and sturdiest trailers you will find from Europe. Our tried-and-tested welding technology makes us unique in being able to supply transport solutions that have got what it takes to take on any job.
