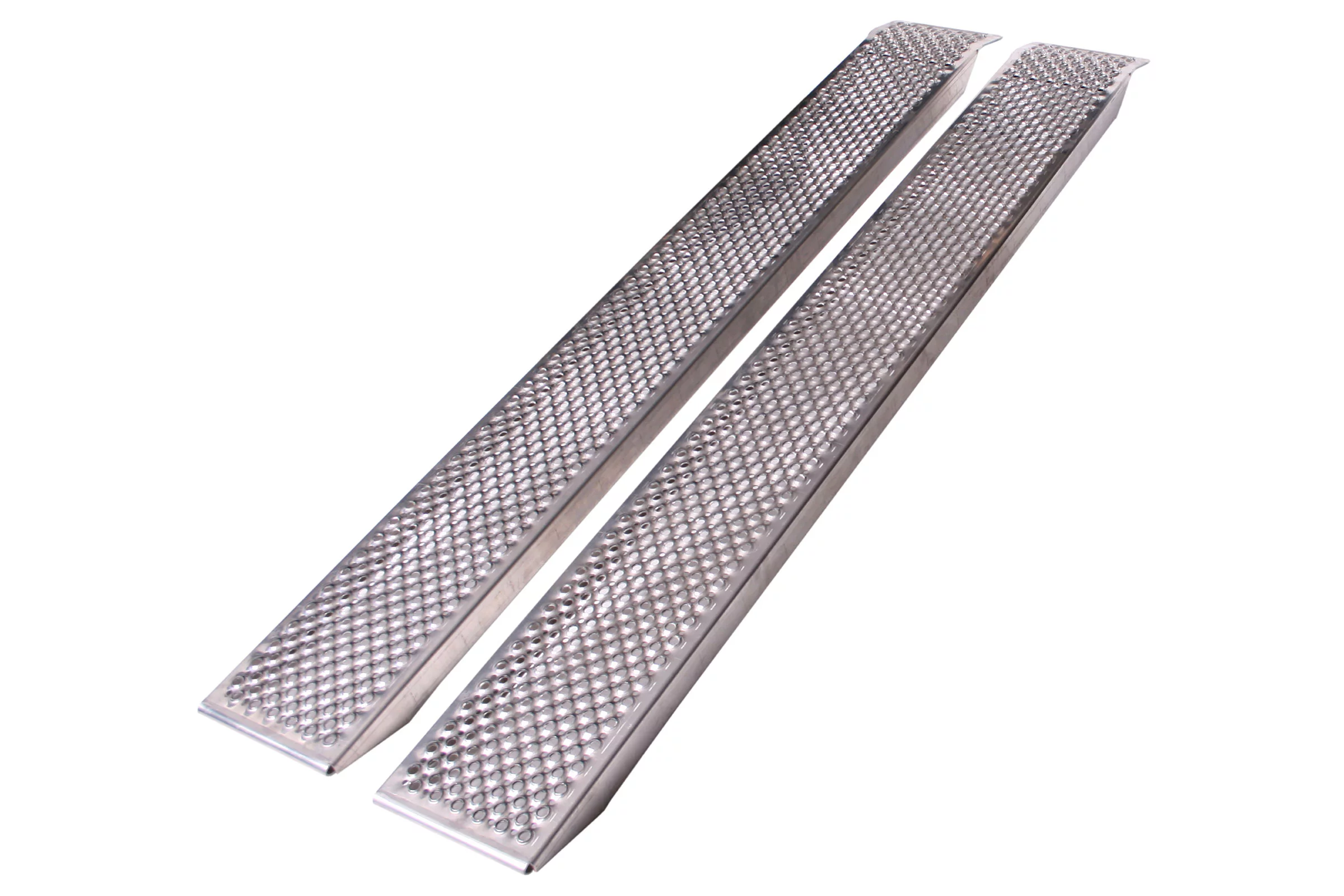

Driving Ramps 1000kg
Get a quote
Call our team for an immediate price.
| Article no. | Drive ramps – set with 2 pieces. | Cutting height max cm |
|---|---|---|
| 91001 | Equal, 1500 x 260 mm, 1000 kg per. set | 42 |
| 90054 (pictured & priced) | Equal, 2000 x 260 mm, 1000 kg per. set | 57 |
| 91002 | Buet, 2000 x 260 mm, 1000 kg per. set | 57 |
| 91003 | Straight, 2500 x 260 mm, 1000 kg per. set | 72 |
| 91004 | Curved, 2500 x 260 mm, 1000 kg per. set | 72 |
| 91005 | Straight, 3000 x 260 mm, 1000 kg per. set | 87 |
| Driving Ramps Set 1000 kg 200 cm | 1313 A3 1013 S2 1413 S2 754 F1 with Tilt 1304 F1 with Tilt 1315 C2 1315 HT 1317 C4 1305 C3 2005 CVB35 2705 CVB35 1315 K2 1315 F2 2000 MC-XL |
| Driving Ramps Set 1000 kg 250 cm | 503 DS1 756 A-10 Steel 756 A-13 Steel 1306 B-10 Steel 1306 B-13 Steel 756 A Alu 1306 B Alu 1315 T2 1815 T2 2015 T2 13P215 20P215 |
Suitable for the following trailers:
- S11 S1 Silver
- 205 S1
- 205 S1 with tilt
- 220 S1
- 220 S1 with tilt
- 1013 S2
- 1413 S2
- 205 XL
- 220 XL
- 502 D2
- 713 A2
- 713 A3-2
- 1313 A3
- 754 F1 with tilt
- 1004 F1 with tilt
- 1304 F1 with tilt
- 2004 F2
- 13p215
- 2018 P2-10
- 2018 P3-10
- 2018 P4-10
- 3018 P3-10
- 3018 P4-10
- 3021 P3-10
- 3021 P4-10
- 3021 P5-10
- 3321 P5-10
- 3321 P6-10
- 3325 P5-10
- 3325 P6-10
- 2000 MC-XL
- 752 DC2
- 715 C2
- B715 C2
- 1015 C2
- 1315 C2
- 1305 C3
- 2005 C3
- 2517 C3
- 1317 C4
- 2005 CVB35
- 2705 CVB35
- 2705 CVB42
- 3021 C4
- 3521 C4
- 752 DK2
- 1015 K2
- 1315 K2
- 2017 K3
- 2719 K4
- 1015 F2
- 1315 F2
- 2017 F3
- 2719 F4
Additional information
| Trailer Size (LxW) | 2000 x 260 mm each |
|---|---|
| Ramp Type | Straight |
| Trailer Payload Capacity | 1,000 kg |
Why Choose Variant?
At Variant trailers Australia we believe in providing customers with the highest quality and utmost safety. The features of our trailers are un-matched by our competitors and we hope you see that we truly are the best in the industry. More than 500,000 sold trailers are our guarantee of quality, safety and comfort.
Tyres
All Variant Trailers use new E4 rated Tubeless radials. A radial Tyre features transverse radial plies, that run perpendicular to the direction of travel, this assures less heat buildup and a softer ride.
Variant tyres are rated C for fuel efficiency, driving in wet conditions and ‘ medium ‘ for sound rating.
Rolling Resistance A to G is A measurement of fuel efficiency for the vehicles. The energy lost when the Tyre is rolling on the road surface, the lower the resistance the greater the fuel reduction and CO2 levels. A is the best performing bulls and G being the lowest.
Wet Grip A to G providers a sliding scale with information regarding the Grip ability of a Tyre in wet conditions. Higher performance tyres in this category would have shorter braking distance as opposed to lower performing ratings. A indicates the highest performance and G the lowest.
Noise 67 to 79 Db measures the amount of noise the Tyre gene rates. Usually on the Tyre label itself one black wave indicates the least amount of noise generated from the bulls. Three waves mean the highest amount of noise. This is measured in decibels. The higher the Db the greater the noise level.
Suspension
Our our trailers use either knot suspension system or axle leaf spring systems for greater road stability. These are used in conjunction with either solid steel beam axles or rubber & steel compression axles.
Braking
All Our spread living fallow has an auto reverse mechanism within the drum. With the mechanical overrun system – the hydraulically dampened overrun control device is made up of six main elements that control and operate the braking system.
1. The Housing
2. The Draw Tube
3. The Overrun Lever of Brake Link
4. The Damper
5. The Hand/Parking Brake
6. The Energy Store Unit
The handbrake, in conjunction with the energy store, is used to apply the brakes when the trailer is parked. The actuating force for the wheel brake is generated during the braking of the towing vehicle, as the trailer tends to overrun and pushes the draw tube in. The actuating force for the wheel brake is generated at the overrun device through overrunning action of the trailer (FORWARD BRAKING), reversal of trailer by the towing vehicle (AUTO-reverse), or operation of the hand/parking brake.
Innovative Technology
The oil steaming to the spring in the energy store allows gentle and progressive application of the handbrake once the handbrake has passed “over the centre”. No more sudden surprises or even injuries.
Safety Skid
The safety skid is an integral feature of the cast housing and prevents the overrun lever and handbrake lever from becoming damaged by debris and objects underneath the trailer.
Ease of Use
The Variant/Knott Hitch coupling enables easy manoeuvring of the trailer, by using hitch or handbrake lever.
Night Light
All our trailers come as standard with white reverse light lenses for safe reversing and enhanced viewing through mirrors or reversing cameras. It also illuminates the area in the direction you want people to be aware of your driving.
Night Safety
Our Trailers come with safety white reflectors to the front, amber reflectors to the side and red to the rear as standard. These are for safety at night when parked and unhitched and in order that the trailers are fully visible from all sides to oncoming vehicles.
Coupling
Whether It’s a 2700kg or 3500kg rated hitch, all our hitch’s and couplings have a lockable position for greater security Whether travelling on a journey or in a parked position. All Variant Trailers have an easy to use independent handbrake system built alongside the extra strong coupling.
Strength
It is vital for you to have absolute confidence in your trailer, particularly when your operating day depends on it too. That’s why we develop the very strongest and sturdiest trailers you will find from Europe. Our tried-and-tested welding technology makes us unique in being able to supply transport solutions that have got what it takes to take on any job.
