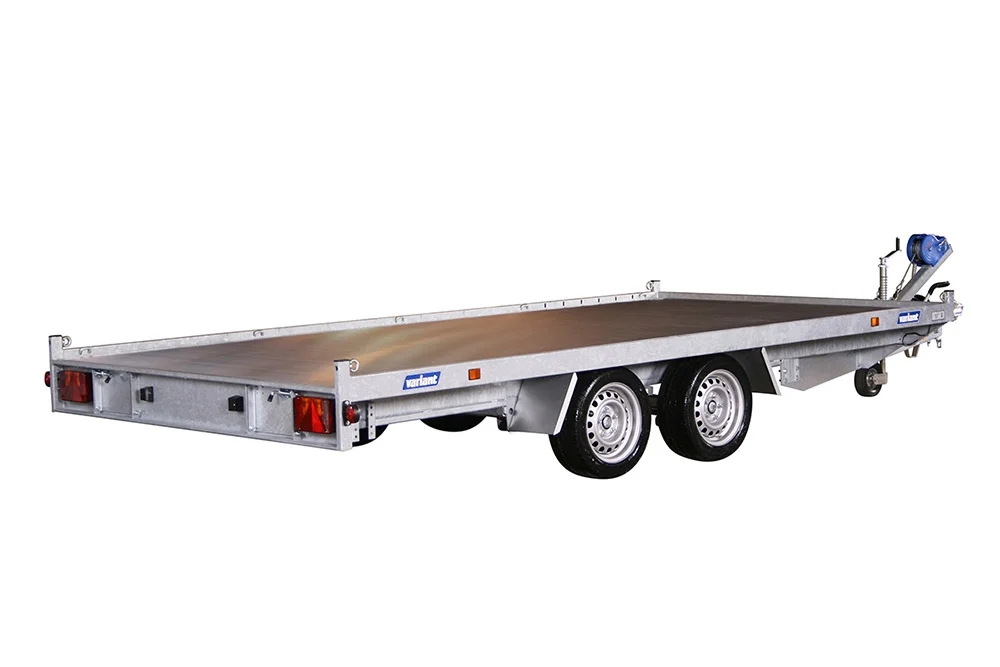

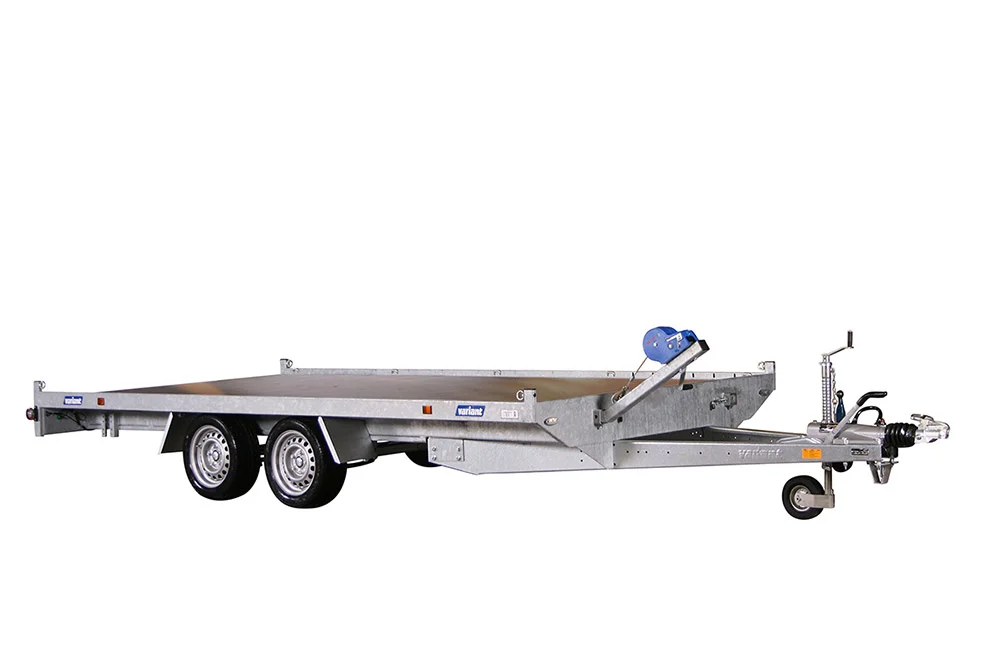

Flatbed Car Trailer 3521 L4 4.2×2.04m
Aluminium Flatbed car trailer with wire winch and ramps. 4.20m long bed and 2,784 kg payload capacity, perfect for luxury cars, race cars, machines and tractors. Galvanised steel chassis for durability and longevity with an aluminium floor for a reduced tare weight and greater payload capacity. Dual axles with KNOTT mechanical overrun brakes.
MAXI-LOAD
This trailer features Variant MAXI-LOAD Technology – Not just a trailer…
Get a quote
Call our team for an immediate price.
L Series Flatbed Car Transporter Features

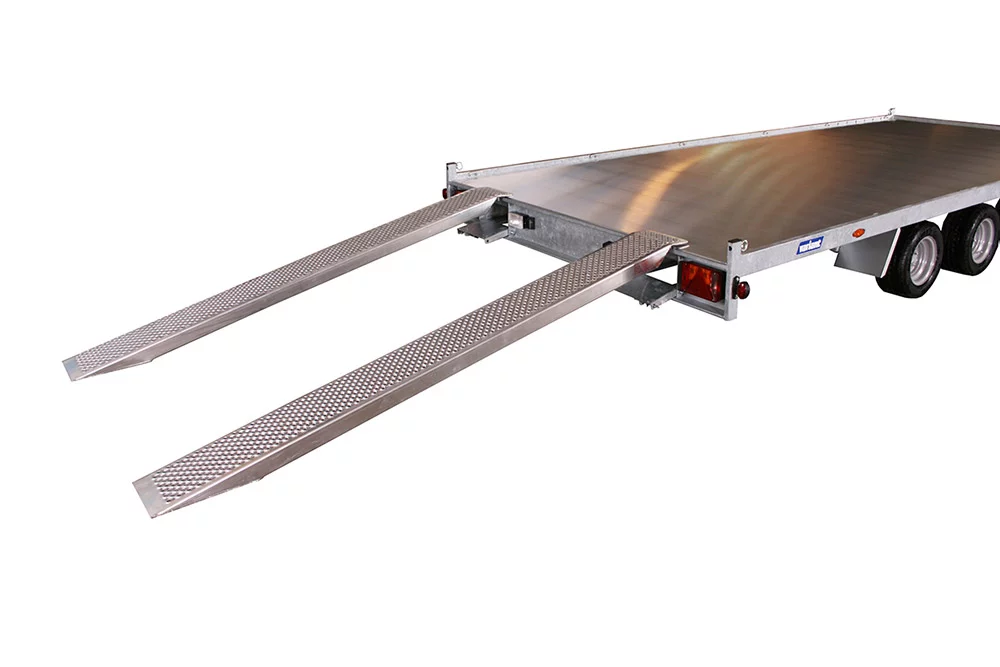

Included 250cm, 4T Ramps

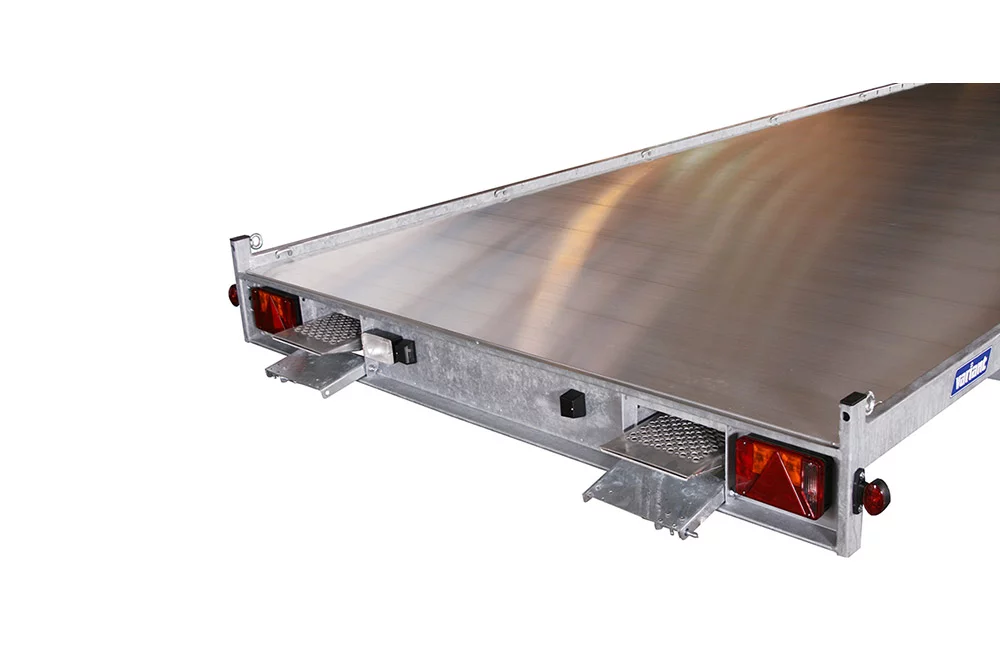

Each L Series car transporter is equipped with a pair of 4T, 250cm long lightweight aluminium ramps that fit inside of the ramp drawers underneath the trailer floor.

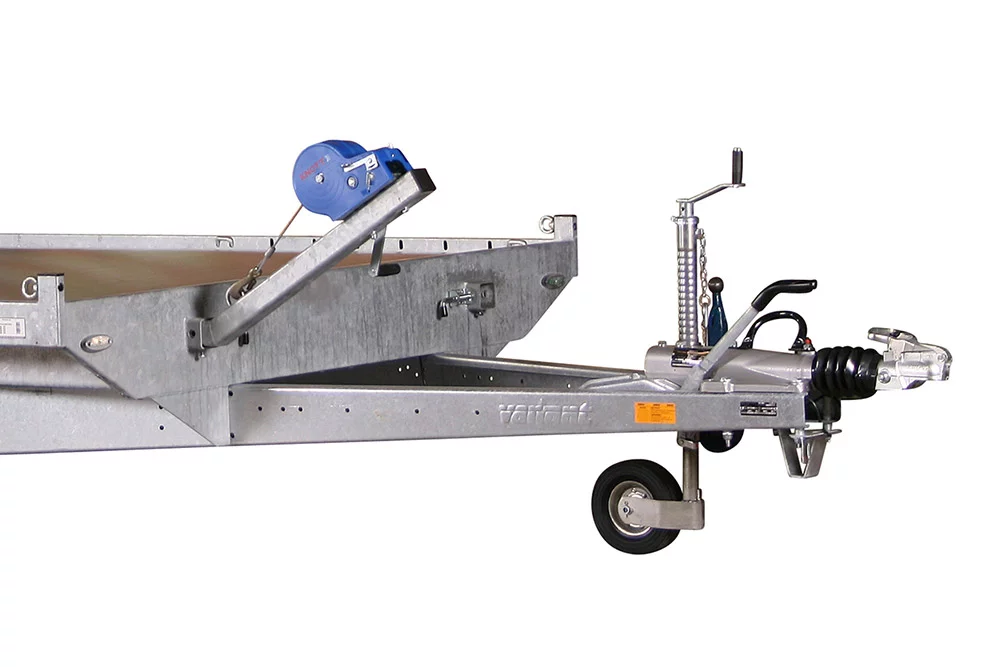

Included KNOTT Winch
For vehicles and machines that cannot be driven onto the trailer, the L Series trailer is equipped with a KNOTT hand winch that can be repositioned on the left or right hand side of the trailer.
Aluminium Floor
Variant L Series flatbed car transporters have an aluminium floor as standard to reduce the overall weight of the trailer and increase the load capacity to allow the loading of larger vehicles and SUVs.
Integrated Tie-Downs
Tie-down points are accessible along the sides of the trailer and retract into the rail when not needed. The tie-downs are rated to 500kg each and are suitable for use with the wheel tie-down straps.
Optional Extras Available With This Model:
| Toolbox, mounted below the floor |
| Dropstand, 2 pcs. |
| Standard spare wheel with bracket |
| LED light |
| Wheel shock absorbers (all wheels) |
| Aluminum dropsides – 35 cm |

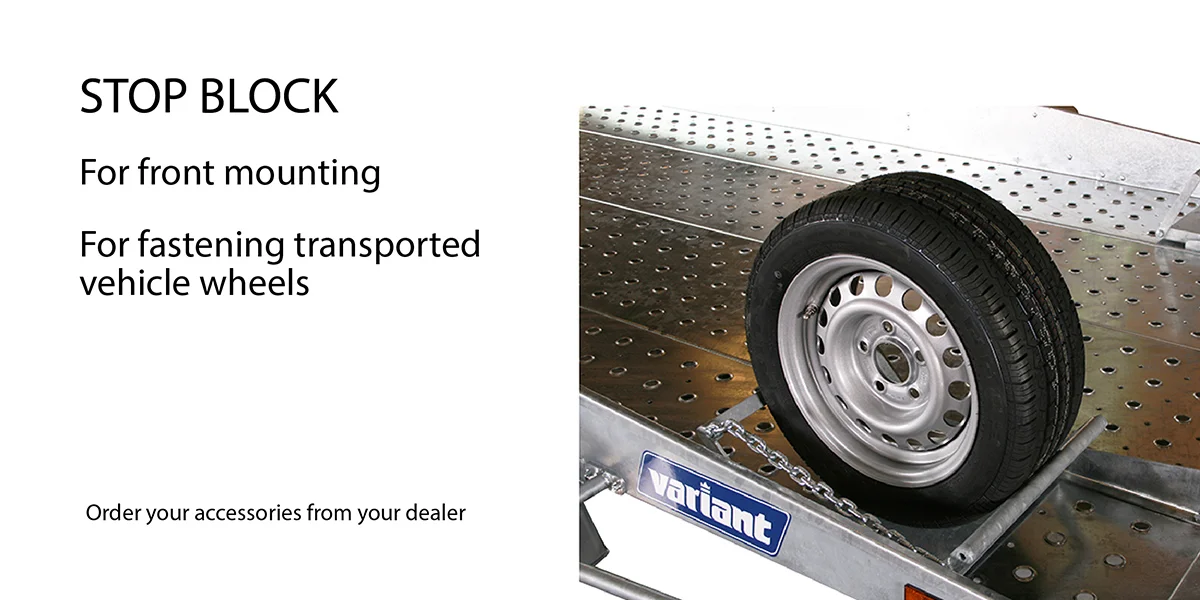

| Wheel stops |

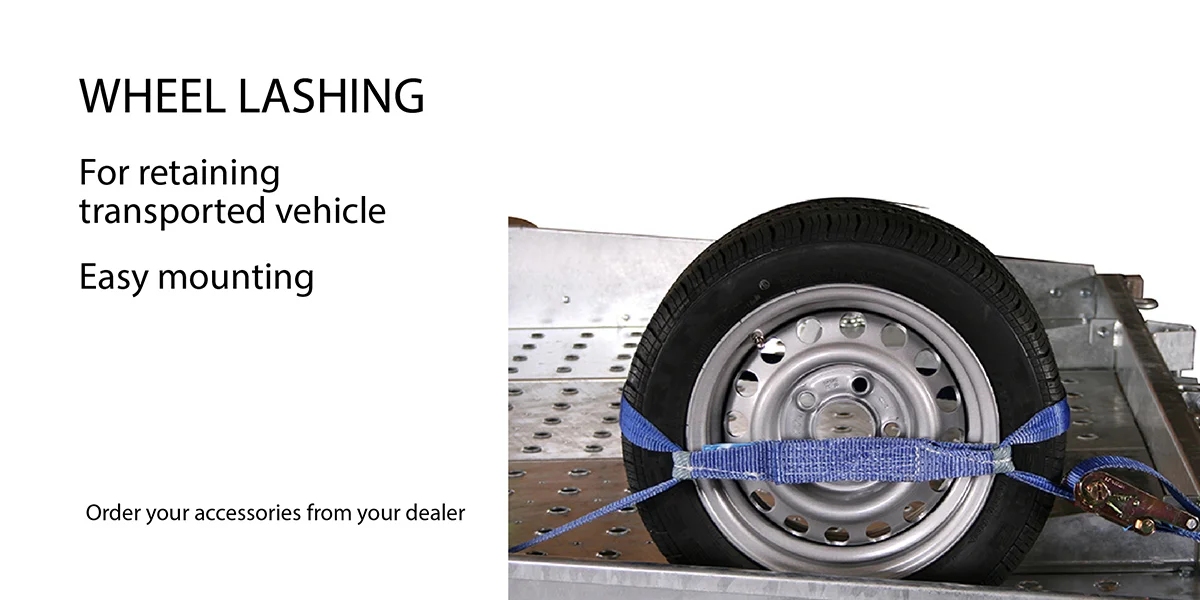

| Wheel lashing |
Additional information
| Manufacturer | Variant |
|---|---|
| Product Code | 3521 L4 |
| Product Line | L Series – Flatbed Car Transporter |
| Trailer Internal Size (LxWxH) | 420x204x4 cm |
| Total Trailer Size (LxWxH) | 589x211x70 cm |
| Trailer Tare Weight | 716 kg |
| Total Trailer Weight (ATM) | 3,500 kg |
| Trailer Payload Capacity | 2,784 kg |
| Trailer Load Height | 59 cm |
| Trailer Wheels | 13", 4 Wheels, 5 Studs |
| Axles | 2 Axles, With Brakes |
| Trailer Floor Material | Aluminium (Ruflet) |
| Other Trailer Features | 13 or 7 Pin Plug, 8 Lashing Straps, Aluminium Driving Ramps 4000kg, Jockey Wheel, Parabolic Leaf Springs, Ramp Drawers, Wire Winch |
| Trailer Optional Extras | See More Information |
| Ramp Angle | 14 degrees |
| Est. Size to Feet | 14×7 |
Why Choose Variant?
At Variant trailers Australia we believe in providing customers with the highest quality and utmost safety. The features of our trailers are un-matched by our competitors and we hope you see that we truly are the best in the industry. More than 500,000 sold trailers are our guarantee of quality, safety and comfort.
Tyres
All Variant Trailers use new E4 rated Tubeless radials. A radial Tyre features transverse radial plies, that run perpendicular to the direction of travel, this assures less heat buildup and a softer ride.
Variant tyres are rated C for fuel efficiency, driving in wet conditions and ‘ medium ‘ for sound rating.
Rolling Resistance A to G is A measurement of fuel efficiency for the vehicles. The energy lost when the Tyre is rolling on the road surface, the lower the resistance the greater the fuel reduction and CO2 levels. A is the best performing bulls and G being the lowest.
Wet Grip A to G providers a sliding scale with information regarding the Grip ability of a Tyre in wet conditions. Higher performance tyres in this category would have shorter braking distance as opposed to lower performing ratings. A indicates the highest performance and G the lowest.
Noise 67 to 79 Db measures the amount of noise the Tyre gene rates. Usually on the Tyre label itself one black wave indicates the least amount of noise generated from the bulls. Three waves mean the highest amount of noise. This is measured in decibels. The higher the Db the greater the noise level.
Suspension
Our our trailers use either knot suspension system or axle leaf spring systems for greater road stability. These are used in conjunction with either solid steel beam axles or rubber & steel compression axles.
Braking
All Our spread living fallow has an auto reverse mechanism within the drum. With the mechanical overrun system – the hydraulically dampened overrun control device is made up of six main elements that control and operate the braking system.
1. The Housing
2. The Draw Tube
3. The Overrun Lever of Brake Link
4. The Damper
5. The Hand/Parking Brake
6. The Energy Store Unit
The handbrake, in conjunction with the energy store, is used to apply the brakes when the trailer is parked. The actuating force for the wheel brake is generated during the braking of the towing vehicle, as the trailer tends to overrun and pushes the draw tube in. The actuating force for the wheel brake is generated at the overrun device through overrunning action of the trailer (FORWARD BRAKING), reversal of trailer by the towing vehicle (AUTO-reverse), or operation of the hand/parking brake.
Innovative Technology
The oil steaming to the spring in the energy store allows gentle and progressive application of the handbrake once the handbrake has passed “over the centre”. No more sudden surprises or even injuries.
Safety Skid
The safety skid is an integral feature of the cast housing and prevents the overrun lever and handbrake lever from becoming damaged by debris and objects underneath the trailer.
Ease of Use
The Variant/Knott Hitch coupling enables easy manoeuvring of the trailer, by using hitch or handbrake lever.
Night Light
All our trailers come as standard with white reverse light lenses for safe reversing and enhanced viewing through mirrors or reversing cameras. It also illuminates the area in the direction you want people to be aware of your driving.
Night Safety
Our Trailers come with safety white reflectors to the front, amber reflectors to the side and red to the rear as standard. These are for safety at night when parked and unhitched and in order that the trailers are fully visible from all sides to oncoming vehicles.
Coupling
Whether It’s a 2700kg or 3500kg rated hitch, all our hitch’s and couplings have a lockable position for greater security Whether travelling on a journey or in a parked position. All Variant Trailers have an easy to use independent handbrake system built alongside the extra strong coupling.
Strength
It is vital for you to have absolute confidence in your trailer, particularly when your operating day depends on it too. That’s why we develop the very strongest and sturdiest trailers you will find from Europe. Our tried-and-tested welding technology makes us unique in being able to supply transport solutions that have got what it takes to take on any job.
