Machine Tipper Trailer 3517 MT 3.66×1.76m

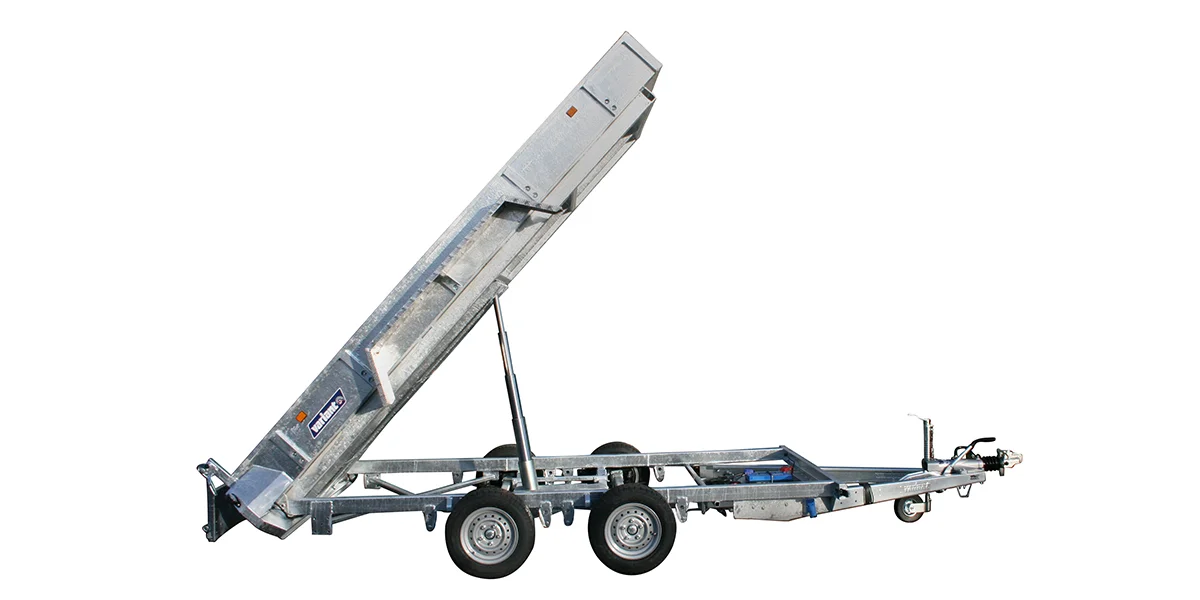

Tandem 48 degrees electric hydraulic steel tipper trailer. 3.6m long box and 2,556 kg payload capacity, perfect for transporting plant equipment and machinery as well as dumping construction loads. Galvanised steel chassis for durability and longevity. Dual axles with mechanical overrun brakes.

For Specs, see “Product Information ”

Contact us to order now!



Product Code

3517 MT


Auto-Transporters, Machine Series

Internal Dimensions (LxWxH)

360x170x30 cm

Total Dimensions (LxWxH)

520x215x94 cm

Tare Weight

944 kg

Total Weight (ATM)

3,500 kg

Payload Capacity

2,556 kg

Loading Height

46 cm


12", 4 Wheels, 5 Studs


2 Axles, With Brakes

Side Material

Galvanized Steel

Floor Material

Phenolic Plywood 18mm

Lashing Rings

10 Hooks

Opening / Detachable Sides

Back (Tailgate)

Other Included Features

13 or 7 Pin Plug, Jockey Wheel, Parabolic Leaf Springs

Optional Extras

See More Information

Back Tip Angle

48 degrees

Ramp Angle

12 Degrees

Rough Size In Feet

12×5.6 ft

Optional Extras Available With This Model:

Standard spare wheel with bracket
LED light
Wheel shock absorbers (all wheels)
Trailer lock, strong
Steel floor
Net grid – 80 cm
Plate side – 80 cm
Electric – tip with app control
Electric – tip with wireless control
Dropstand, 2 pcs.

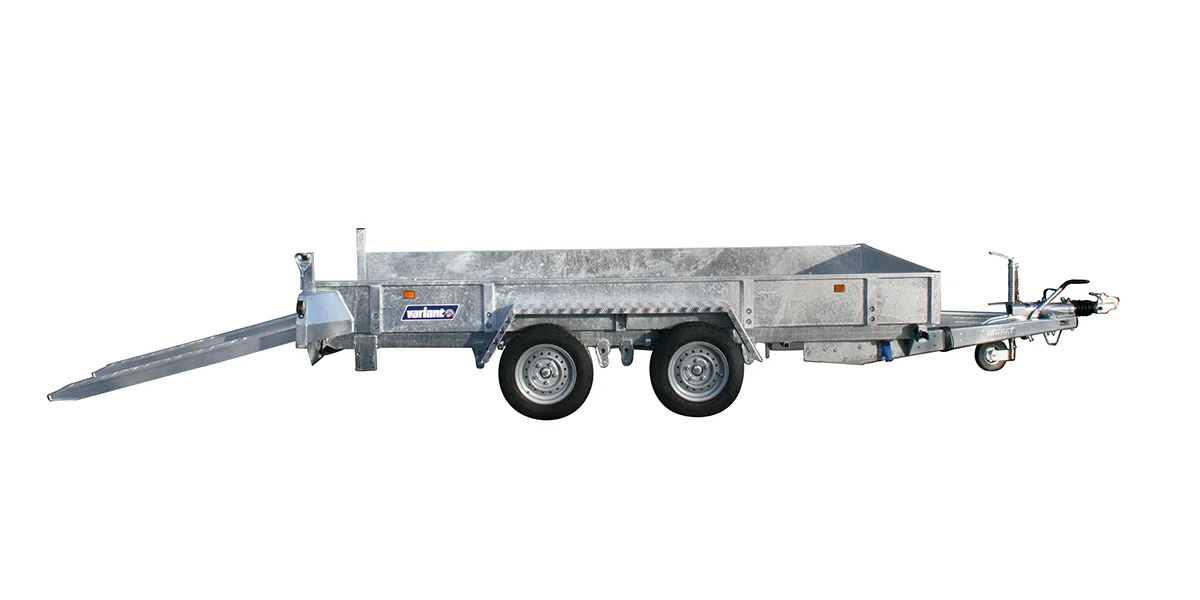

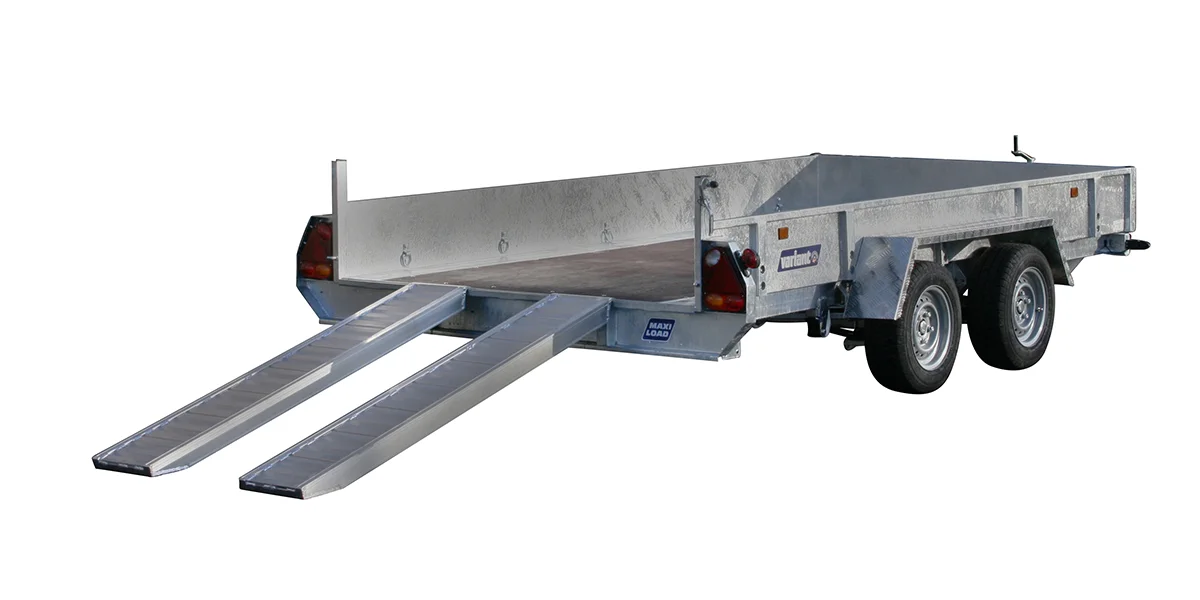

Ramps 2,8 t/175 cm
