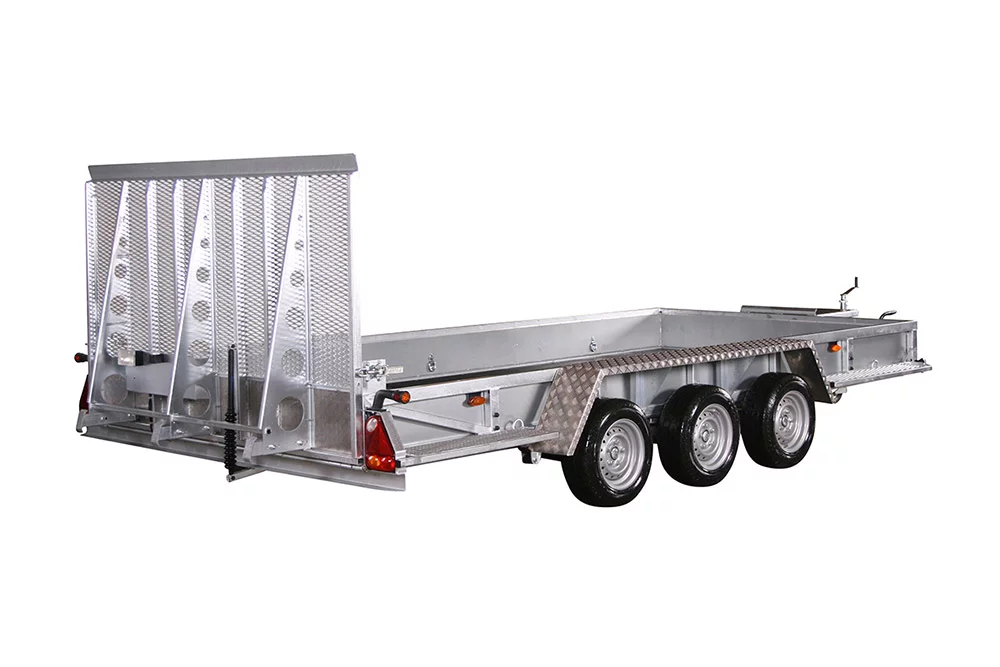

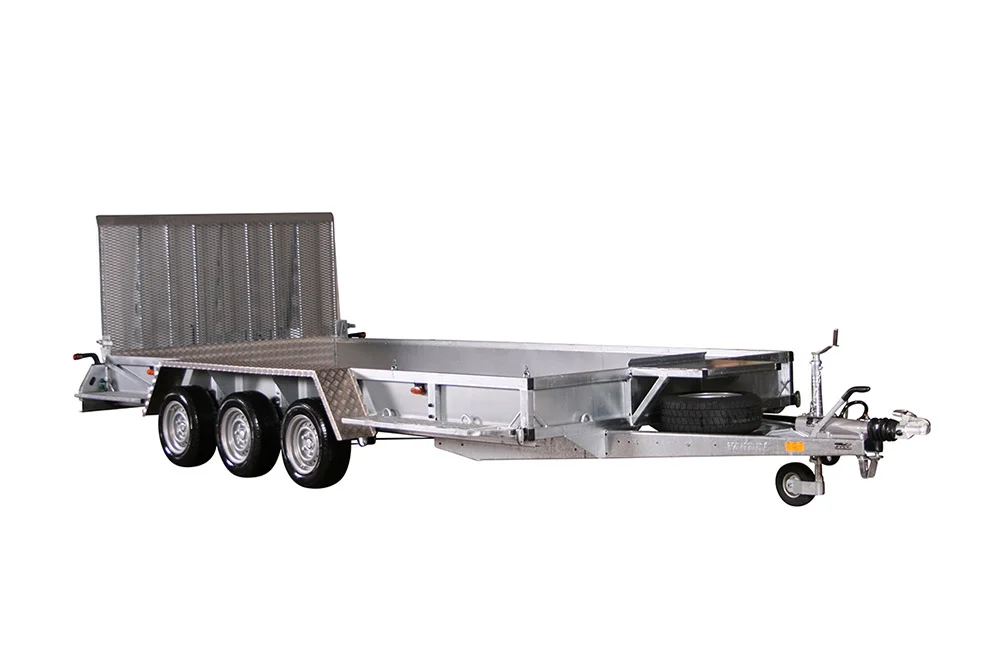

Machine Transporter 3520 M5 4.68×2.06m

Tri-axle machine transporter with strong back ramp. 4.63m long box and 2,490kg payload capacity, perfect for transporting large heavy machinery and equipment. Galvanised steel chassis for durability and longevity. Three axles with mechanical overrun brakes.

For Specs, see “Product Information ”

Contact us to order now!



Product Code

3520 M5


Auto-Transporters, Machine Series

Internal Dimensions (LxWxH)

460x198x29 cm

Total Dimensions (LxWxH)

660x253x168 cm

Tare Weight

1,010 kg

Total Weight (ATM)

3,500 kg

Payload Capacity

2,490 kg

Loading Height

38 cm


12", 5 Studs, 7 Wheels (6 + 1 spare)


3 Axles, With Brakes

Side Material

Galvanized Steel

Floor Material

Phenolic Plywood 18mm

Lashing Rings

6 Hooks

Exterior Lashing Hooks

10 Hooks

Ramp Angle

17 degrees

Other Included Features

13 or 7 Pin Plug, Anti-Slip Tred Plates, Gas Struts On Back Ramp, Jockey Wheel, Parabolic Leaf Springs, Platform For Shovel, Spare Wheel, Strong Tailgate Ramp 130cm

Optional Extras

See More Information

Rough Size In Feet


Optional Extras Available With This Model:

Aluminium floor
Recessed lashing eye, 1 pcs.
LED light
Wheel shock absorbers (all wheels)
Wheel change to 13″ terrain (all wheels)
Wheel change to 14″ high profile (all wheels)
