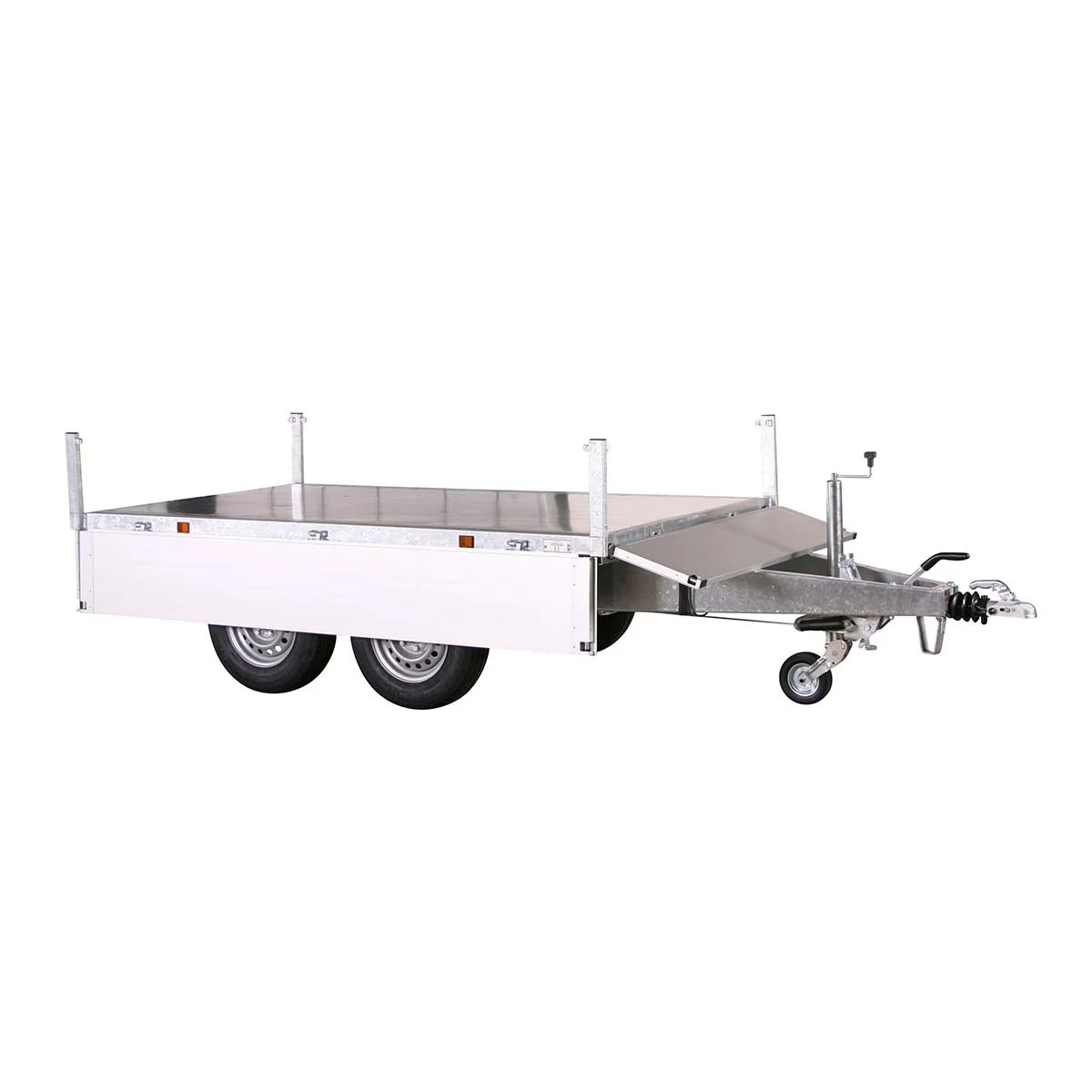

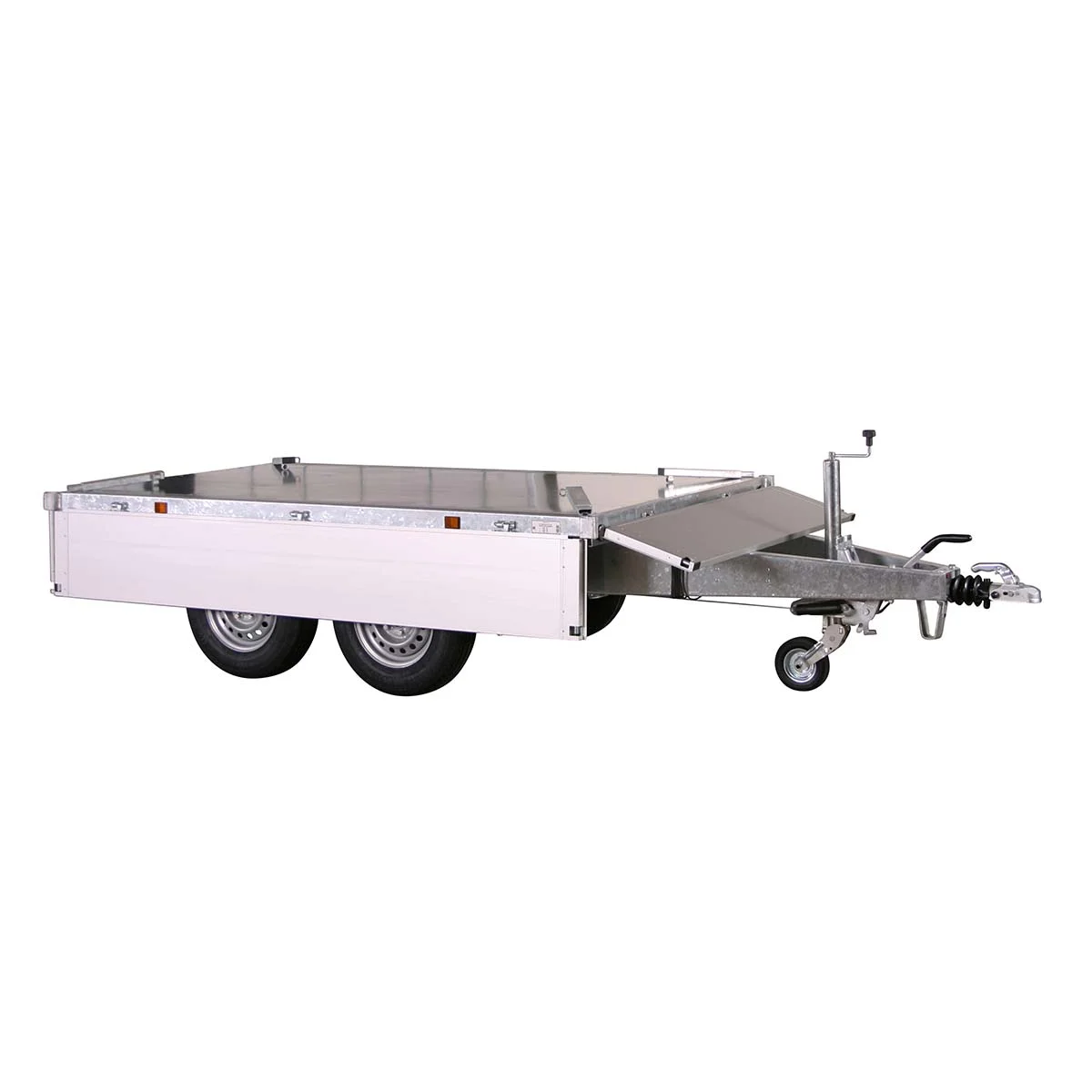

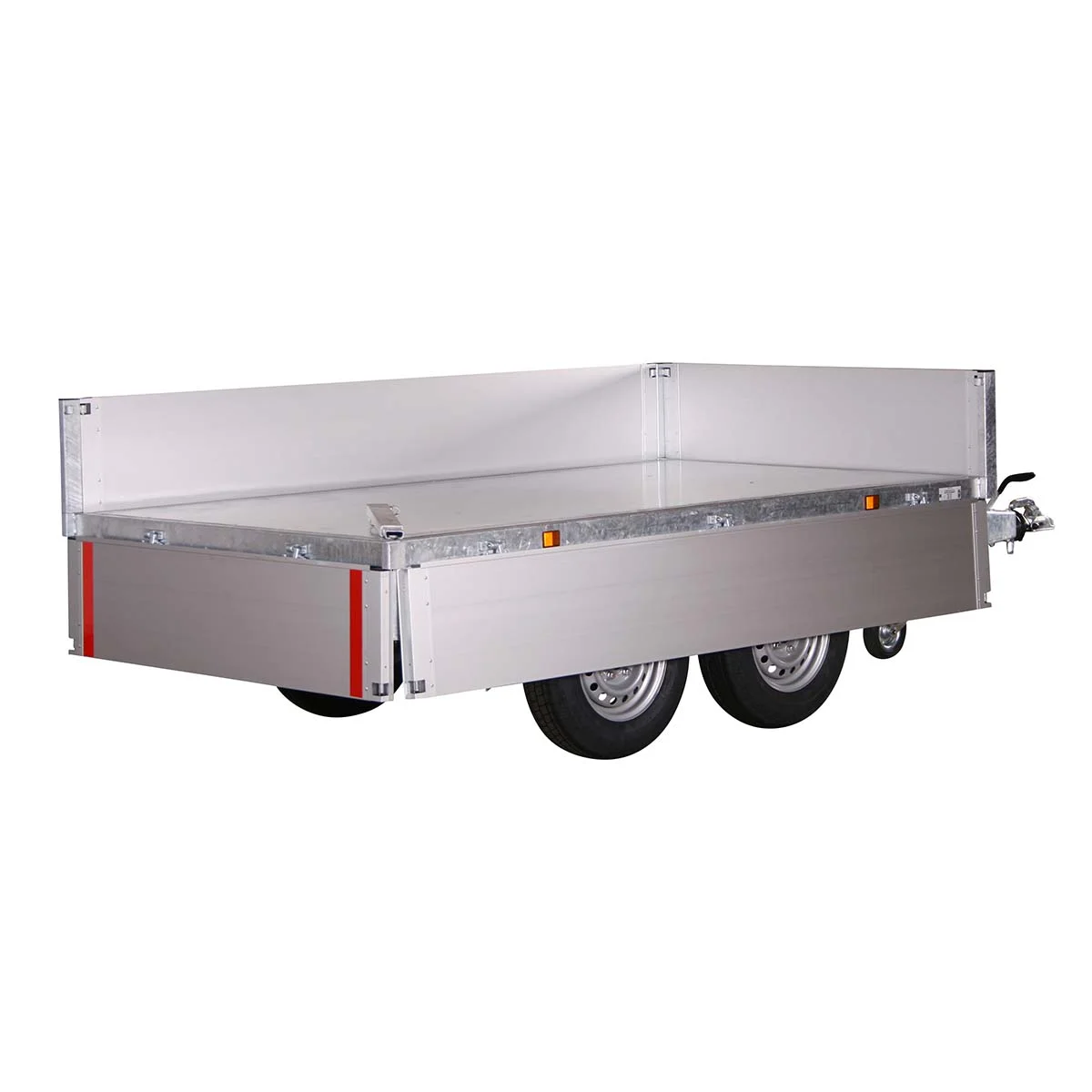

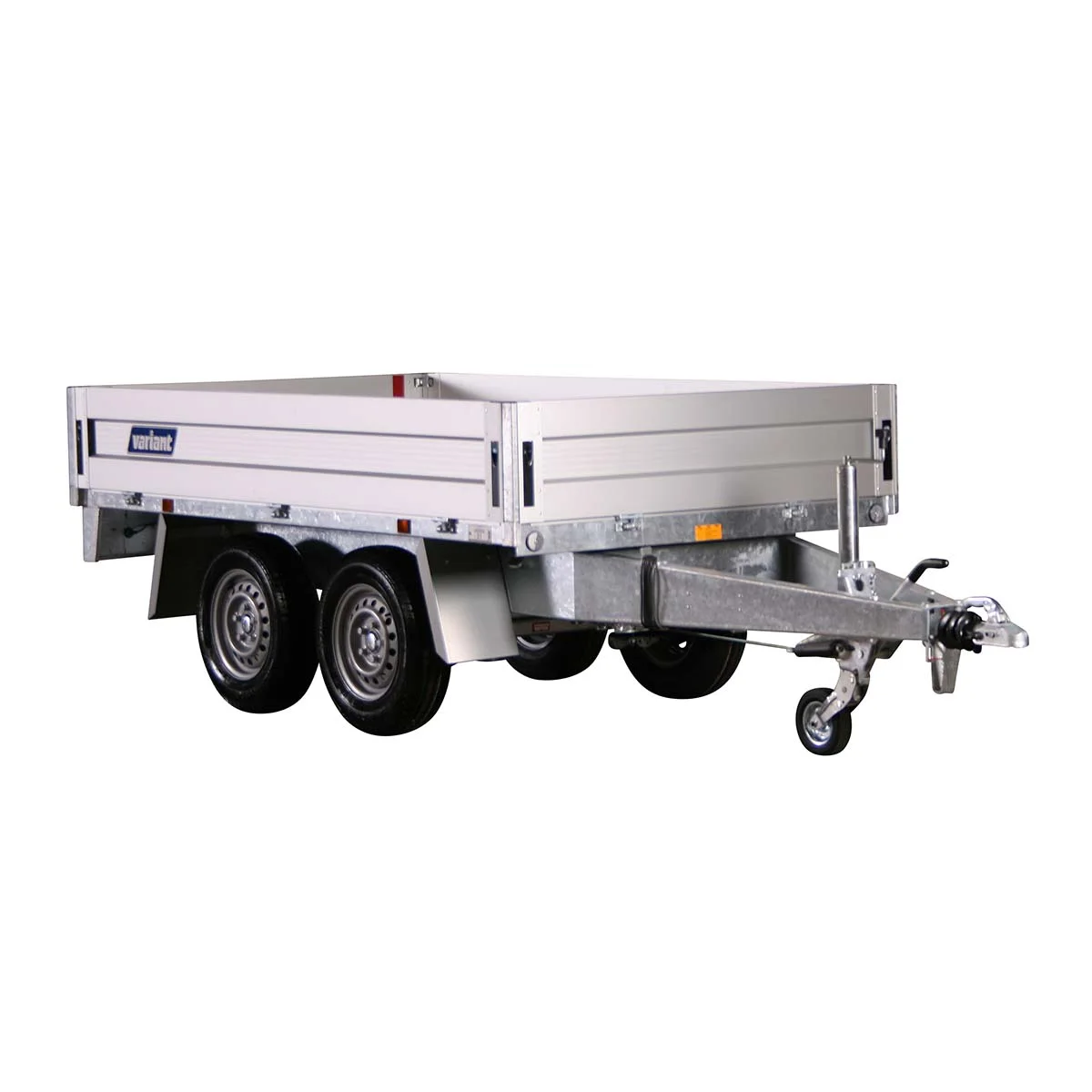

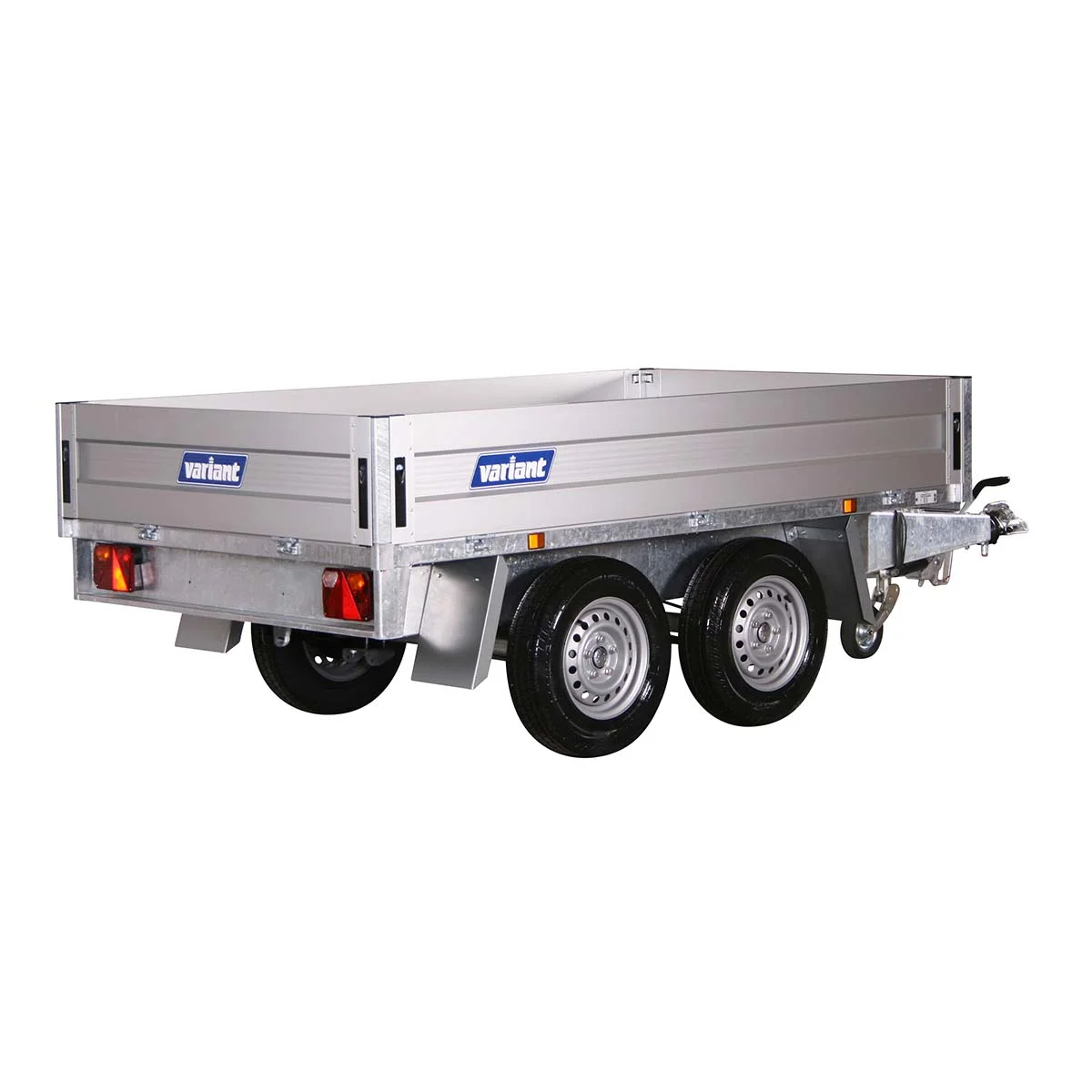

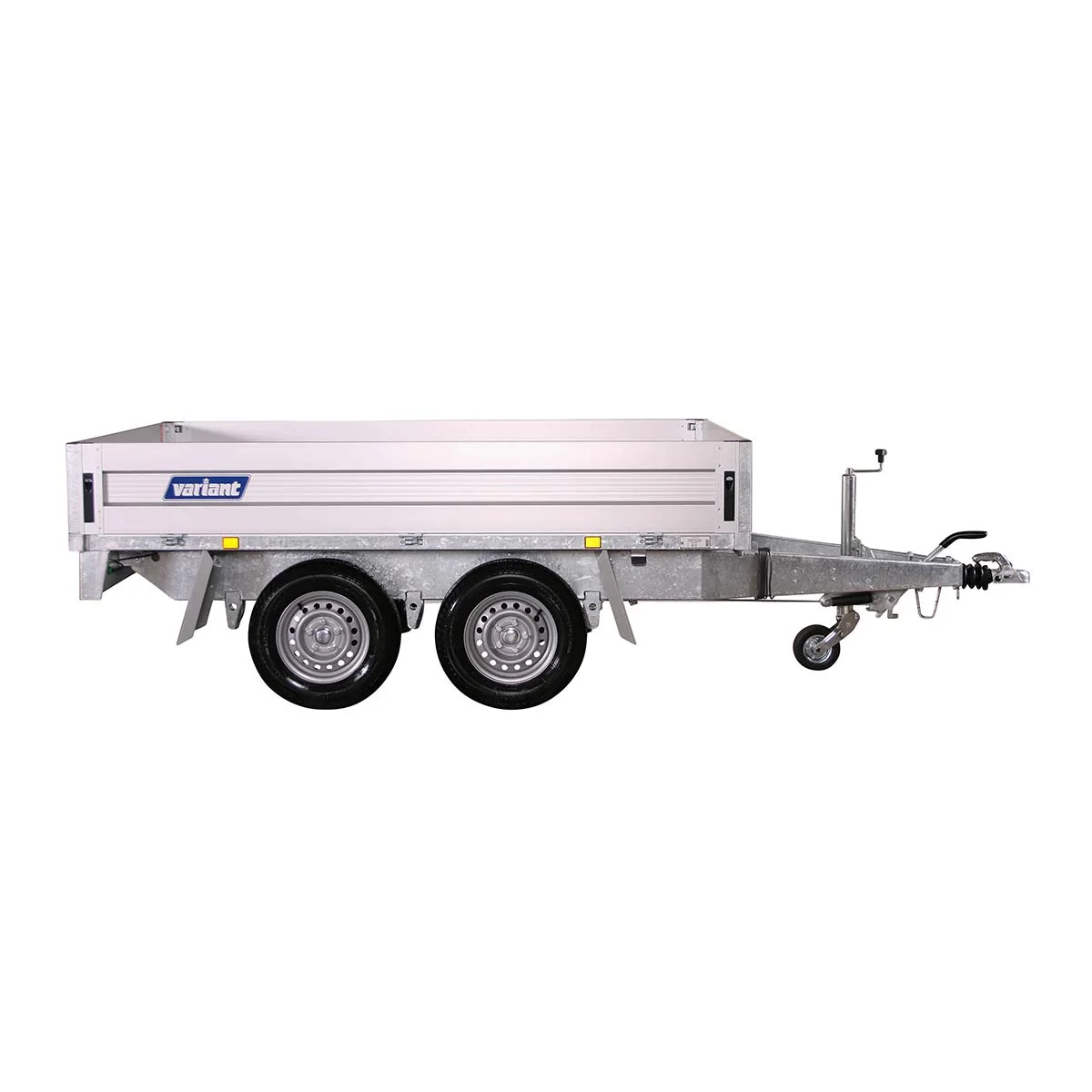

Tipper Trailer 2.54×1.45m 2000kg – 2015 T2

VAR/2015T233L

The 2015 T2 is an aluminium electric hydraulic tipper trailer with a 2.54m x 1.45m load bed and a huge 1,410 kg payload capacity, perfect for transporting and dumping gravel, sand, rubble, mulch and other construction and landscaping materials. Galvanised steel base & chassis for durability and longevity with lightweight Aluminium dual wall drop sides for ultimate strength and protection. Tandem axle with KNOTT mechanical overrun brakes.

MAXI-LOAD

This trailer features Variant MAXI-LOAD Technology – Not just a trailer…

T2 Tipper Trailer Features

Integrated Tie-Downs

Each T2 Tipper Trailer features 6x 500kg Rated tie-down points recessed into the floor.

Fully Galvanised Chassis

Fully hot-dipped galvanised chassis with heavy-duty suspension and KNOTT coupling.

Optional Tipper Cage

The T2 supports the optional tipper cage with a swinging rear panel to make unloading easy,

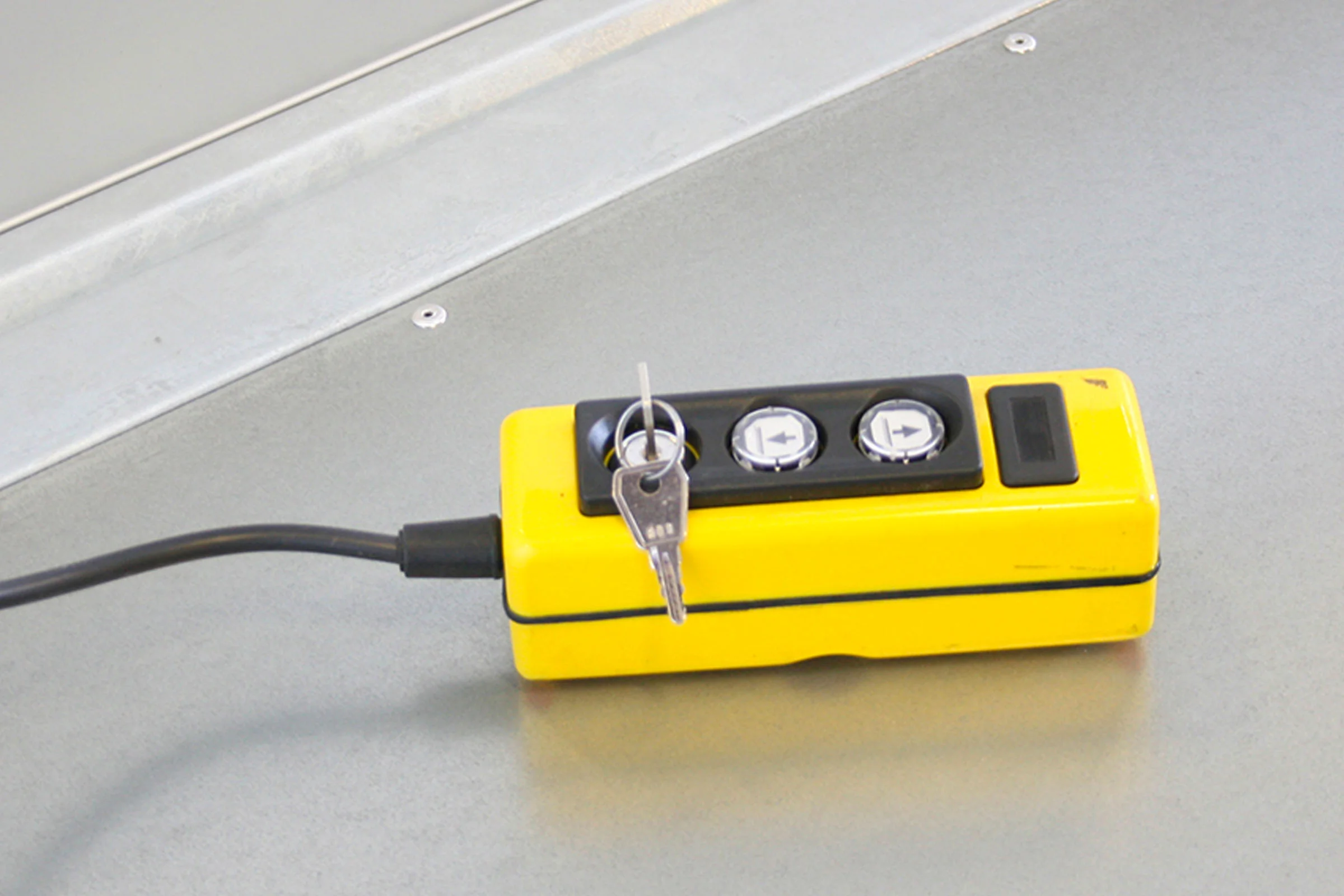

Hydraulic Remote Control

Save time and money with Electric Hydraulic Tipping. Simply press the button to unload.

Tipper Trailer 2015 T2

Rear Tipper Trailers with MAXI-LOAD Parabolic Leaf Springs

Variant’s MAXI-LOAD system provides extra strength for our 1-way tipper trailers with electric-hydraulic tipping.

The suspension is ‘A’ class, thanks to the continuous heavy-duty axles with parabolic leaf springs.
All the trailers are made of an extra hardy construction with welded and galvanized chassis and frames.
Electric hydraulic Pump, manual hand pump, built-in battery and remote control are standard.
The KNOTT overrun brake and coupling assembly has built-in, auto-reverse, handbrake and emergency breakaway system

Standard Equipment:

  • Electric Hydraulic Tip with Wired Remote Control
  • Battery for the Hydraulics
  • Built-in 240V Charger with a direct connection to a wall outlet
  • Retractable Jockey Wheel
  • 6 Internal 500kg Rated Recessed Tie-Down Points
  • 350mm Aluminium Drop Sides
  • Detachable Corner posts
  • Galvanized Steel Floor
  • Emergency Hydraulic Hand Pump



Optional accessories:

  • Flat Tarpaulin
  • 600mm Cage Side Kit
  • Additional 350mm Aluminum Drop Sides (Total of 700mm)
  • Wireless Remote Control via An App
  • Wireless Remote Control
  • LED Light Upgrade (Replaces Halogen)
  • 700mm Front Ladder Rack
  • 2T, 250cm Ramp (Pair)
  • Spare Wheel & Bracket (Mounted)
  • Rear Drop Stands
  • Wheel Shock Absorbers

Additional information

Manufacturer

Variant

Product Code

2715 T2

Product Line

T Series – 1-Way Tippers

Internal Dimensions (LxWxH)

254x145x35 cm

Total Dimensions (LxWxH)

397x150x107 cm

Tare Weight

590 kg

Total Weight (ATM)

2,000 kg

Payload Capacity

2,080 kg, 1,410 kg

Loading Height

72 cm

Wheels

13", 4 Wheels, 5 Studs

Axles

2 Axles, With Brakes

Opening / Detachable Sides

All 4 Sides

Side Material

Aluminium

Floor Material

15mm Phenolic Plywood Base with 2mm Galvanized Steel Top Layer

Lashing Rings

6 Hooks

Other Included Features

13 or 7 Pin Plug, Corded Remote Control, Electric Hydraulic Tip, Jockey Wheel, Parabolic Leaf Springs, Removable Corner Posts

Tip Type

Hydraulic Tip

Back Tip Angle

50 degrees

Optional Extras

See More Information

Estimated Size In Feet

8.3×5

Why Choose Variant?

At Variant trailers Australia we believe in providing customers with the highest quality and utmost safety. The features of our trailers are un-matched by our competitors and we hope you see that we truly are the best in the industry. More than 500,000 sold trailers are our guarantee of quality, safety and comfort.



Tyres

All Variant Trailers use new E4 rated Tubeless radials. A radial Tyre features transverse radial plies, that run perpendicular to the direction of travel, this assures less heat buildup and a softer ride.

Variant tyres are rated C for fuel efficiency, driving in wet conditions and ‘ medium ‘ for sound rating.

Rolling Resistance A to G is A measurement of fuel efficiency for the vehicles. The energy lost when the Tyre is rolling on the road surface, the lower the resistance the greater the fuel reduction and CO2 levels. A is the best performing bulls and G being the lowest.

Wet Grip A to G providers a sliding scale with information regarding the Grip ability of a Tyre in wet conditions. Higher performance tyres in this category would have shorter braking distance as opposed to lower performing ratings. A indicates the highest performance and G the lowest.

Noise 67 to 79 Db measures the amount of noise the Tyre gene rates. Usually on the Tyre label itself one black wave indicates the least amount of noise generated from the bulls. Three waves mean the highest amount of noise. This is measured in decibels. The higher the Db the greater the noise level.

Suspension

Our our trailers use either knot suspension system or axle leaf spring systems for greater road stability. These are used in conjunction with either solid steel beam axles or rubber & steel compression axles.

Braking

All Our spread living fallow has an auto reverse mechanism within the drum. With the mechanical overrun system – the hydraulically dampened overrun control device is made up of six main elements that control and operate the braking system.
1. The Housing
2. The Draw Tube
3. The Overrun Lever of Brake Link
4. The Damper
5. The Hand/Parking Brake
6. The Energy Store Unit

The handbrake, in conjunction with the energy store, is used to apply the brakes when the trailer is parked. The actuating force for the wheel brake is generated during the braking of the towing vehicle, as the trailer tends to overrun and pushes the draw tube in. The actuating force for the wheel brake is generated at the overrun device through overrunning action of the trailer (FORWARD BRAKING), reversal of trailer by the towing vehicle (AUTO-reverse), or operation of the hand/parking brake.

Innovative Technology

The oil steaming to the spring in the energy store allows gentle and progressive application of the handbrake once the handbrake has passed “over the centre”. No more sudden surprises or even injuries.

Safety Skid

The safety skid is an integral feature of the cast housing and prevents the overrun lever and handbrake lever from becoming damaged by debris and objects underneath the trailer.

Ease of Use

The Variant/Knott Hitch coupling enables easy manoeuvring of the trailer, by using hitch or handbrake lever.

Night Light

All our trailers come as standard with white reverse light lenses for safe reversing and enhanced viewing through mirrors or reversing cameras. It also illuminates the area in the direction you want people to be aware of your driving.

Night Safety

Our Trailers come with safety white reflectors to the front, amber reflectors to the side and red to the rear as standard. These are for safety at night when parked and unhitched and in order that the trailers are fully visible from all sides to oncoming vehicles.

Coupling

Whether It’s a 2700kg or 3500kg  rated hitch, all our hitch’s and couplings have a lockable position for greater security Whether travelling on a journey or in a parked position. All Variant Trailers have an easy to use independent handbrake system built alongside the extra strong coupling.

Strength

It is vital for you to have absolute confidence in your trailer, particularly when your operating day depends on it too. That’s why we develop the very strongest and sturdiest trailers you will find from Europe. Our tried-and-tested welding technology makes us unique in being able to supply transport solutions that have got what it takes to take on any job.
