Manufacturer | Variant |
---|---|
Product Code | 3017 TB |
Series | 3-Way Tip Series, Tipper Trailers |
Internal Dimensions (LxWxH) | 320x168x35 |
Total Dimensions (LxWxH) | 475x186x120 cm |
Tare Weight | 880 kg |
Total Weight (ATM) | 3,000 kg |
Payload Capacity | 2,120 kg |
Loading Height | 72 cm |
Wheels | 13", 4 Wheels, 5 Studs |
Axles | 2 Axles, With Brakes |
Opening / Detachable Sides | All 4 Sides |
Side Material | Aluminium |
Floor Material | Hot Dipped Galvanised Steel |
Lashing Rings | 6 Hooks |
Other Included Features | Corded Remote Control, Electric Hydraulic Tip, Jockey Wheel, Manual Emergency Pump, Parabolic Leaf Springs, Ramp Drawers, Wireless Operation Via Phone App |
Tip Type | Hydraulic Tip |
Back Tip Angle | 45 degrees |
Side Tip Angle | 47 degrees |
Optional Extras | See More Information |
Rough Size In Feet | 11×6 |

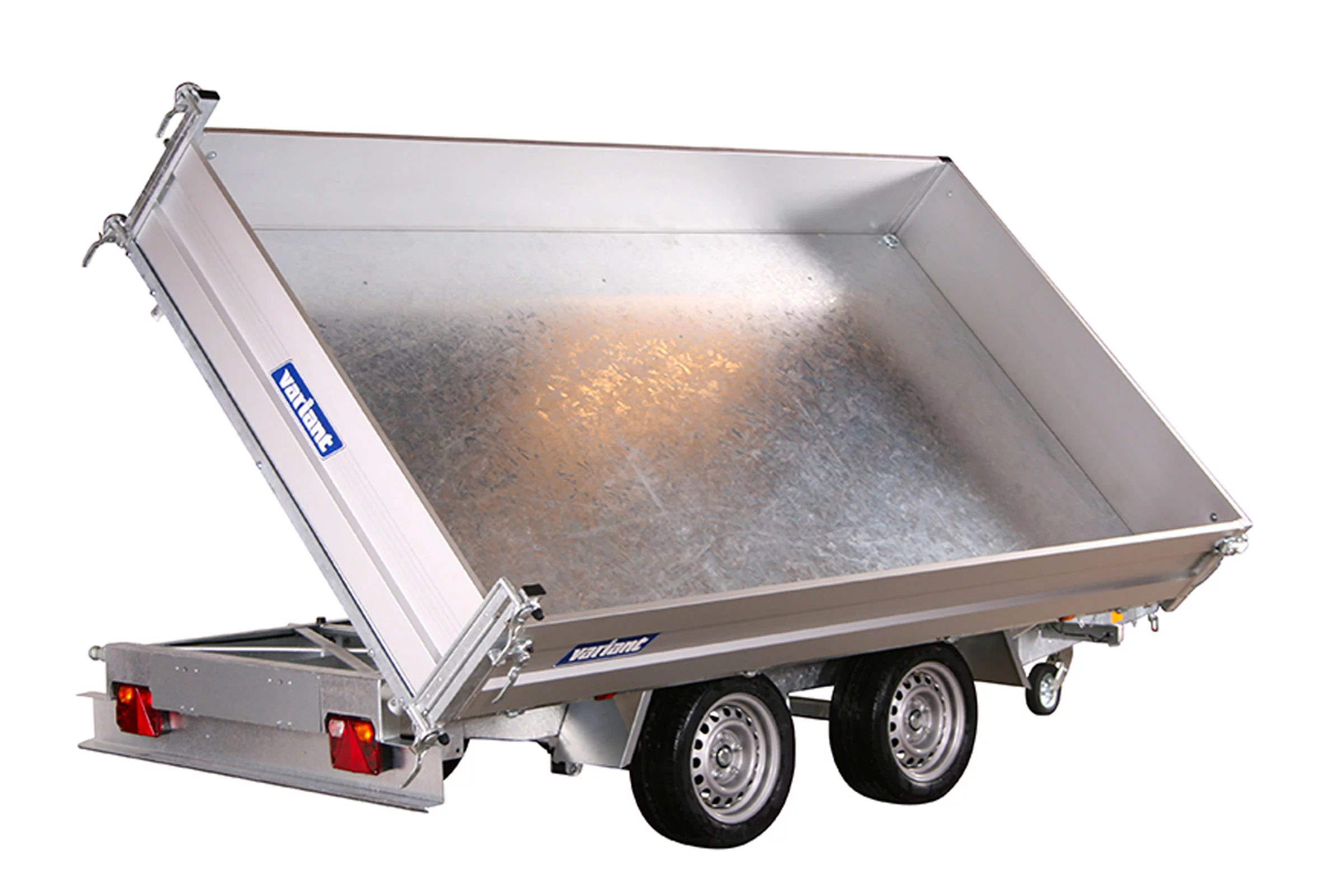

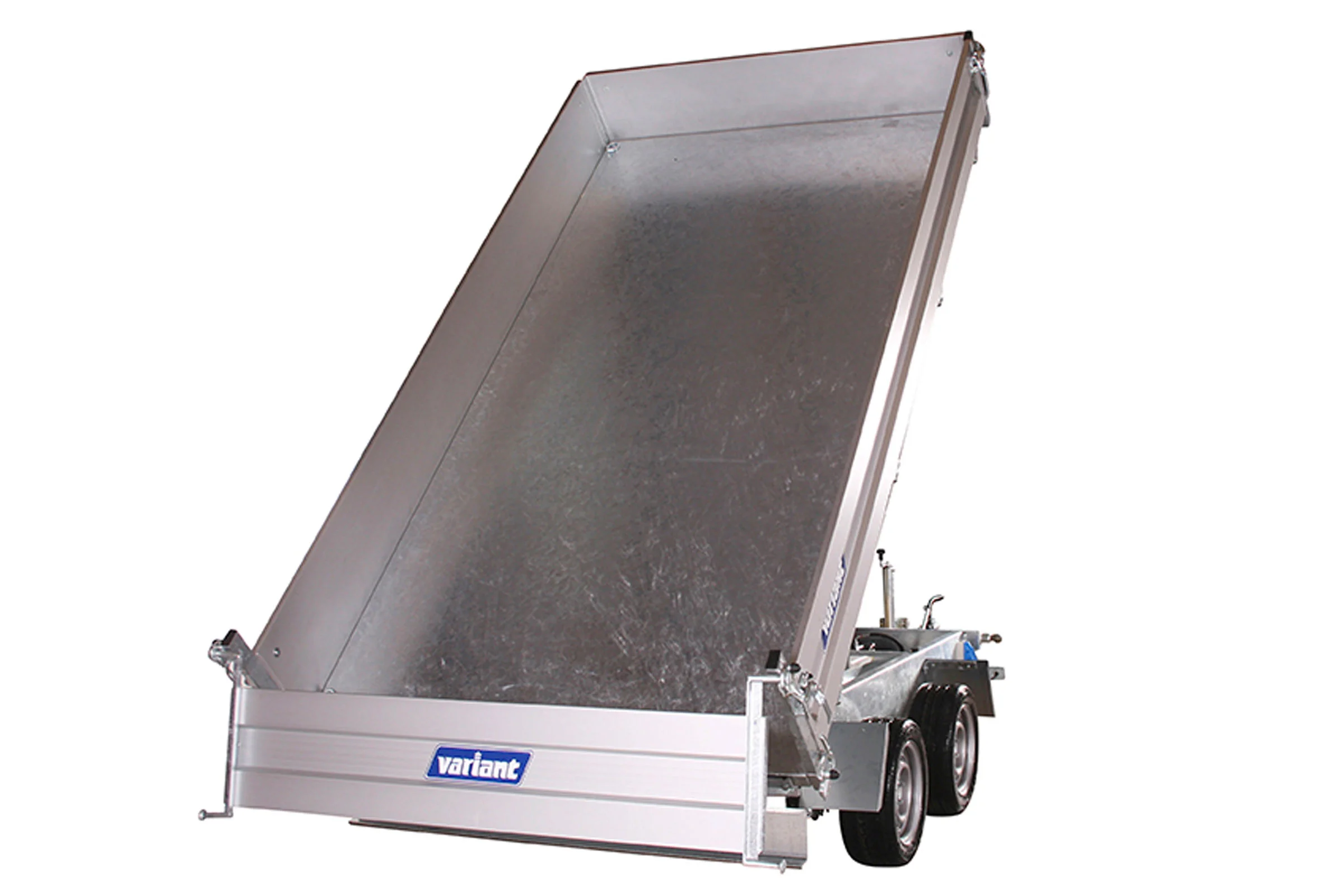

Tipper Trailer 3017 TB 3.25×1.73m

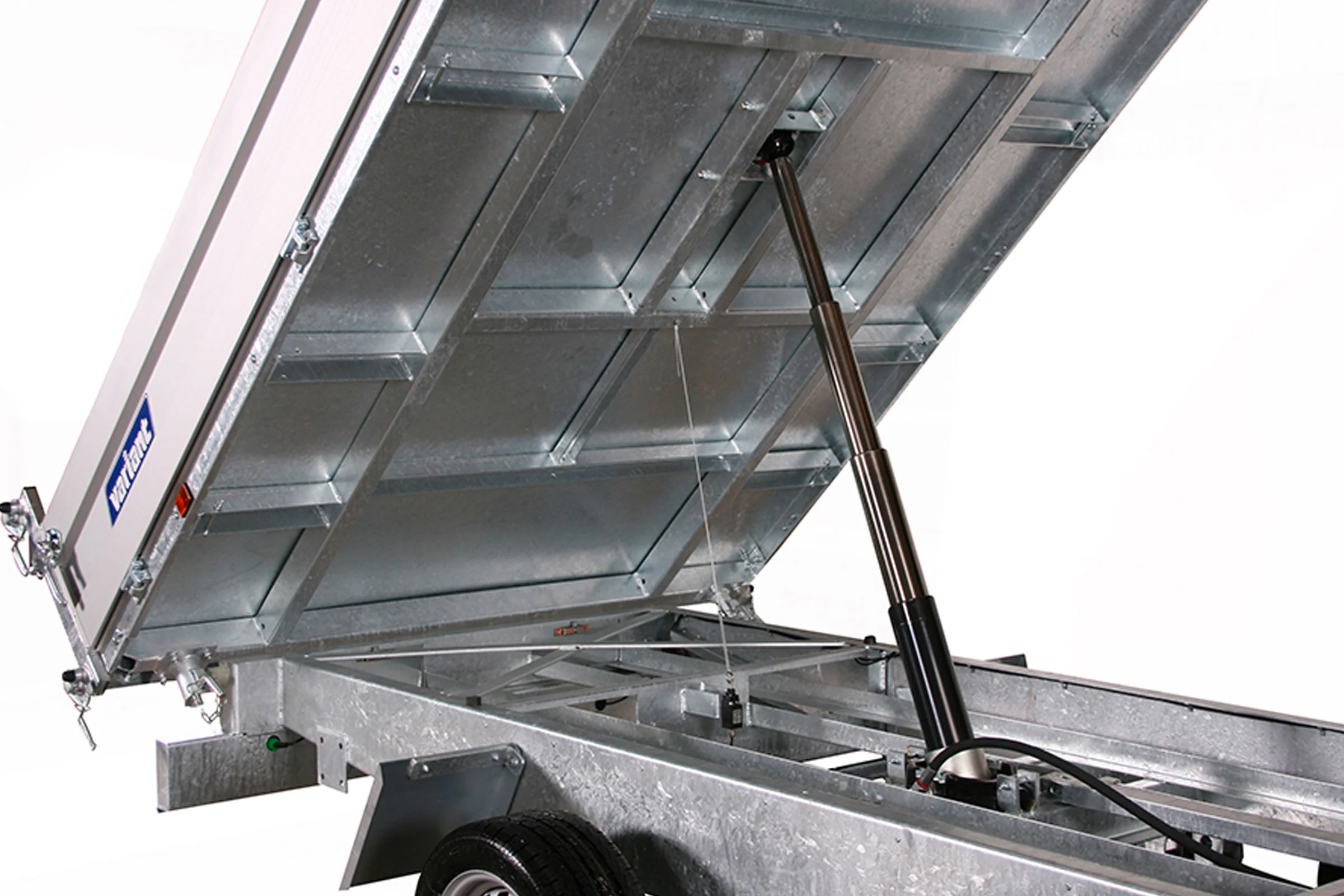

Tandem aluminium electric hydraulic three-way tipper trailer. 3.2 m long box and 2,120 kg payload capacity, perfect for transporting and dumping gravel, sand, rubble and other construction materials. Hot dipped Galvanised steel base & chassis for durability and longevity. Dual axles with mechanical overrun brakes.
For specs, see “Product Information”
Contact us to order now!
Optional Extras Available With This Model:
Flat tarpaulin |
Trailer net |
Extra dropsides – 35 cm |
Plate side – 60 cm |
Plate side – 100 cm |
Net grid – 60 cm |
Net grid- 100 cm |
Flat tarpaulin for extra drop sides/net grid |
Front stand – 70 cm |
Toolbox, mounted below the floor |
Dropstand, 2 pcs. |
Standard spare wheel with bracket |
Electric – tip with app control |
Electric – tip with wireless control |
LED light |
Wheel shock absorbers (all wheels) |
Wheel change to 13″ terrain (all wheels) |
Wheel change to 14″ high profile (all wheels) |
Ramps 4 t/250 cm |
