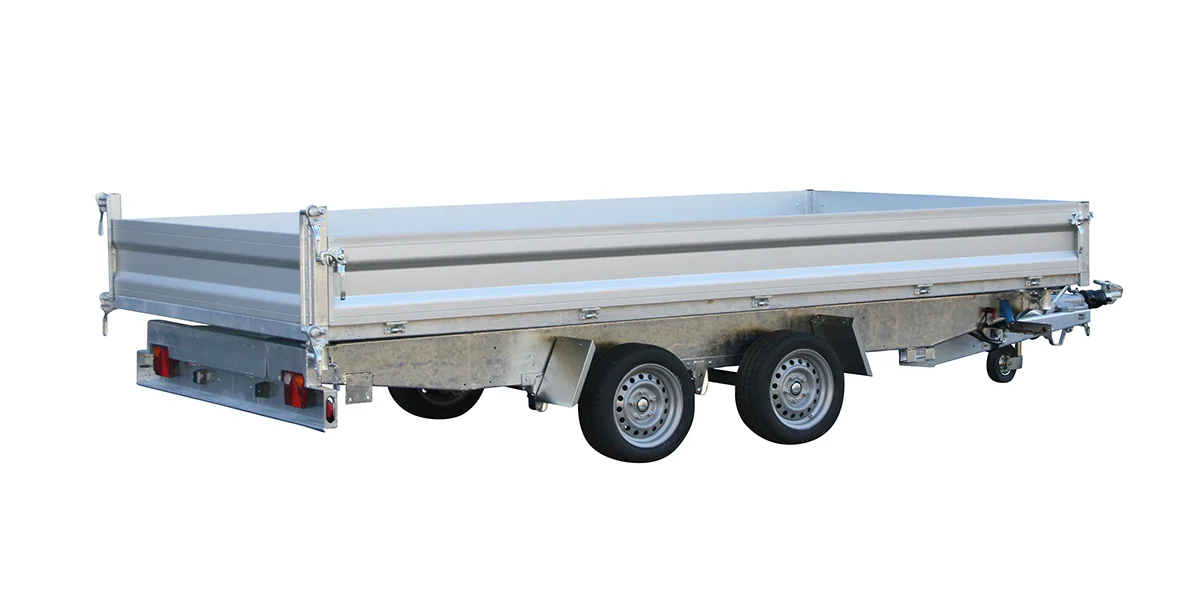

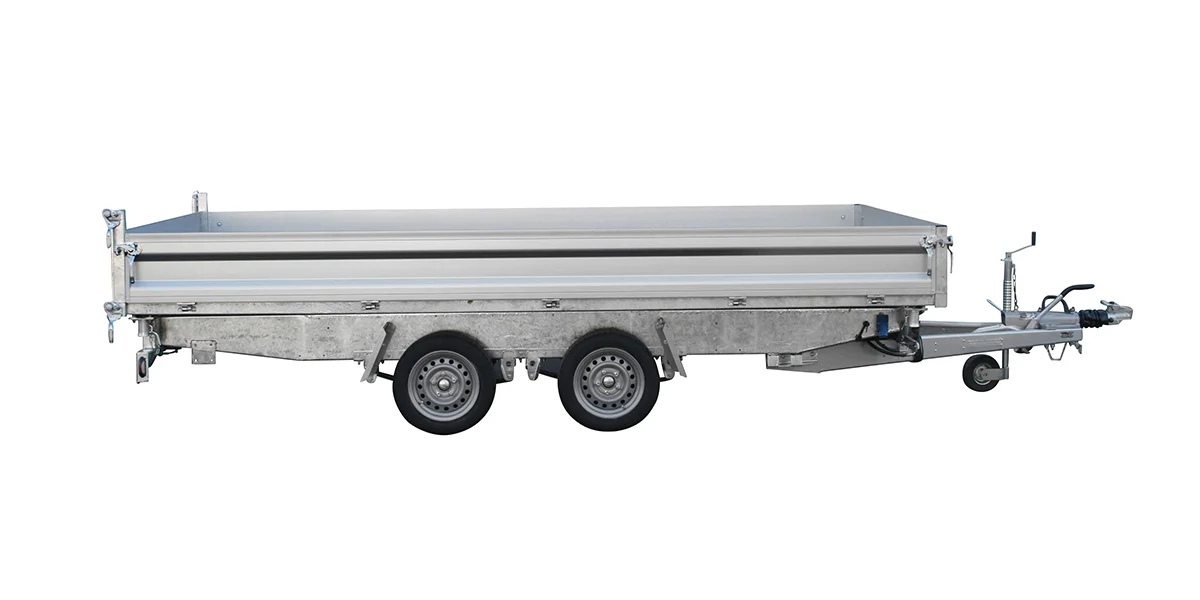

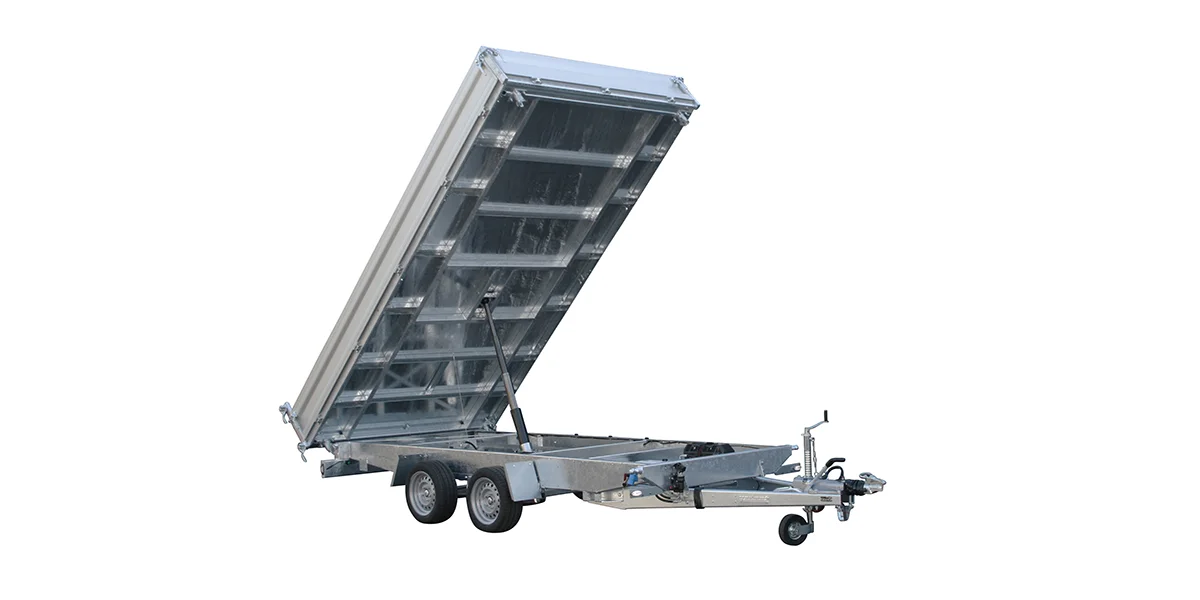

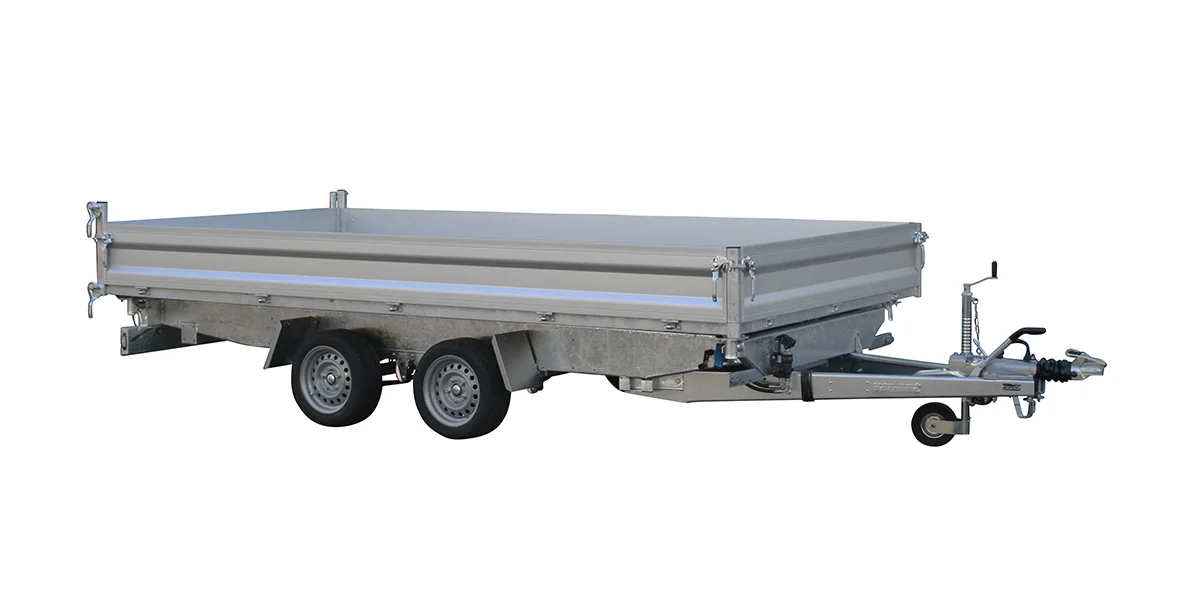

Tipper Trailer 3521 TB 4.19×2.15m

Tandem aluminium electric hydraulic three-way tipper trailer. 4.14 m long box and 2,344 kg payload capacity, perfect for transporting and dumping gravel, sand, rubble and other construction materials. Hot dipped galvanised steel base & chassis for durability and longevity. Dual axles with mechanical overrun brakes.

For Specs, see “Product Information ”

Contact us to order now!



Product Code

3521 TB


3-Way Tip Series, Tipper Trailers

Internal Dimensions (LxWxH)

414x210x35 cm

Total Dimensions (LxWxH)

560x225x118 cm

Tare Weight

1,156 kg

Total Weight (ATM)

3,500 kg

Payload Capacity

2,344 kg

Loading Height

71 cm


13", 4 Wheels, 5 Studs


2 Axles, With Brakes

Opening / Detachable Sides

All 4 Sides

Side Material


Floor Material

Hot Dipped Galvanised Steel

Lashing Rings

8 Hooks

Other Included Features

Ball Coupling With Inbuilt Lock, Corded Remote Control, Detachable Corner Posts, Electric Hydraulic Tip, Jockey Wheel, Manual Emergency Pump, Parabolic Leaf Springs, Ramp Drawers

Tip Type

Hydraulic Tip

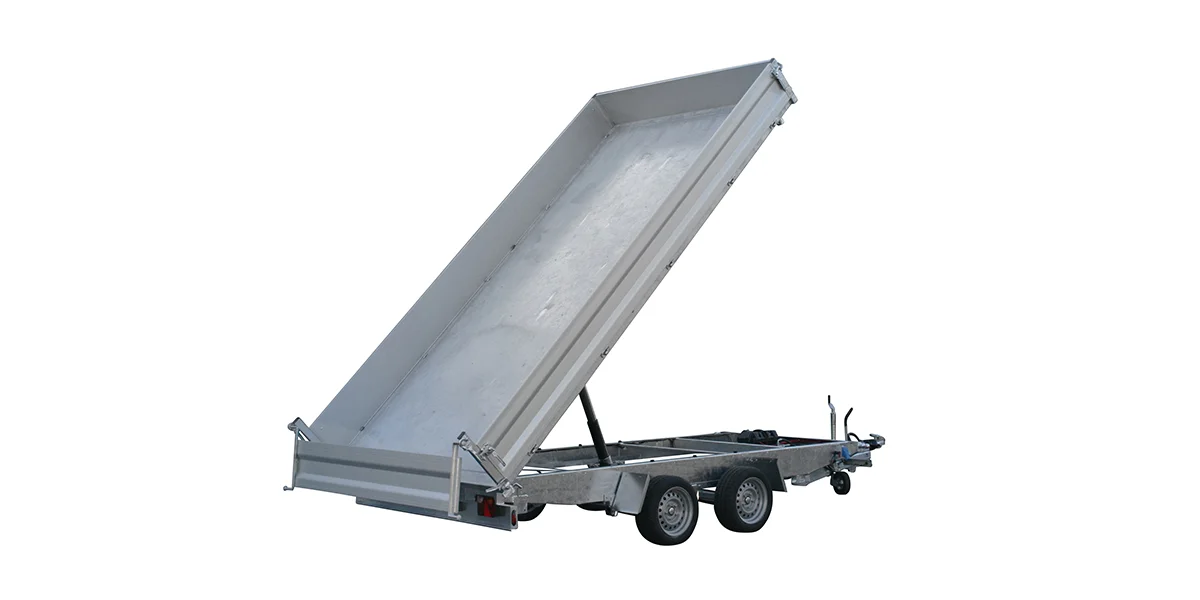

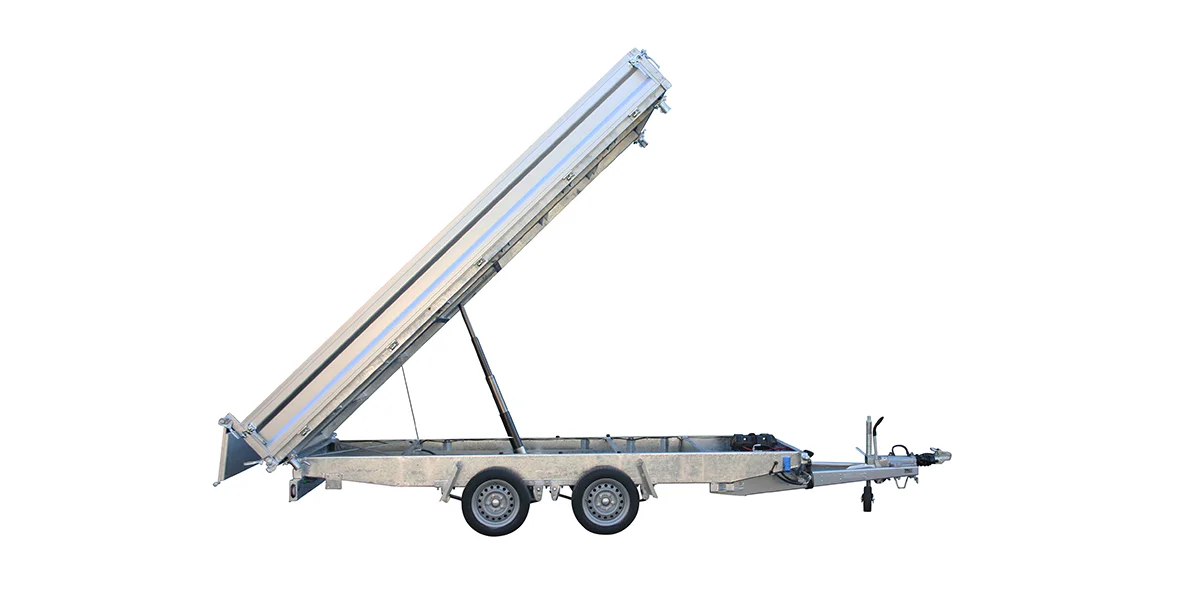

Back Tip Angle

44 degrees

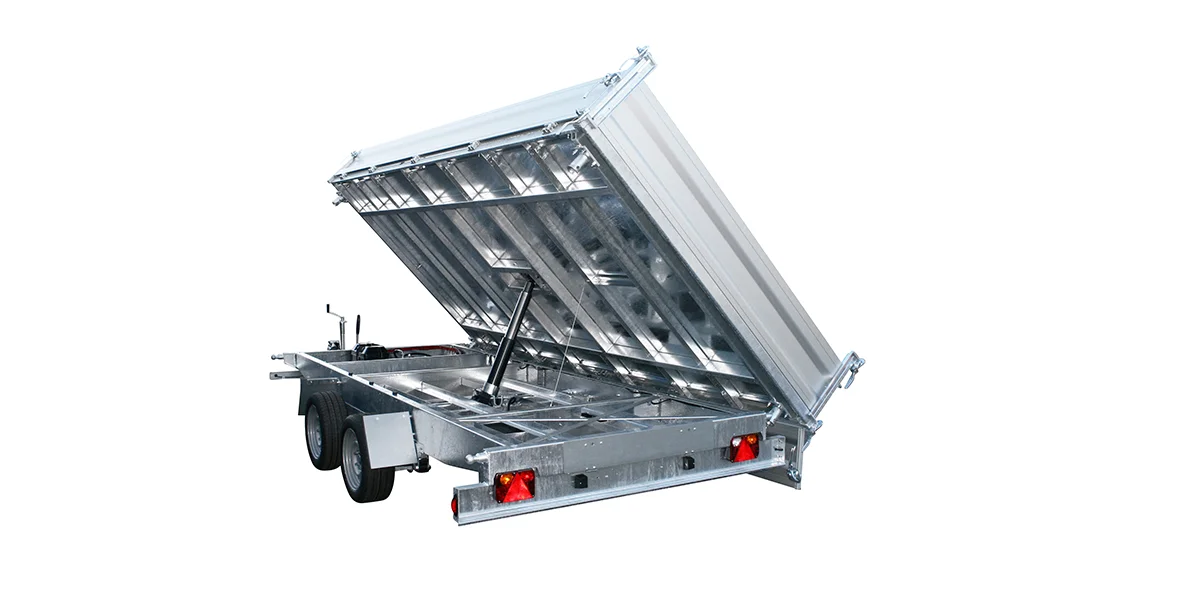

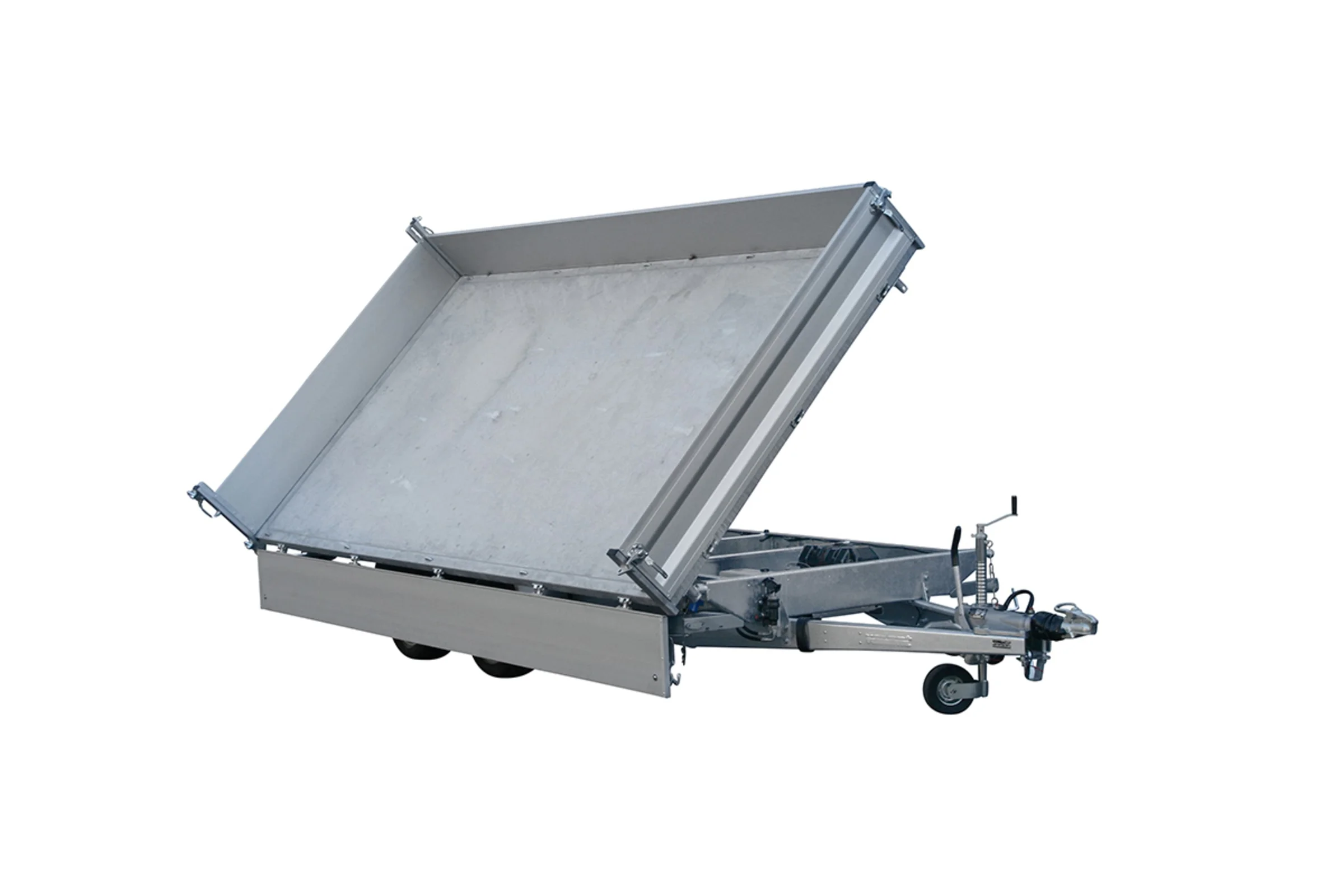

Side Tip Angle

53 degrees

Optional Extras

See More Information

Rough Size In Feet


Optional Extras Available With This Model:

Flat tarpaulin
Trailer net
Extra dropsides – 35 cm
Plate side – 60 cm
Plate side – 100 cm
Net grid – 60 cm
Net grid- 100 cm
Flat tarpaulin for extra drop sides/net grid
Front stand – 70 cm
Toolbox, mounted below the floor
Dropstand, 2 pcs.
Standard spare wheel with bracket
Additional price el- tip with app control
Additional price el- tip with wireless control
LED light
Wheel shock absorbers (all wheels)
Wheel change to 13″ terrain (all wheels)
Wheel change to 14″ high profile (all wheels)
Ramps 4 t/250 cm
