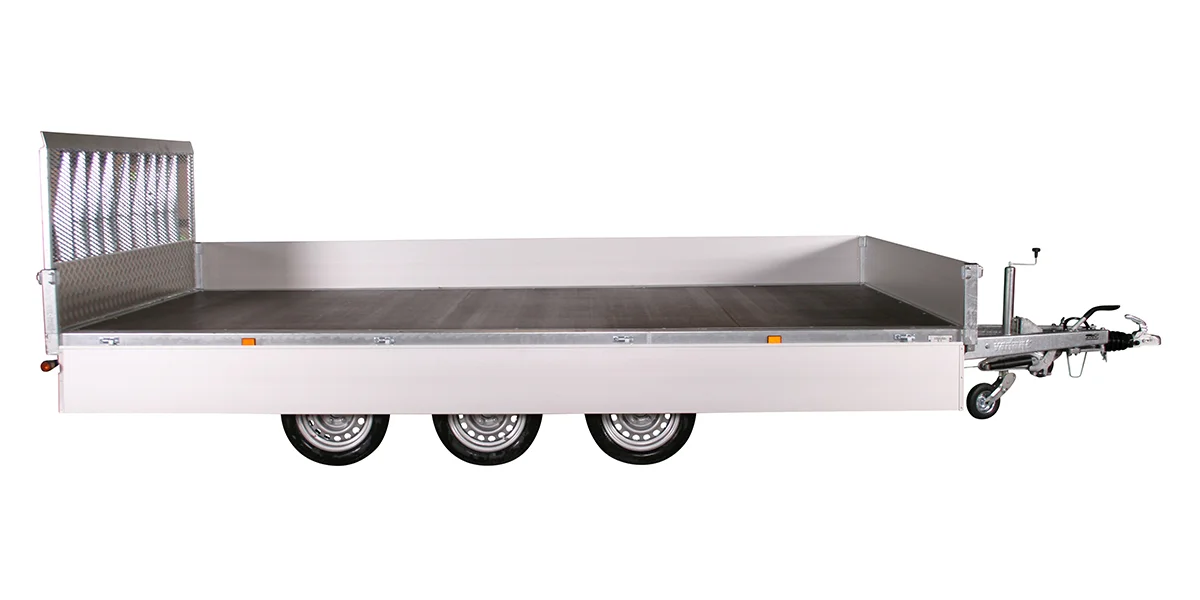

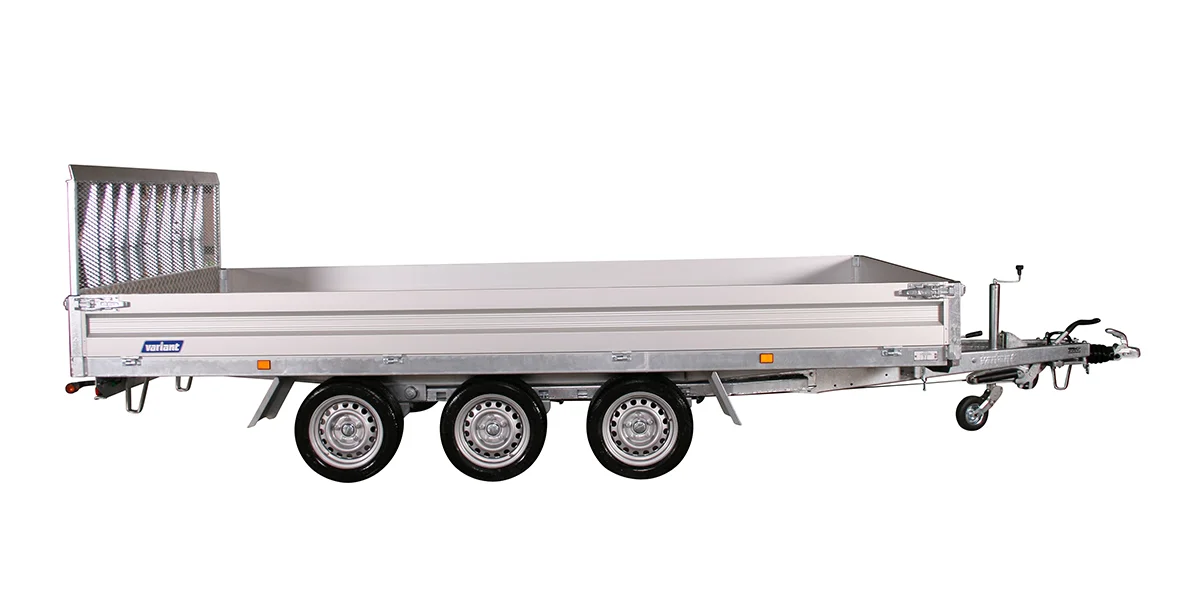

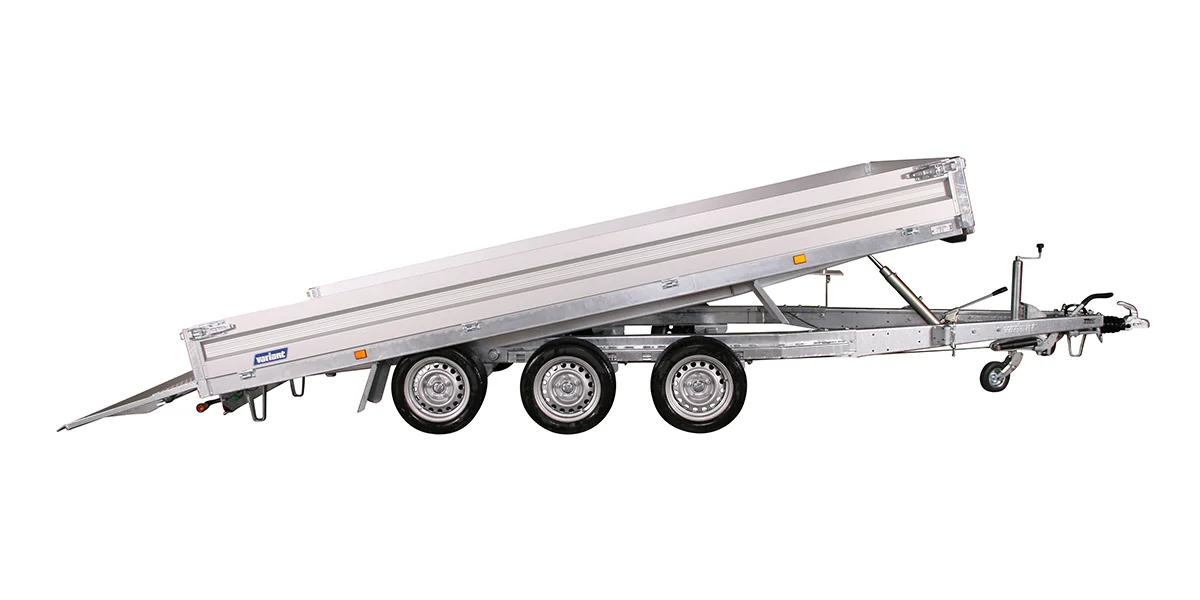

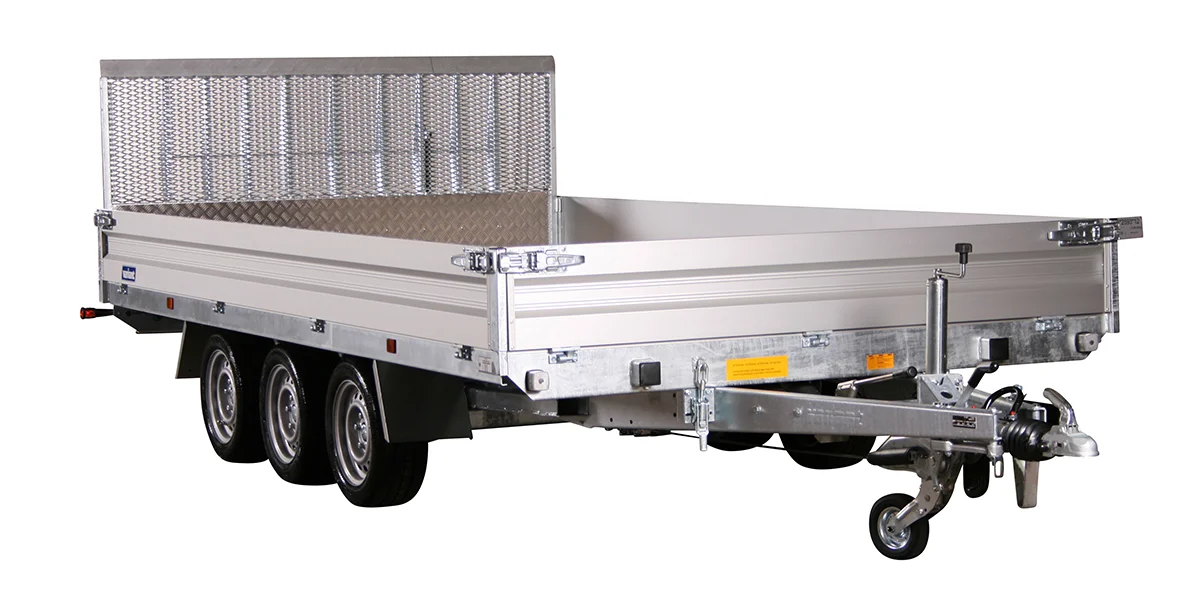

Universal Trailer 3543 UX 4.25×2.15m

NEW MAXI LOAD Universal Trailer

The NEW Variant Universal UX trailers are part of the Maxi-Load series, feature a fully welded – bolted hot-dip galvanised chassis with extremely high strength, Parabolic leaf springs ensuring superb suspension and top-class driving characteristics, whilst carrying heavy loads. The total weight- 3500kg with payload up to 2528kg, three axles and Knott mechanical overrun braking.

Only 3 axle European trailers certified up to 3.5 tonne in Australia!

For Specs, see “Product Information ”

Contact us to order now!



Product Code

3543 UX


Auto-Transporters, Commercial Box Trailers, Maxi-Load, Tipper Trailers, Universal Series

Internal Dimensions (LxWxH)

420x210x30 cm

Total Dimensions (LxWxH)

573x220x159 cm

Tare Weight

972 kg

Total Weight (ATM)

3,500 kg

Payload Capacity

2528 kg

Loading Height

65 cm


13", 5 Studs, 6 Wheels

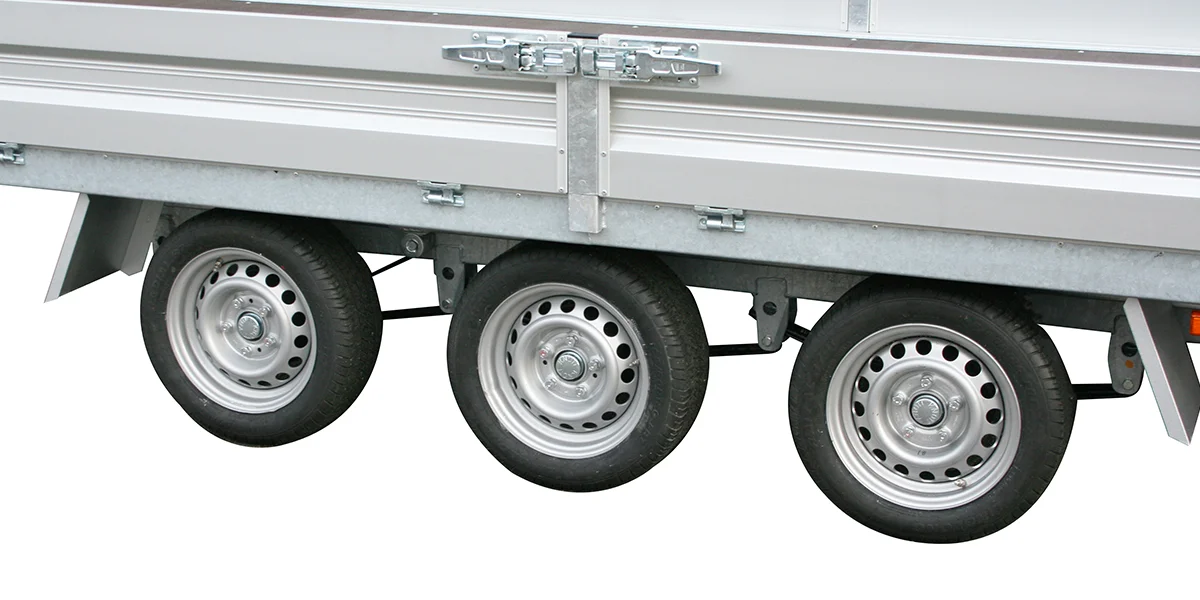

3 Axles, With Brakes

Opening / Detachable Sides

All 4 Sides

Side Material


Floor Material

Phenolic Plywood 18mm

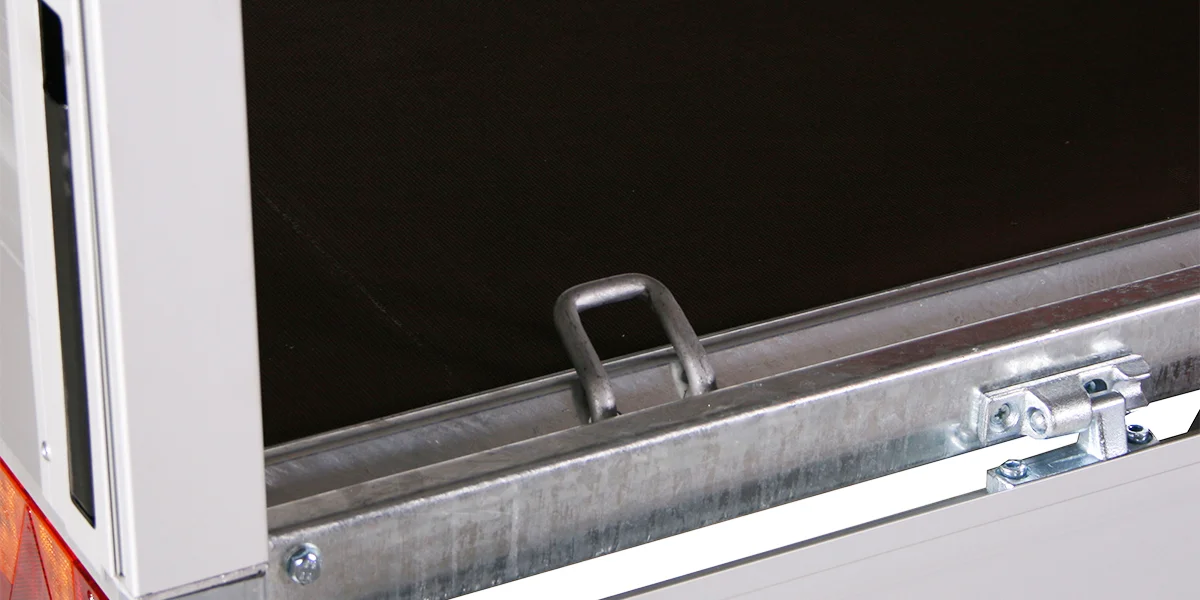

Lashing Rings

8 Hooks

Other Included Features

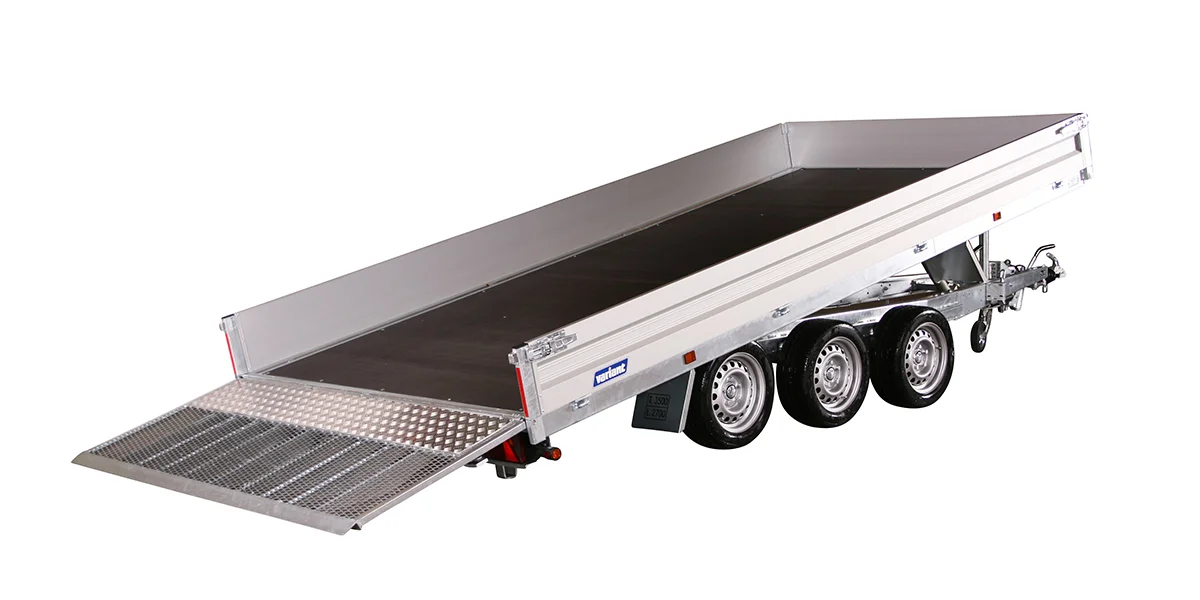

13 or 7 Pin Plug, Ball Coupling With Inbuilt Lock, Detachable Corner Posts, Gas Struts On Back Ramp, Nose Wheel With Tilt, Parabolic Leaf Springs, Powerful Rear Ramp 90cm

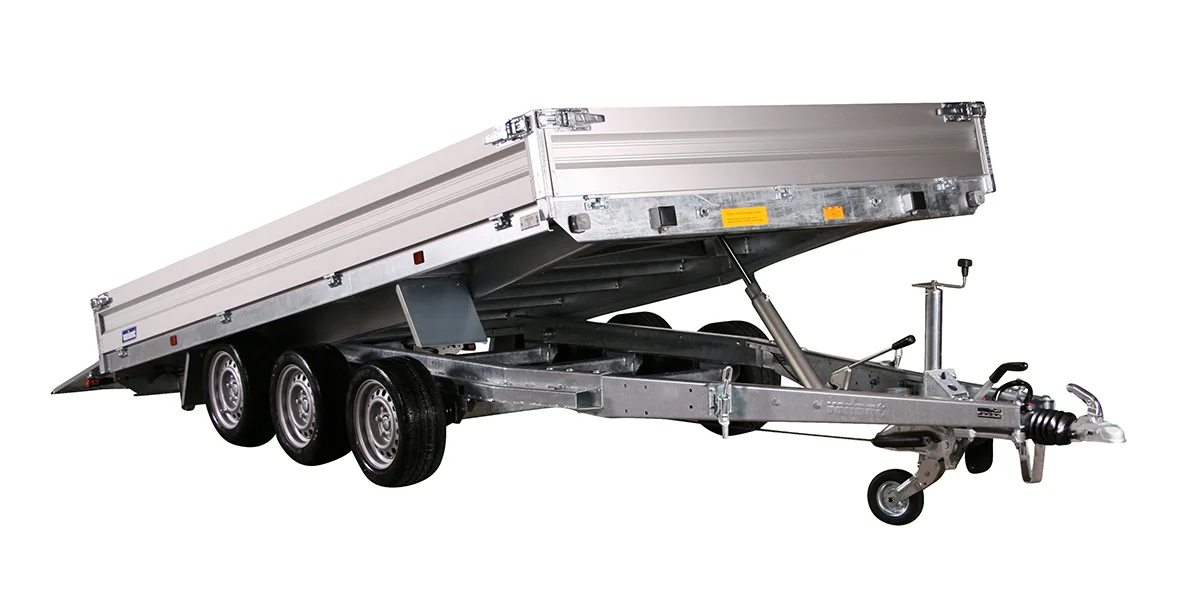

Tip Type

Hydraulic Tip

Back Tip Angle

12 degrees

Optional Extras

See More Information

Rough Size In Feet

18 x 7.1

Optional Extras Available With This Model:

Extra dropsides – 30 cm
High tarpaulin – 175 cm
Front stand – 70 cm

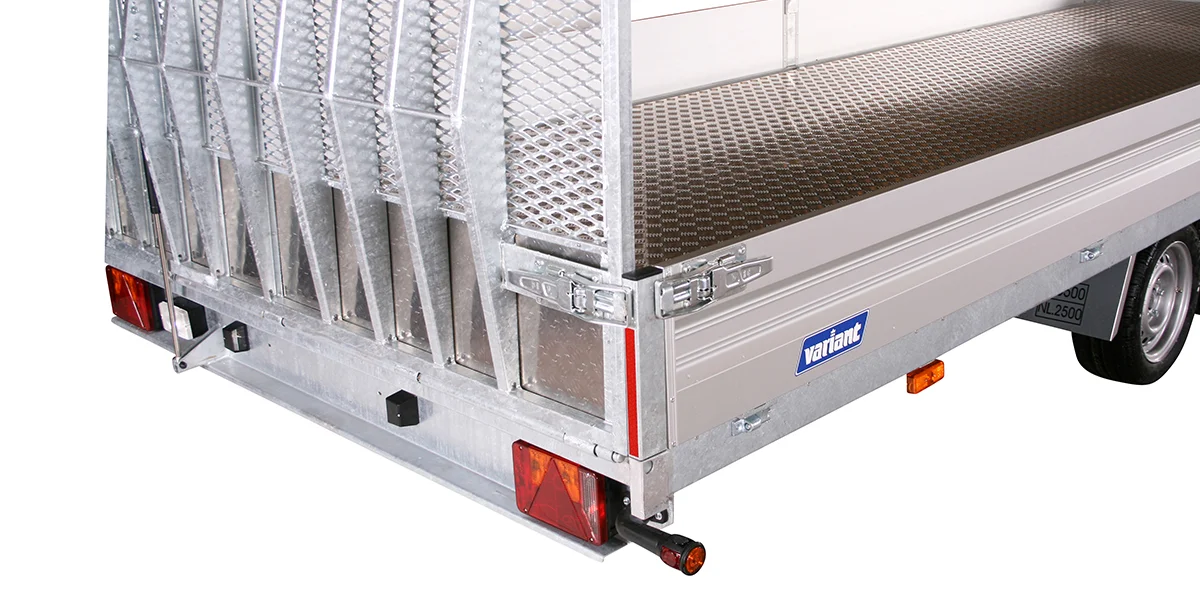

Aluminium floor
Toolbox, mounted below the floor
Standard spare wheel with bracket
Electric tip with cable
Electric tip with app control
Electric tip with wireless control
Winch with wire and removable console
Electric winch with wire and removable console
LED light
Wheel shock absorbers (all wheels)
