| Manufacturer | Variant |
|---|---|
| Product Code | 3553 UX |
| Series | Auto-Transporters, Commercial Box Trailers, Maxi-Load, Tipper Trailers, Universal Series |
| Internal Dimensions (LxWxH) | 520x210x30 cm |
| Total Dimensions (LxWxH) | 673x220x159 cm |
| Tare Weight | 1,072 kg |
| Total Weight (ATM) | 3,500 kg |
| Payload Capacity | 2,428 kg |
| Loading Height | 65 cm |
| Wheels | 13", 5 Studs, 6 Wheels |
| Axles | 3 Axles, With Brakes |

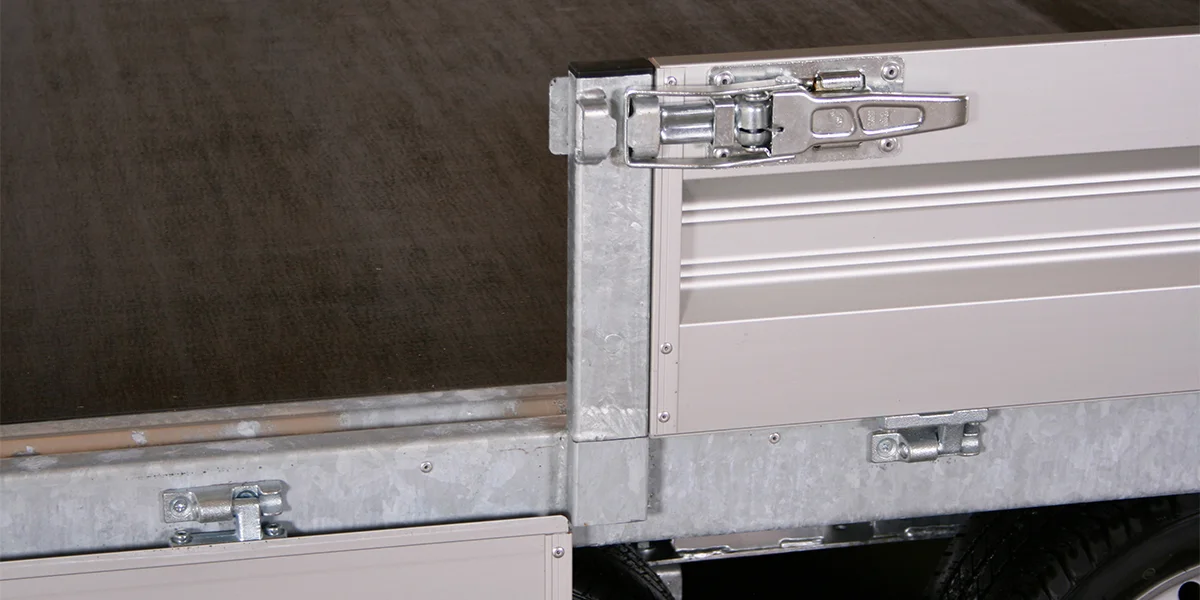

| Opening / Detachable Sides | All 4 Sides |
| Side Material | Aluminium |
| Floor Material | Phenolic Plywood 18mm |
| Lashing Rings | 8 Hooks |
| Other Included Features | 13 or 7 Pin Plug, Ball Coupling With Inbuilt Lock, Detachable Corner Posts, Gas Struts On Back Ramp, Nose Wheel With Tilt, Parabolic Leaf Springs, Powerful Rear Ramp 90cm |

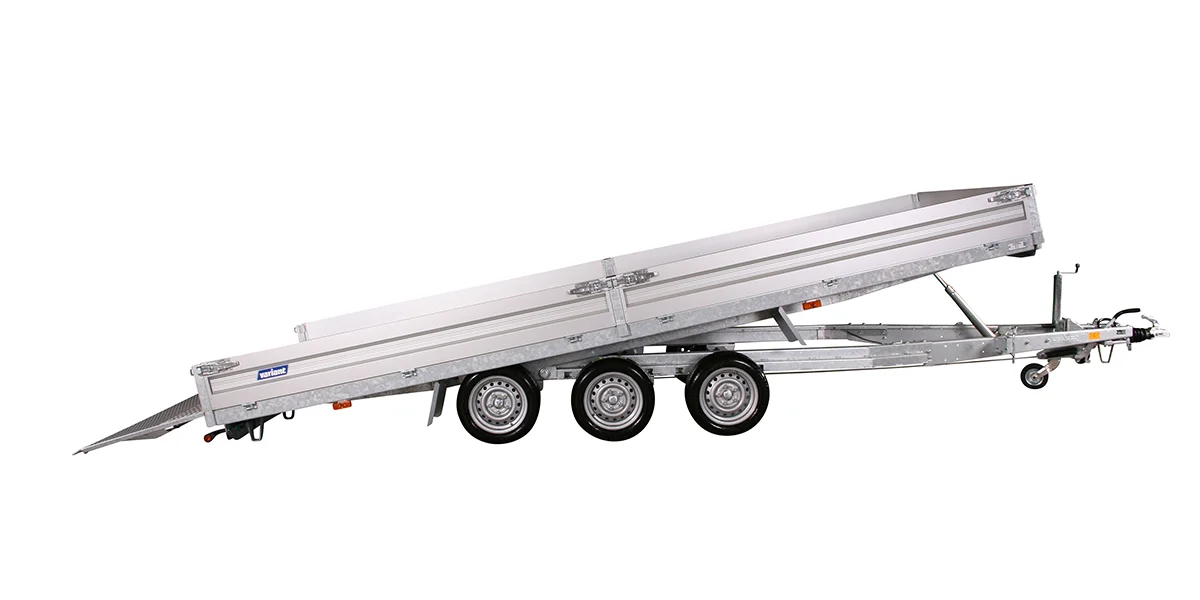

| Tip Type | Hydraulic Tip |
| Back Tip Angle | 11 degrees |
| Optional Extras | See More Information |
| Rough Size In Feet | 22 x 7.2 |

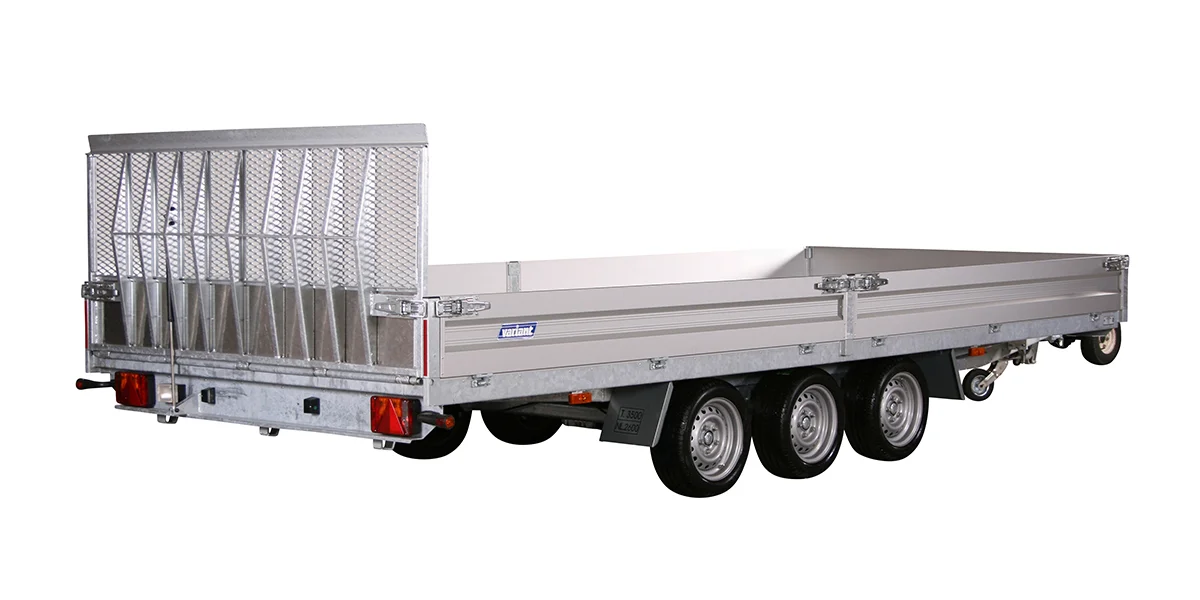

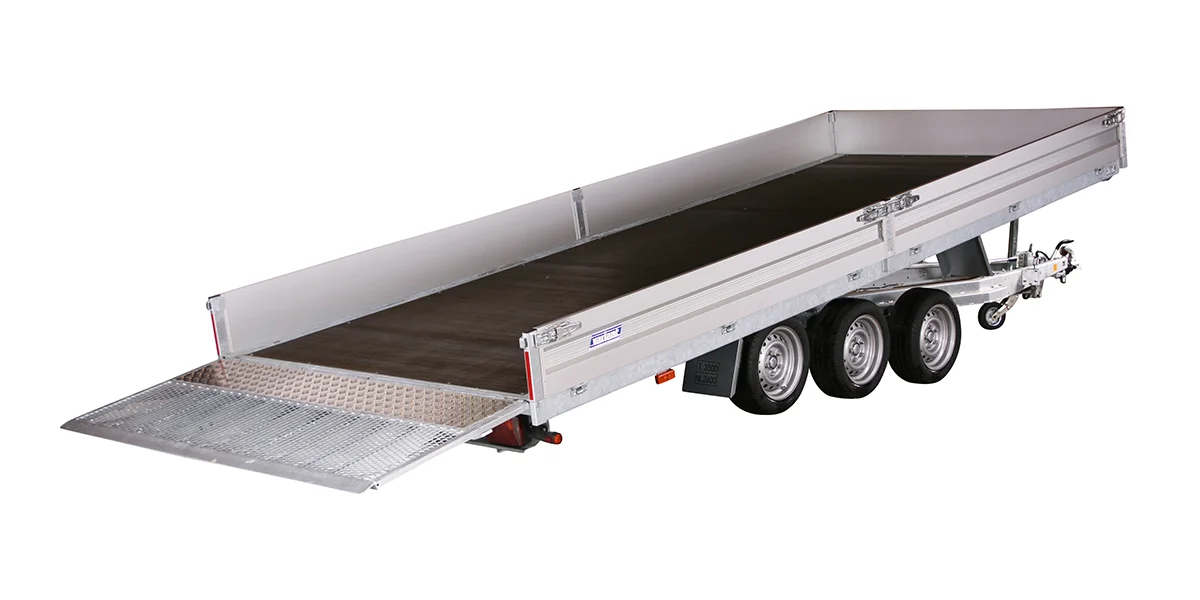

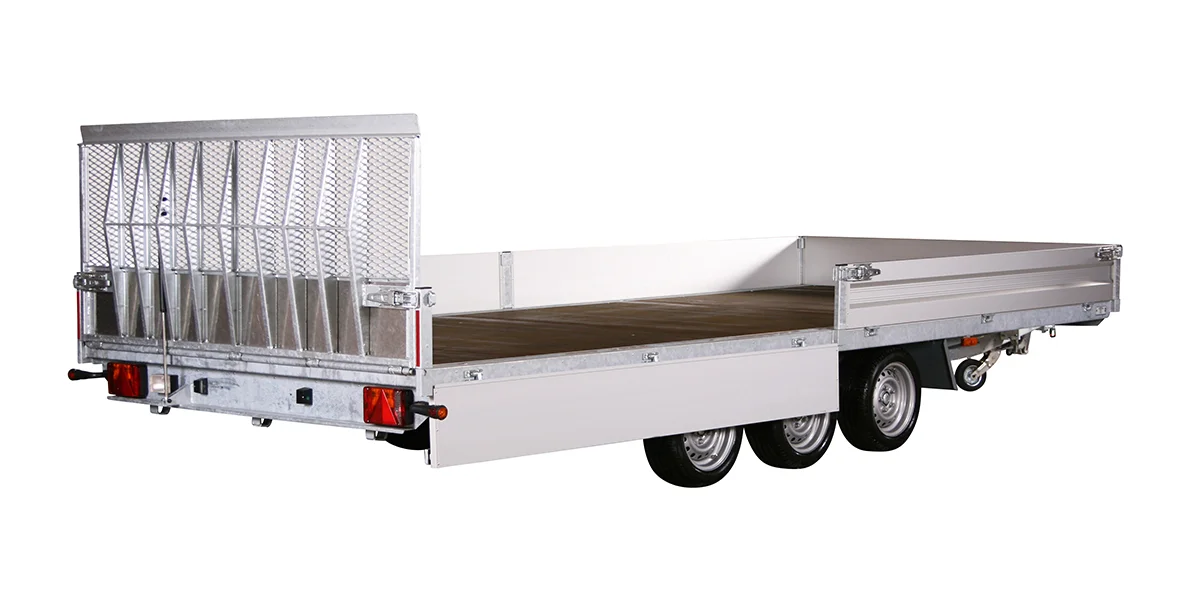

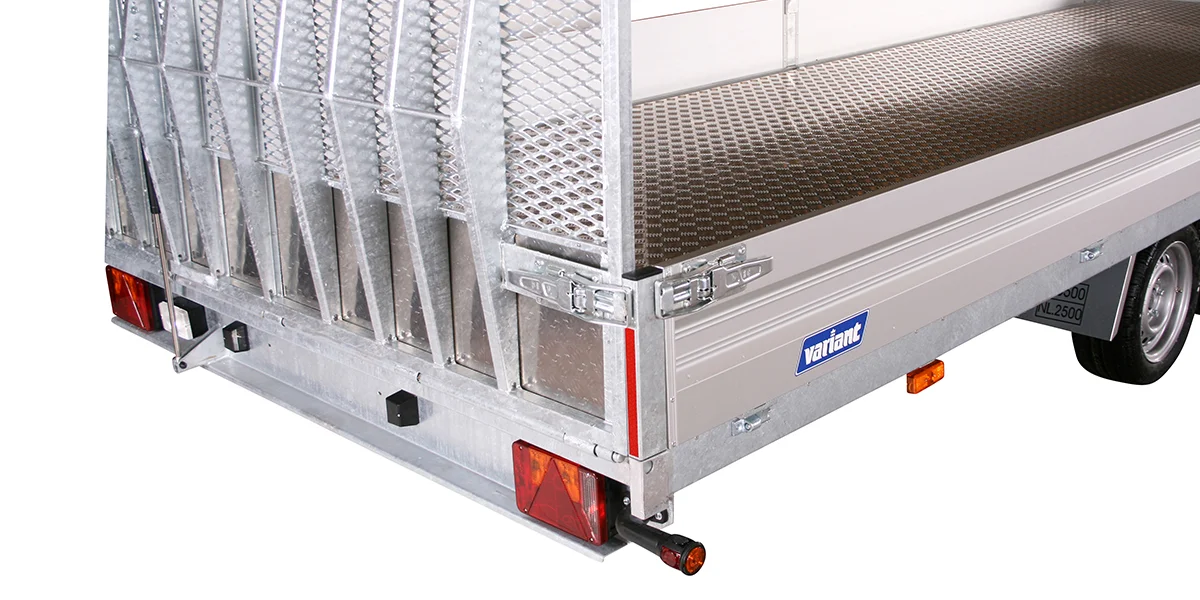

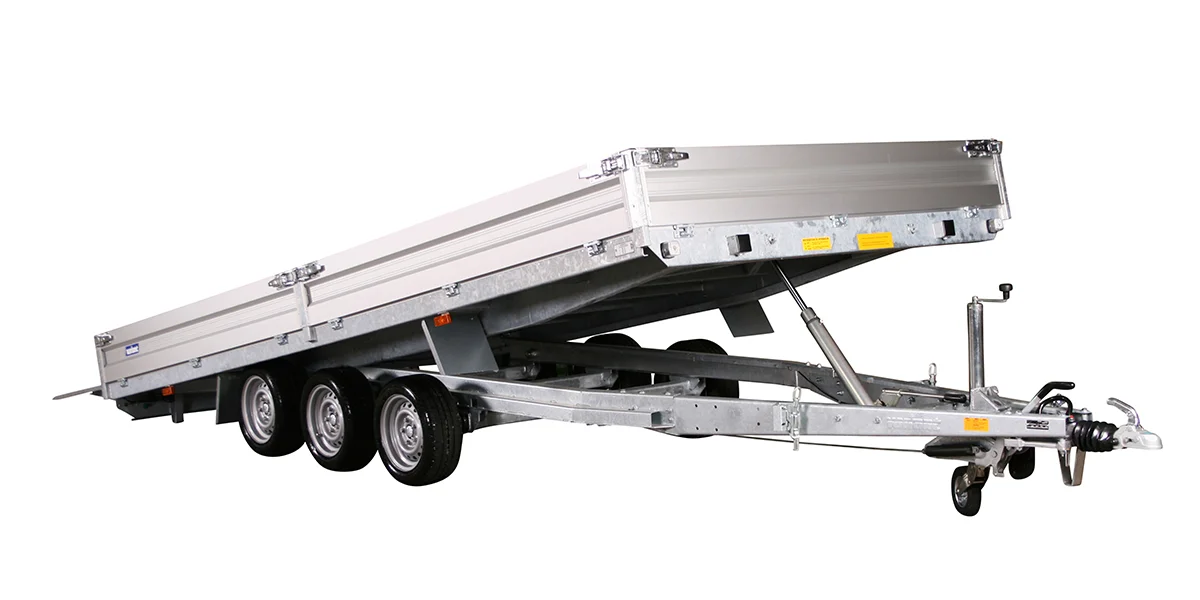

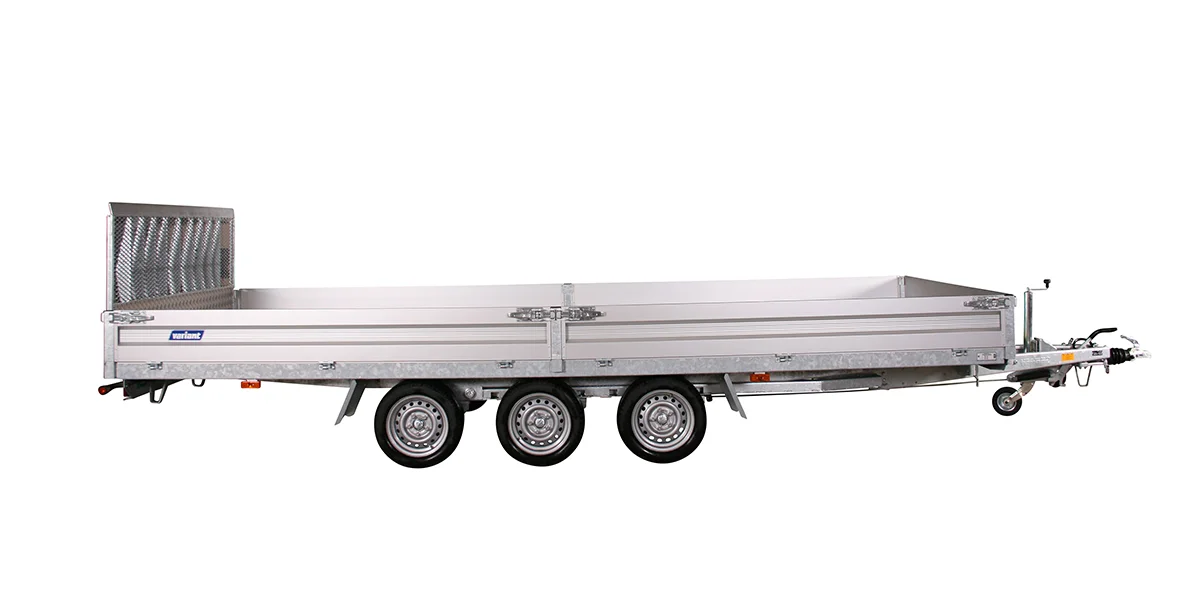

Universal Trailer 3553 UX 5.25 x 2.15m
NEW MAXI LOAD

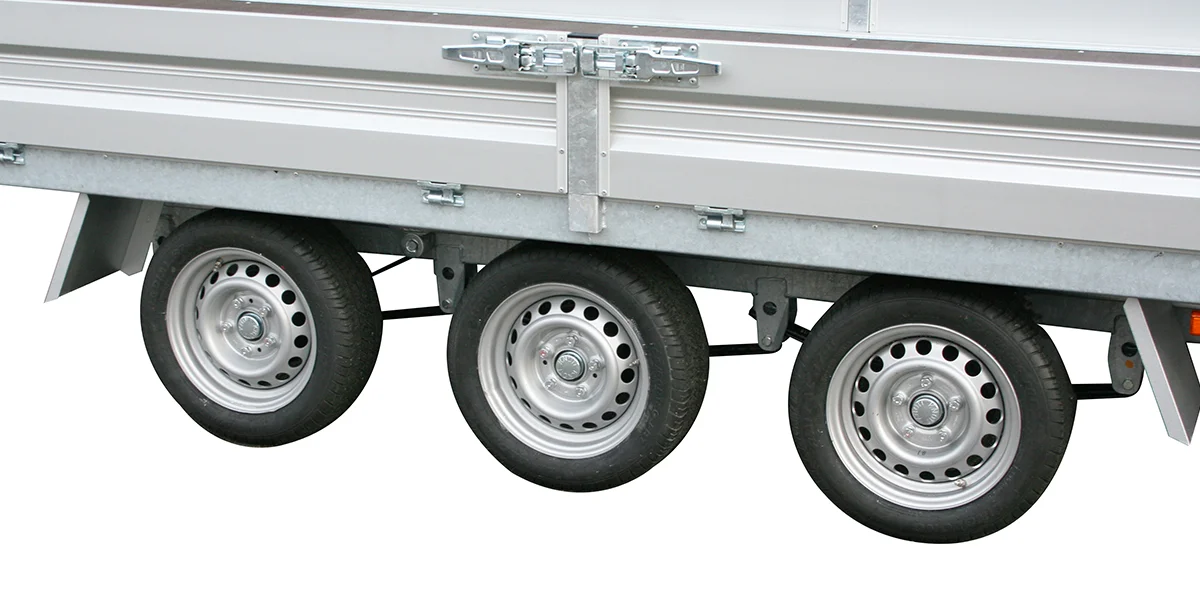

The NEW UX trailers are part of the Maxi-Load series, feature a fully welded – bolted hot-dip galvanised chassis with extremely high strength, leaf springs ensuring superb suspension and top-class driving characteristics. The total weight is 3500 kg and the payload up to 2428 kg with three axles with ADR certified mechanical overrun braking.
Only 3 axled European trailers certified up to 3.5 tonne in Australia!
For specs, see “Product Information ”
Contact us to order now!
Optional Extras Available With This Model:
| Extra dropsides – 30 cm |
| High tarpaulin – 175 cm |
| Front stand – 70 cm |
| Aluminium floor |
| Toolbox, mounted below the floor |
| Standard spare wheel with bracket |
| Electric tip with cable |
| Electric tip with app control |
| Electric tip with wireless control |

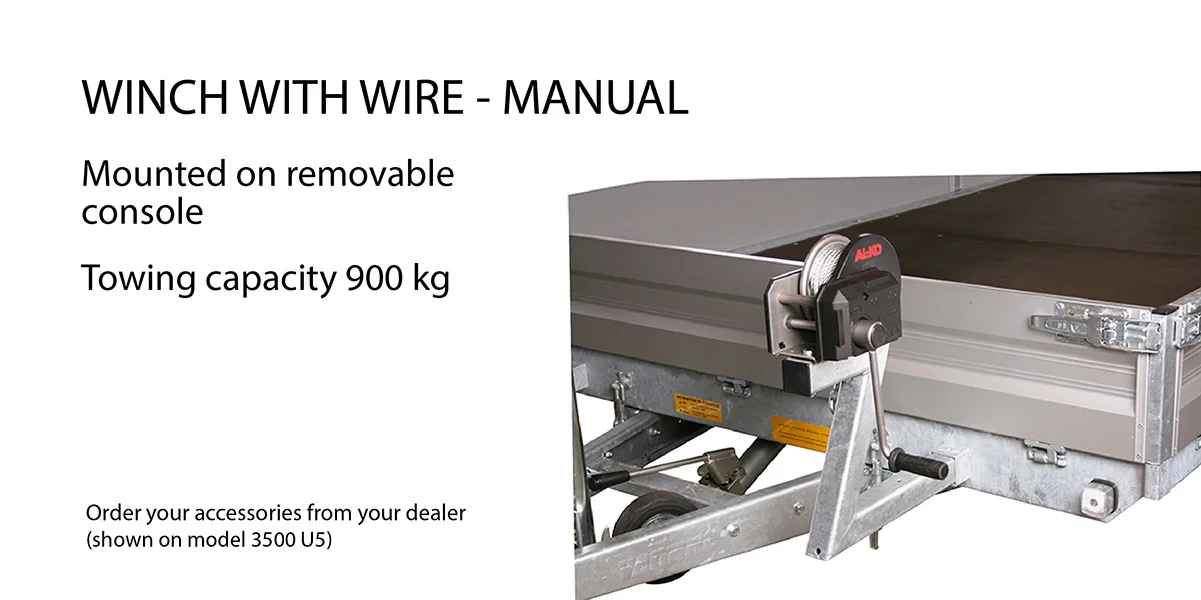

| Winch with wire and removable console |

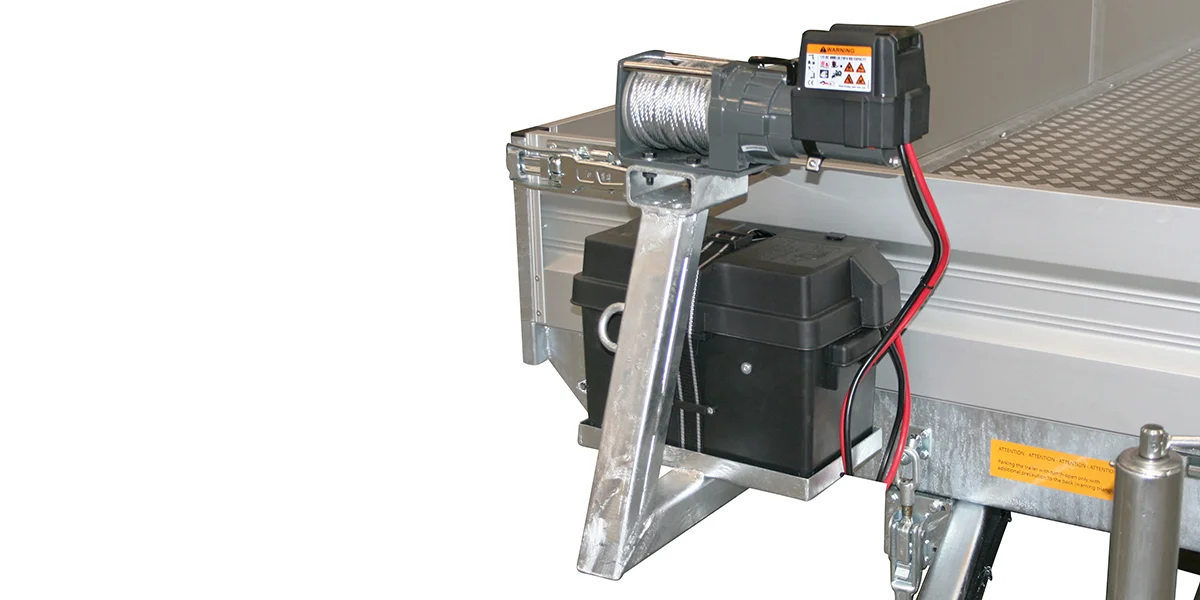

| Electric winch with wire and removable console |
| LED light |
| Wheel shock absorbers (all wheels) |
