| Manufacturer | Variant |
|---|---|
| Product Code | 2005 C3 |
| Series | Closed-Series, Enclosed Trailers |
| Internal Dimensions (LxWxH) | 302x168x188 cm |
| Total Dimensions (LxWxH) | 442x210x243cm |
| Rear Opening Dimensions (WxH) | 157 x 182 cm |
| Tare Weight | 550 kg |
| Total Weight (ATM) | 2,000 kg |
| Payload Capacity | 1,450 kg |
| Loading Height | 55 cm |
| Wheels | 13", 4 Studs, 4 Wheels |
| Axles | 2 Axles, With Brakes |
| Side Material | Phenolic Plywood with Fiberglass Finish 12mm |
| Floor Material | Phenolic Plywood 15mm |
| Lashing Rings | 6 Hooks |
| Other Included Features | Jockey Wheel, Rear Doors With Built-In Lock, Translucent Roof |
| Ramp Angle | 17 degrees |
| Optional Extras | See More Information |
| Rough Size In Feet | 10×5.5 FT |

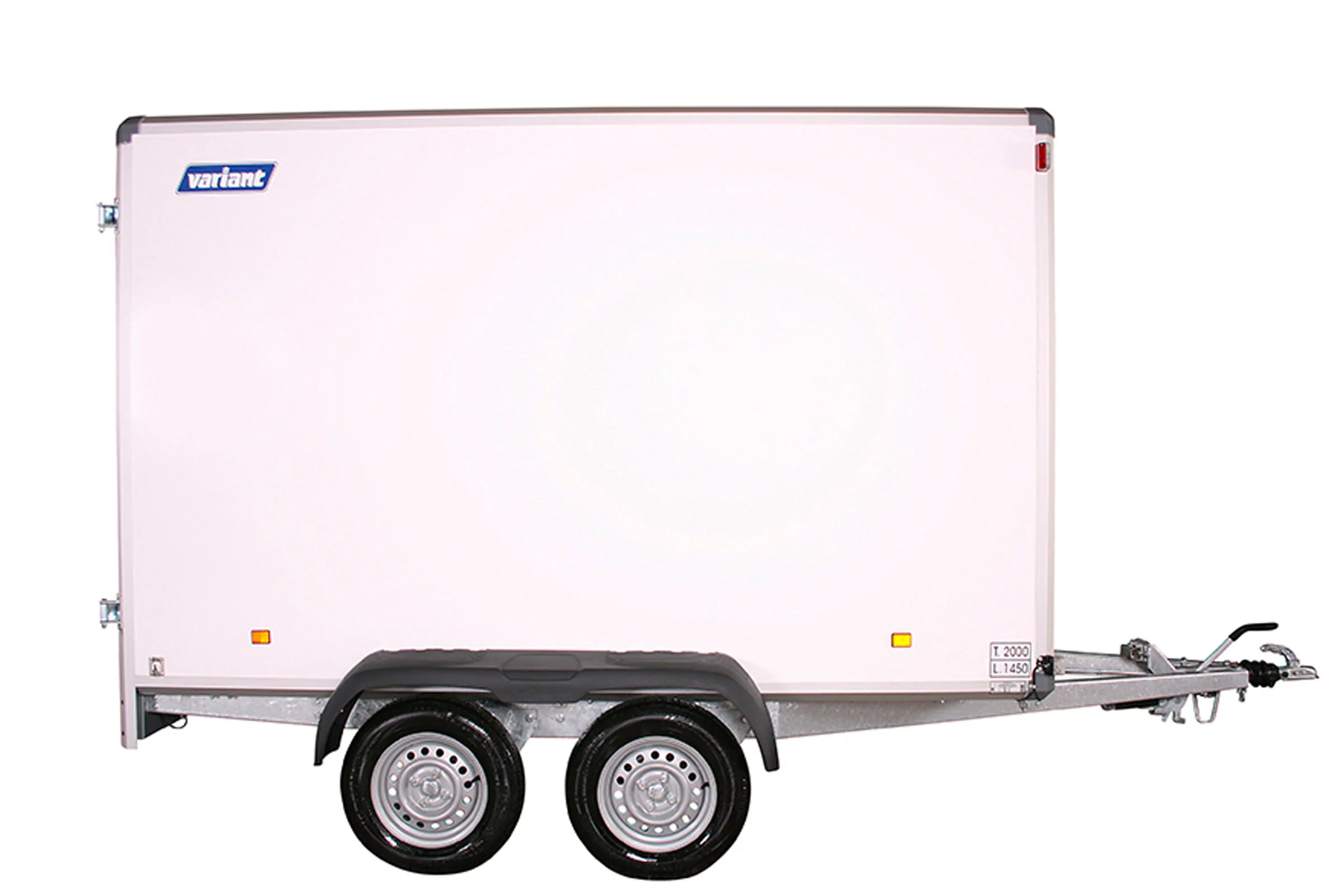

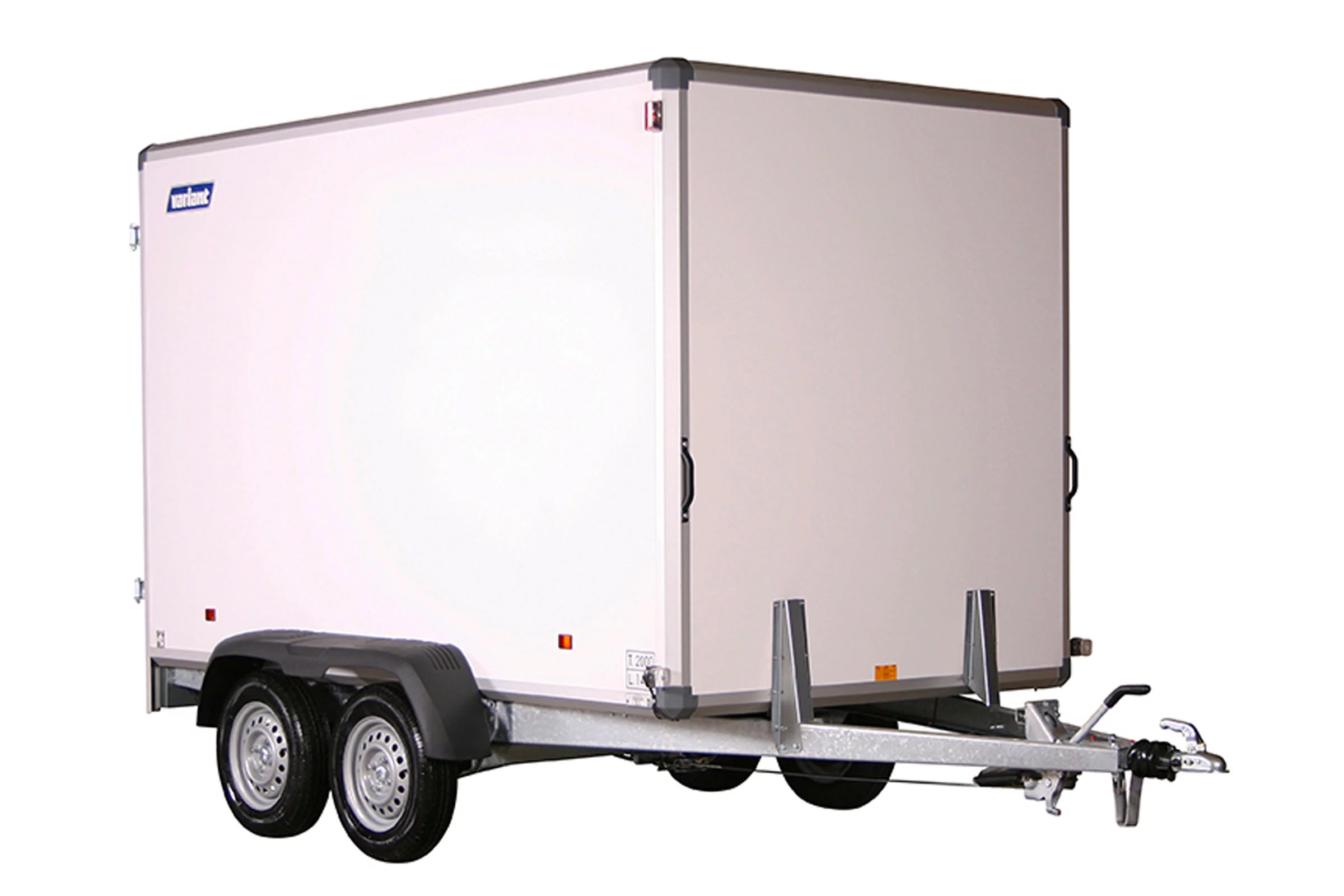

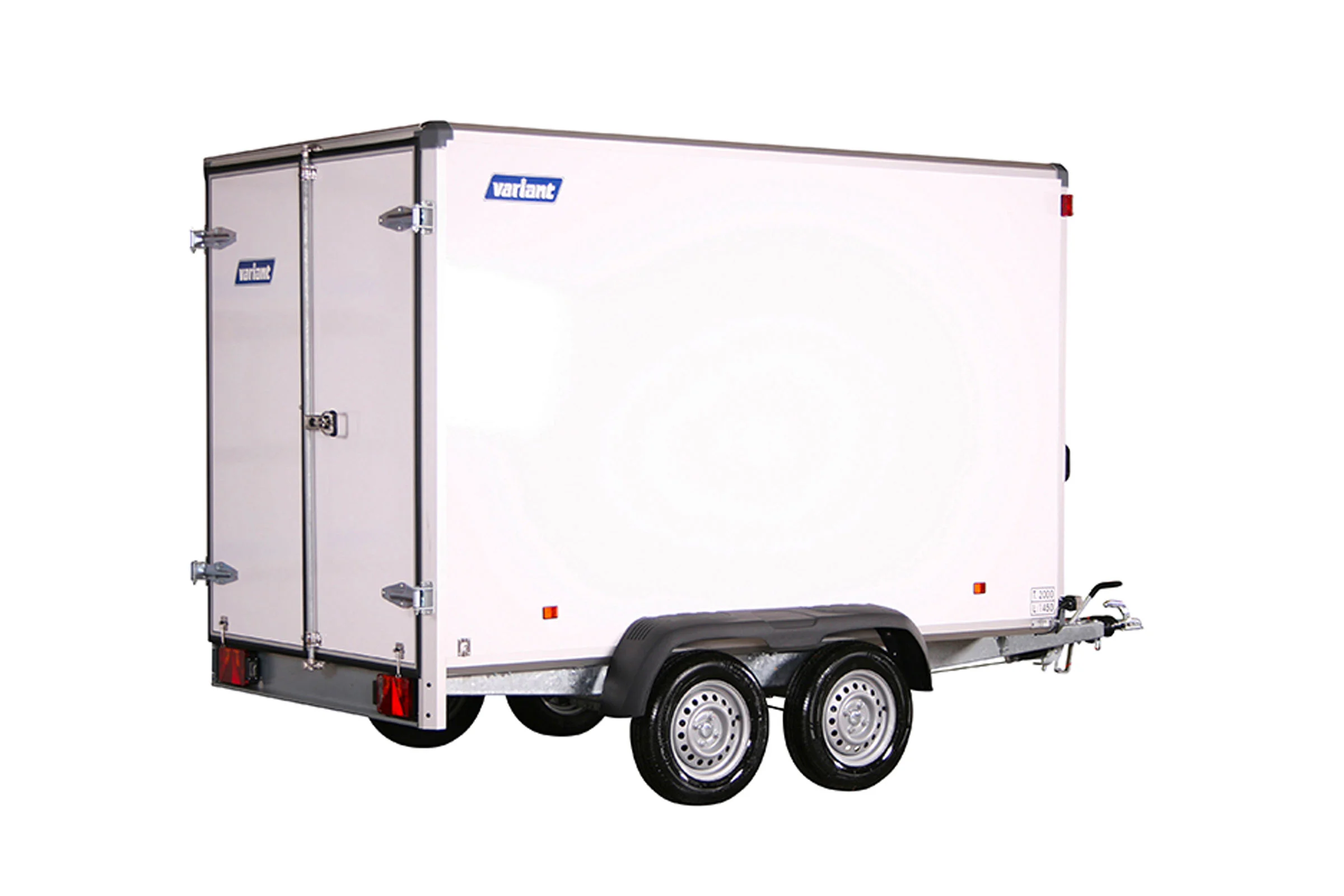

Cargo Trailer 2005 C3 (10×5.5 ft)
Tandem Enclosed Box Van trailer. 3 m long inside and 1,450 kg payload capacity, perfect for transporting luggage, bulk materials, business goods & other cargo. Can be manufactured with side hatch. Hot dipped Galvanised steel chassis for durability and longevity. Twin axle with mechanical overrun brakes.
For specs, see “Product Information”
Contact us to order now!
Closed Cargo Trailer 2005 C3
Closed trailers with doors or ramp. Ideal as a moving trailer for the transport of goods, for workshop design and as an exhibition trailer with a side hatch. The floor base is a durable non-slip surface. Extra optional equipment is offered, including interior lighting, extra door or hatch opening, rear supports, lashing rails, etc.
Although this cargo trailer is a similar size as the 1305 model, however it has a 2,000kg total weight & payload.
Huge range available: 752 DC2, 715 C2, 1305 C3, 2517 C3, 1317 C4, 2005 CVB35, 2705 CVB35, 2705 CVB42.
We have even larger “Top Cargo” range, including: 3021 C4, 3021 C5, 3521 C4 and 3521 C5. Also a “Workshop Container” model 2000 MC-XL.
Optional Extras Available With This Model:
| Rear ramp |
| Ramp rail |
| Solid veneer roof |
| Drop stands, 2 pcs. |
| Extra door in the side |
| Hatch opening in the side |
| Inside LED-light 230 V |
| Inside LED-light 12 V |
| Lashing rail, 2 pcs. |
| Crossbar for lashing rails |
| Aluminium floor |
| Standard spare wheel with bracket |
| LED light |
| Wheel shock absorbers (all wheels) |
| Foliation on 4 sides (demands ready-print-file |
| Additional price for set-up |
