Cargo Trailer 2705 CVB35 3.3×2.4m

Tandem Enclosed Box Van trailer. 3.5m long inside and 1,820kg payload capacity, perfect for transporting luggage, bulk materials, business goods & other cargo. Can be manufactured with side hatch. Hot dipped galvanised steel chassis for durability and longevity. Twin axles with mechanical overrun brakes.

For specs, see “Product Information”

Contact us to order now!



Product Code

2705 CVB35


Closed-Series, Enclosed Trailers

Internal Dimensions (LxWxH)

346x185x207 cm

Total Dimensions (LxWxH)

526x234x262 cm

Rear Opening Dimensions (WxH)

174 × 201 cm

Tare Weight

880 kg

Total Weight (ATM)

2,700 kg

Loading Height

52 cm

Payload Capacity

1,820 kg


13", 4 Wheels, 5 Studs


2 Axles, With Brakes

Side Material

Phenolic Plywood with Fiberglass Finish 12mm

Floor Material

Phenolic Plywood 18mm

Lashing Rings

6 Hooks

Other Included Features

Jockey Wheel, Rear Doors With Built-In Lock, Support Legs In The Back, Translucent Roof

Ramp Angle

14 degrees

Optional Extras

See More Information

Rough Size In Feet


Closed Cargo Trailer 2705 CVB35

Closed trailers with doors or ramp. Ideal as a moving trailer for the transport of goods, for workshop design and as an exhibition trailer with a side hatch. The floor base is a durable non-slip surface. Extra optional equipment is offered, including interior lighting, extra door or hatch opening, rear supports, lashing rails, etc.

Although this cargo trailer is the size as the 2005 CVB35 model, it has a higher total weight & payload by 700 kg.

Huge range available: 752 DC2, 715 C2, 1315 C2, 1305 C3, 2005 C3, 2005 CVB35, 2705 CVB42.

We have even larger “Top Cargo” range, including: 3021 C4, 3021 C5, 3521 C4 and 3521 C5. Also a “Workshop Container” model 2000 MC-XL.

Optional Extras Available With This Model:

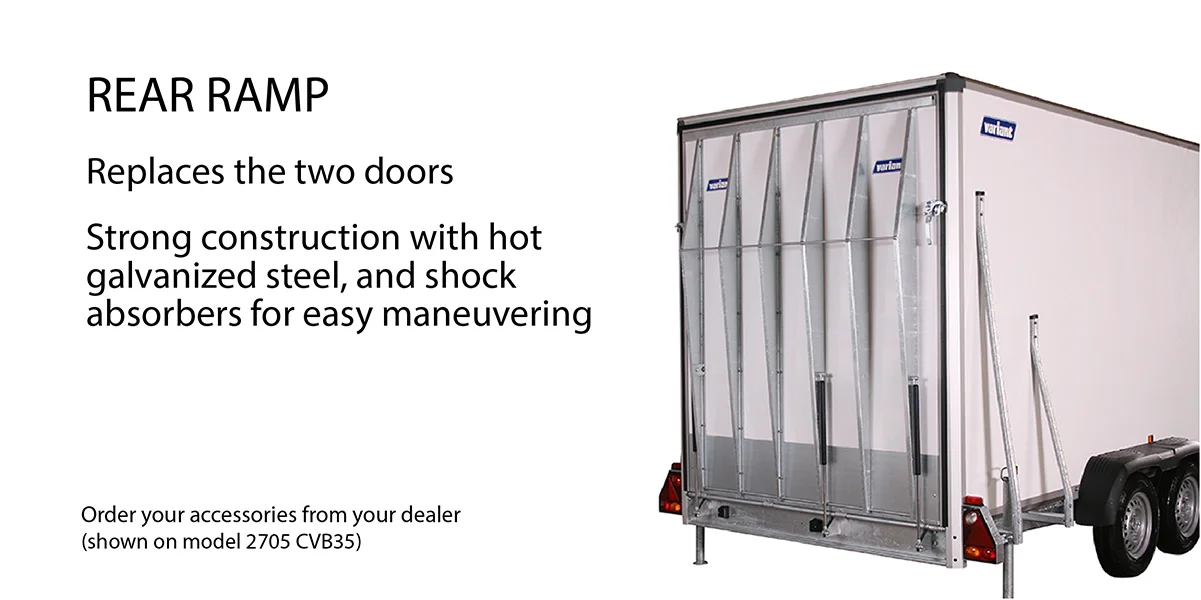

Rear ramp
Ramp rail
Solid veneer roof
Extra door in the side
Hatch opening in the side
Inside LED-light 230 V
Inside LED-light 12 V
Lashing rail, 2 pcs.
Crossbar for lashing rails
Aluminium floor
Standard spare wheel with bracket
LED light
Wheel shock absorbers (all wheels)
Foliation on 4 sides (demands ready-print-file)
Additional price for set-up
Ramps 2t/200 cm
