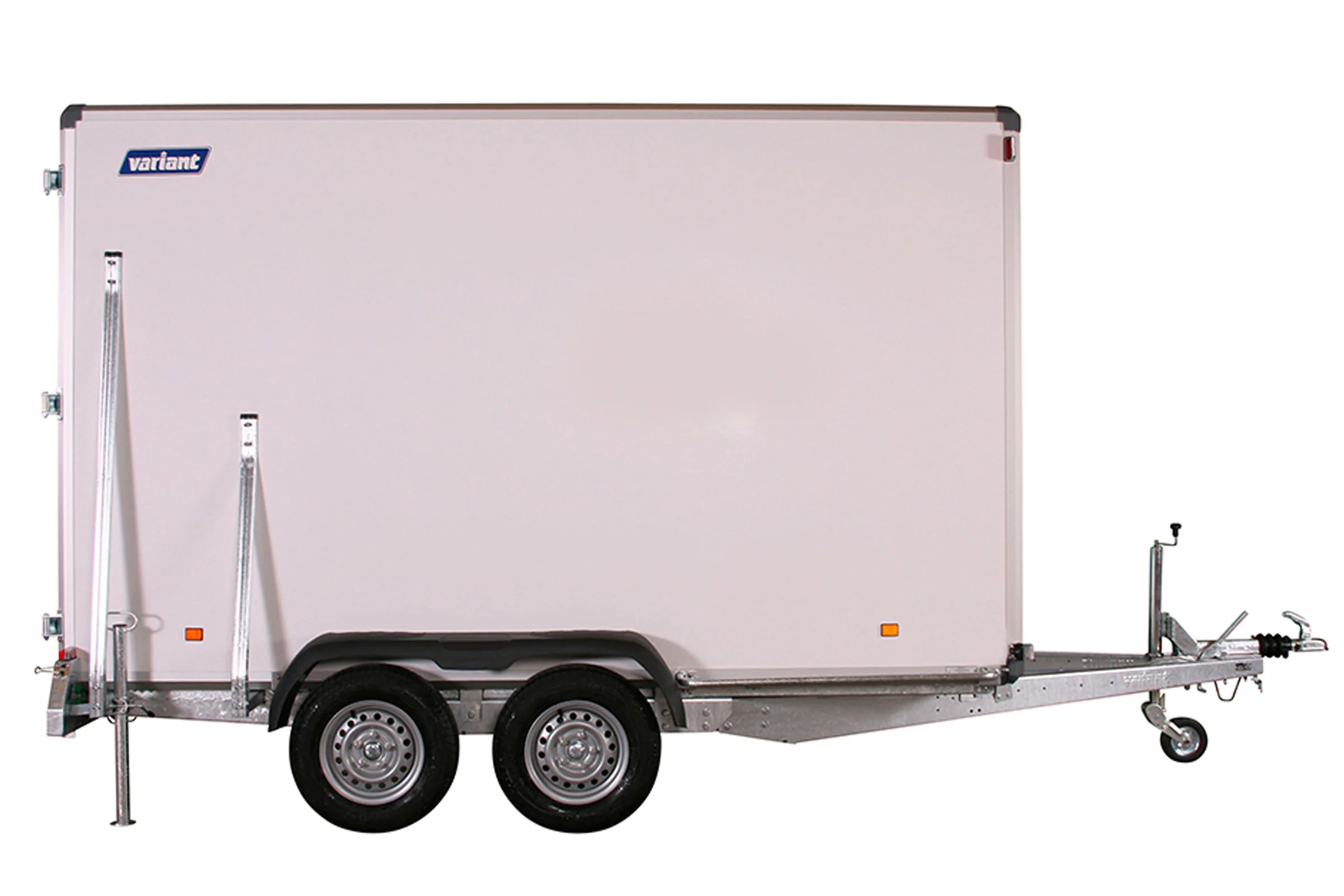

Cargo Trailer 2005 CVB35 3.3×2.4m

Tandem Enclosed Box Van trailer. 3.5 m long inside and 1,120 kg payload capacity,  perfect for transporting luggage, bulk materials, business goods & other cargo. Can be manufactured with side hatch. Hot dipped galvanised steel chassis for durability and longevity. Twin axles with mechanical overrun brakes.

For specs, see “Product Information”

Contact us to order now!

Closed Cargo Trailer 2005 CVB35

Closed trailers with doors or ramp. Ideal as a moving trailer for the transport of goods, for workshop design and as an exhibition trailer with a side hatch. The floor base is a durable non-slip surface. Extra optional equipment is offered, including interior lighting, extra door or hatch opening, rear supports, lashing rails, etc.

Although this cargo trailer is a similar size as the 1305 model, however it has a 2,000kg total weight & payload.

Huge range available: 752 DC2, 715 C2, 1315 C21305 C3, 2005 C3, 2705 CVB35, 2705 CVB42.

We have even larger “Top Cargo” range, including: 3021 C4, 3021 C5, 3521 C4 and 3521 C5. Also a “Workshop Container” model 2000 MC-XL.

Optional Extras Available With This Model:

Rear ramp
Ramp rail
Solid veneer roof
Extra door in the side
Hatch opening in the side
Inside LED-light 230 V
Inside LED-light 12 V
Lashing rail, 2 pcs.
Crossbar for lashing rails
Aluminium floor
Standard spare wheel with bracket
LED light
Wheel shock absorbers (all wheels)
Foliation on 4 sides (demands ready-print-file
Additional price for set-up
Ramps 2t/200 cm

Additional information

Manufacturer

Variant

Product Code

2005 CVB35

Product Line

C Series – Enclosed Cargo

Internal Dimensions (LxWxH)

346x185x207 cm

Total Dimensions (LxWxH)

526x234x262 cm

Rear Opening Dimensions (WxH)

174 × 201 cm

Tare Weight

880 kg

Total Weight (ATM)

2,000 kg

Payload Capacity

1,120 kg

Loading Height

52 cm

Wheels

13", 4 Wheels

Axles

2 Axles, With Brakes

Side Material

Phenolic Plywood with Fiberglass Finish 12mm

Floor Material

Phenolic Plywood 18mm

Lashing Rings

6 Hooks

Other Included Features

Jockey Wheel, Rear Doors With Built-In Lock, Support Legs In The Back, Translucent Roof

Ramp Angle

14 degrees

Optional Extras

See More Information

Estimated Size In Feet

11×8

Why Choose Variant?

At Variant trailers Australia we believe in providing customers with the highest quality and utmost safety. The features of our trailers are un-matched by our competitors and we hope you see that we truly are the best in the industry. More than 500,000 sold trailers are our guarantee of quality, safety and comfort.



Tyres

All Variant Trailers use new E4 rated Tubeless radials. A radial Tyre features transverse radial plies, that run perpendicular to the direction of travel, this assures less heat buildup and a softer ride.

Variant tyres are rated C for fuel efficiency, driving in wet conditions and ‘ medium ‘ for sound rating.

Rolling Resistance A to G is A measurement of fuel efficiency for the vehicles. The energy lost when the Tyre is rolling on the road surface, the lower the resistance the greater the fuel reduction and CO2 levels. A is the best performing bulls and G being the lowest.

Wet Grip A to G providers a sliding scale with information regarding the Grip ability of a Tyre in wet conditions. Higher performance tyres in this category would have shorter braking distance as opposed to lower performing ratings. A indicates the highest performance and G the lowest.

Noise 67 to 79 Db measures the amount of noise the Tyre gene rates. Usually on the Tyre label itself one black wave indicates the least amount of noise generated from the bulls. Three waves mean the highest amount of noise. This is measured in decibels. The higher the Db the greater the noise level.

Suspension

Our our trailers use either knot suspension system or axle leaf spring systems for greater road stability. These are used in conjunction with either solid steel beam axles or rubber & steel compression axles.

Braking

All Our spread living fallow has an auto reverse mechanism within the drum. With the mechanical overrun system – the hydraulically dampened overrun control device is made up of six main elements that control and operate the braking system.
1. The Housing
2. The Draw Tube
3. The Overrun Lever of Brake Link
4. The Damper
5. The Hand/Parking Brake
6. The Energy Store Unit

The handbrake, in conjunction with the energy store, is used to apply the brakes when the trailer is parked. The actuating force for the wheel brake is generated during the braking of the towing vehicle, as the trailer tends to overrun and pushes the draw tube in. The actuating force for the wheel brake is generated at the overrun device through overrunning action of the trailer (FORWARD BRAKING), reversal of trailer by the towing vehicle (AUTO-reverse), or operation of the hand/parking brake.

Innovative Technology

The oil steaming to the spring in the energy store allows gentle and progressive application of the handbrake once the handbrake has passed “over the centre”. No more sudden surprises or even injuries.

Safety Skid

The safety skid is an integral feature of the cast housing and prevents the overrun lever and handbrake lever from becoming damaged by debris and objects underneath the trailer.

Ease of Use

The Variant/Knott Hitch coupling enables easy manoeuvring of the trailer, by using hitch or handbrake lever.

Night Light

All our trailers come as standard with white reverse light lenses for safe reversing and enhanced viewing through mirrors or reversing cameras. It also illuminates the area in the direction you want people to be aware of your driving.

Night Safety

Our Trailers come with safety white reflectors to the front, amber reflectors to the side and red to the rear as standard. These are for safety at night when parked and unhitched and in order that the trailers are fully visible from all sides to oncoming vehicles.

Coupling

Whether It’s a 2700kg or 3500kg  rated hitch, all our hitch’s and couplings have a lockable position for greater security Whether travelling on a journey or in a parked position. All Variant Trailers have an easy to use independent handbrake system built alongside the extra strong coupling.

Strength

It is vital for you to have absolute confidence in your trailer, particularly when your operating day depends on it too. That’s why we develop the very strongest and sturdiest trailers you will find from Europe. Our tried-and-tested welding technology makes us unique in being able to supply transport solutions that have got what it takes to take on any job.
