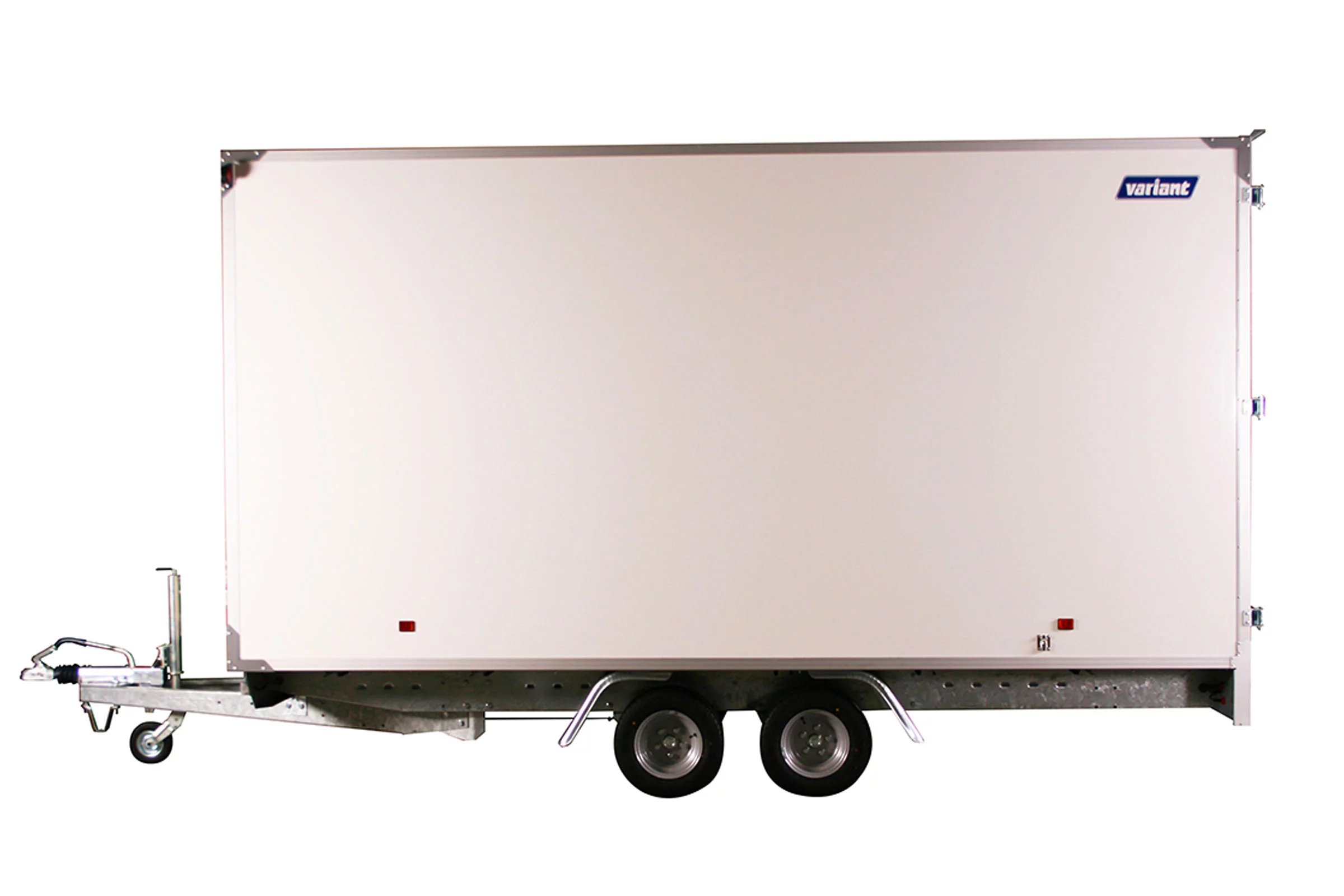

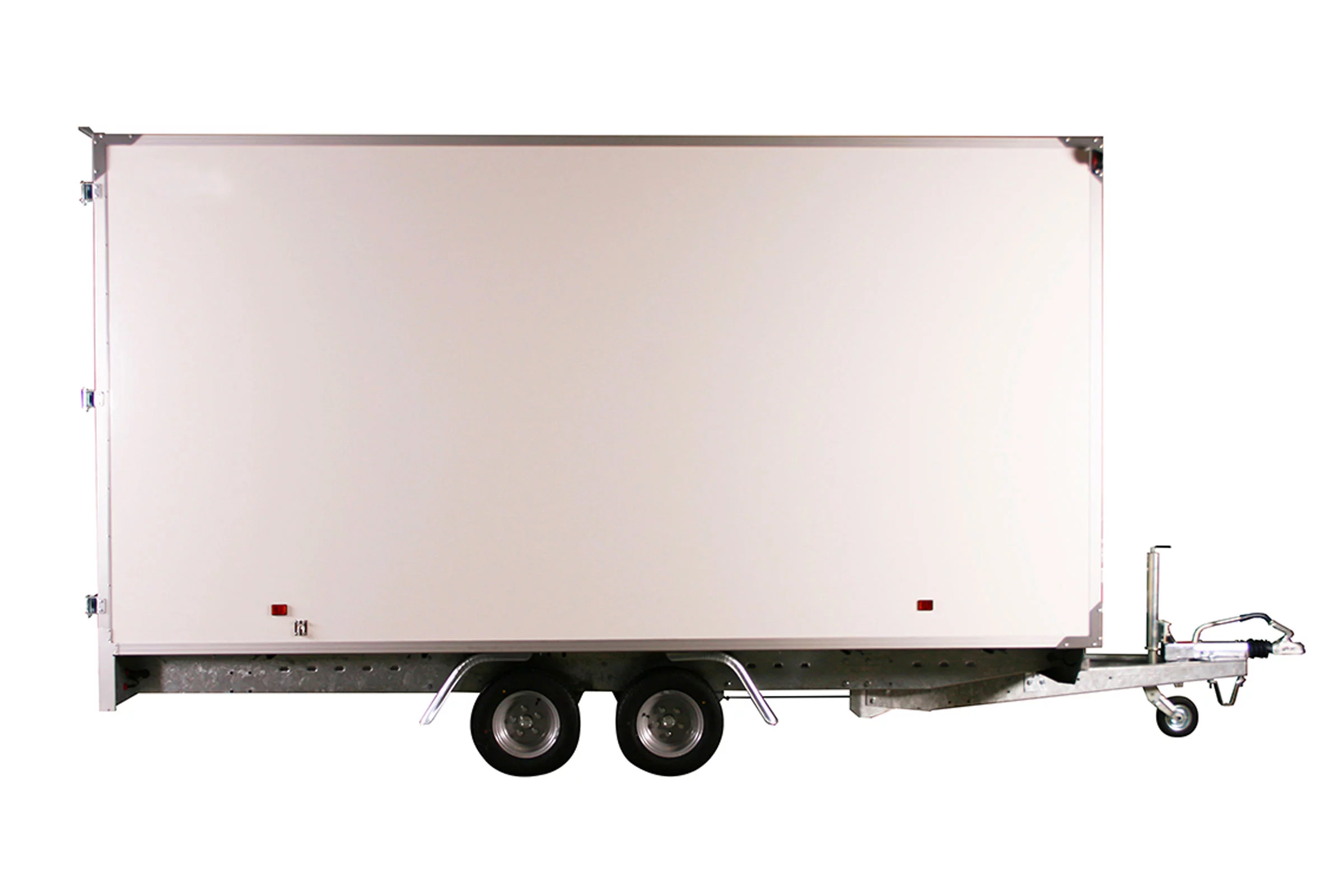

Cargo Trailer 3021 C4 4.2×2.1m
Large tandem enclosed box van trailer. 4 m long inside and 2,140 kg payload capacity, perfect for transporting luggage, bulk materials, business goods & other cargo. Can be manufactured with side hatch. Hot dipped galvanised steel chassis for durability and longevity. Twin axles with mechanical overrun brakes.
For specs, see “Product Information”
Contact us to order now!
Get a quote
Call our team for an immediate price.
Closed Cargo Trailer 3021 C4

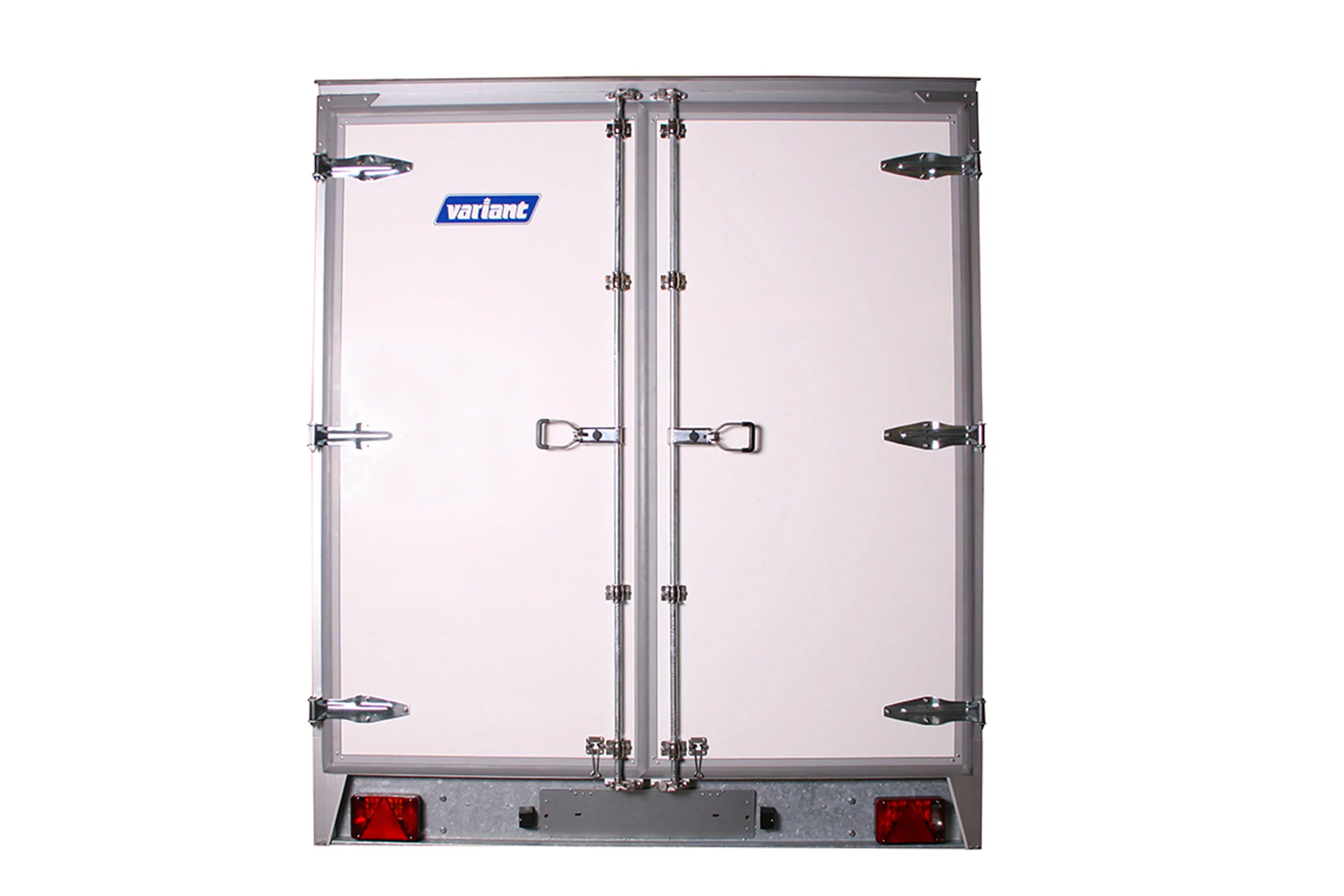

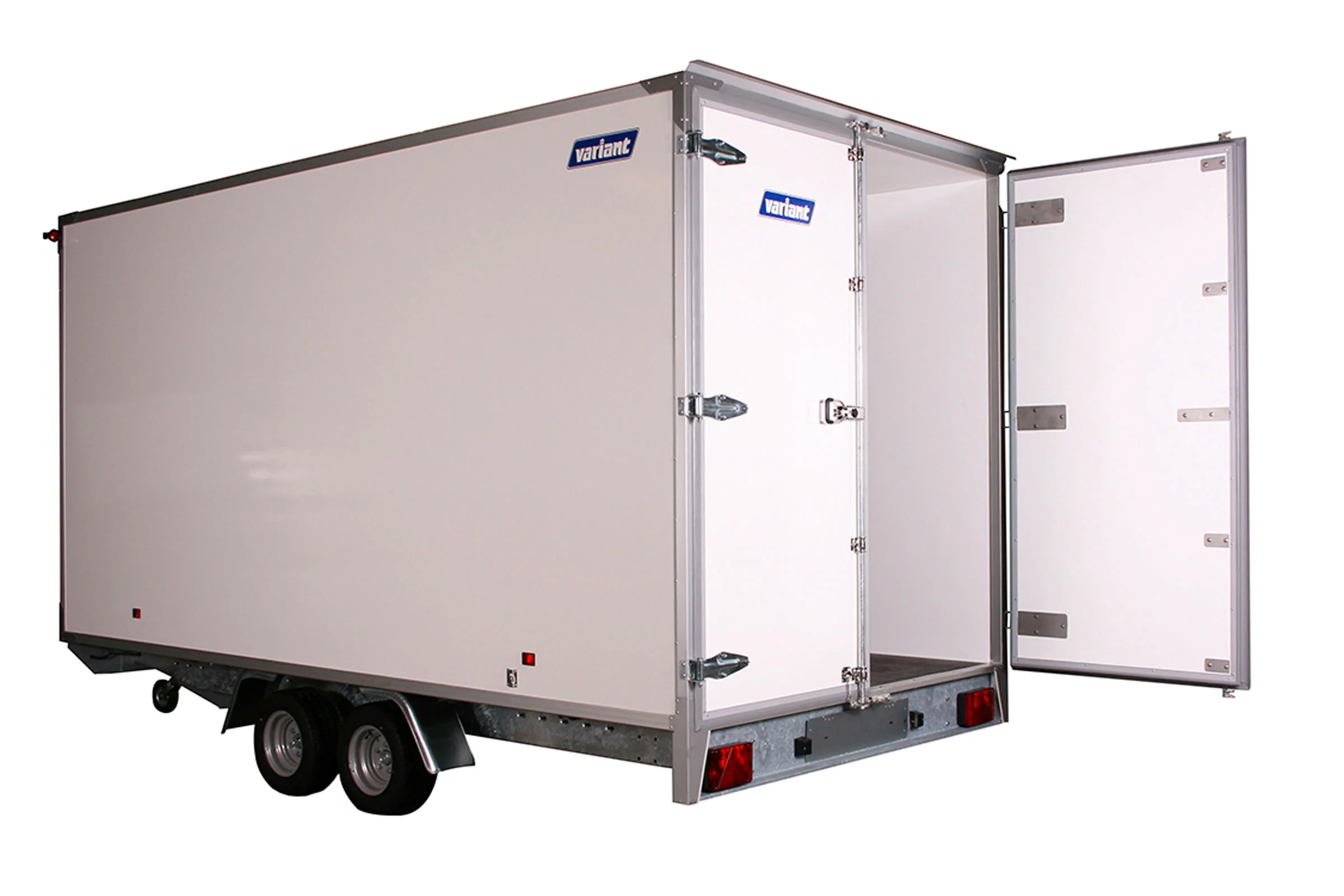

Large and spacious trailers built in foam panels with beautiful fibre glass cladding. Comes with dual rear doors, both with heavy duty locks. Compact spare wheel underneath the box, and the unit has a low loading height. Lockable ramp drawers are also standard equipment. Beautiful and strong trailer series, which can be equipped with an open hatch opening on the side for exhibition use.
This is our smallest sized unit in the “large cargo” category.

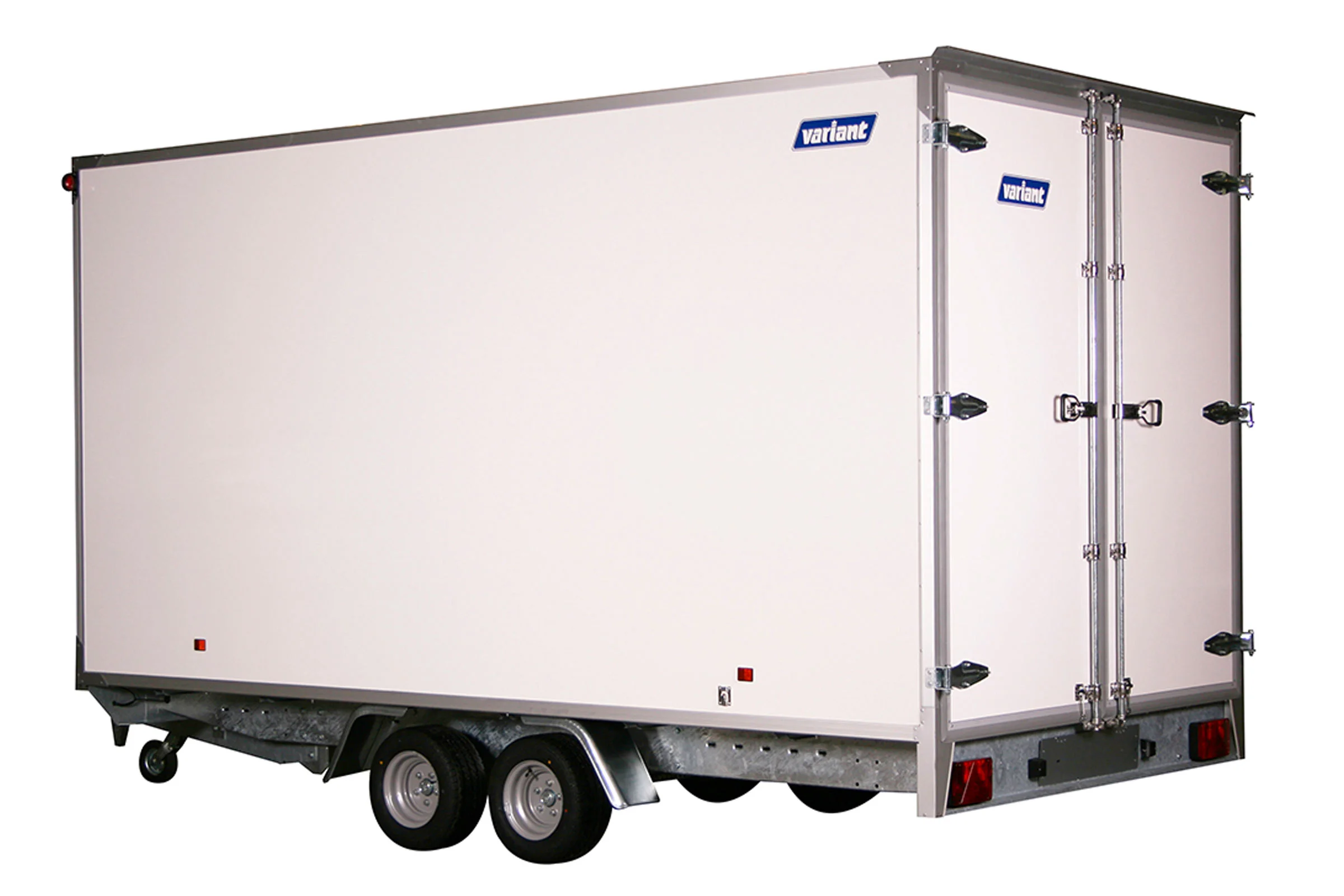

We have a huge range of large enclosed trailers, including: 3021 C4, 3021 C5, 3521 C4 and 3521 C5. Also a “Workshop Container” model 2000 MC-XL.
Huge range of enclosed cargo trailers available: B715 C2, 1315 C2, 2005 C3, 2517 C3, 1317 C4, 2005 CVB35, 2705 CVB35, 2705 CVB42.
Trailer Foil Wrap
Get your message out there! Take advantage of the large surfaces for your advertising message.
We offer full foil of all 4 sides on our Cargo trailers – the perfect advertising space.
Get the trailer wrapped in solid colour foil or choose your own advertising message. Have an ad agency to prepare a print-ready file, or leave the work to us.
Optional Extras Available With This Model:
| Drop stands, 2 pcs. |
| Extra door in the side |
| Hatch opening in the side |
| Inside LED-light 230 V |
| Inside LED-light 12 V |
| Lashing rail, 2 pcs. |
| Crossbar for lashing rails |
| Aluminium floor |
| Standard spare wheel with bracket |
| LED light |
| Wheel shock absorbers (all wheels) |
| Ramps 4 t/250 cm |
Additional information
| Manufacturer | Variant |
|---|---|
| Product Code | 3021 C4 |
| Product Line | C Series – Enclosed Cargo |
| Trailer Internal Size (LxWxH) | 409x199x208 cm |
| Total Trailer Size (LxWxH) | 558x210x277 cm |
| Trailer Rear Opening Size (WxH) | 199 × 208 cm |
| Trailer Tare Weight | 860 kg |
| Total Trailer Weight (ATM) | 3,000 kg |
| Trailer Payload Capacity | 2,140 kg |
| Trailer Load Height | 56 cm |
| Trailer Wheels | 10", 4 Wheels, 5 Studs |
| Axles | 2 Axles, With Brakes |
| Side Material | Foam Panel with Fiberglass Coating 52mm |
| Trailer Floor Material | Phenolic Plywood 18mm |
| Lashing Rings | 8 Hooks |
| Other Trailer Features | Jockey Wheel, Ramp Drawers, Rear Doors With Built-In Lock |
| Trailer Optional Extras | See More Information |
| Est. Size to Feet | 14×7 |
Why Choose Variant?
At Variant trailers Australia we believe in providing customers with the highest quality and utmost safety. The features of our trailers are un-matched by our competitors and we hope you see that we truly are the best in the industry. More than 500,000 sold trailers are our guarantee of quality, safety and comfort.
Tyres
All Variant Trailers use new E4 rated Tubeless radials. A radial Tyre features transverse radial plies, that run perpendicular to the direction of travel, this assures less heat buildup and a softer ride.
Variant tyres are rated C for fuel efficiency, driving in wet conditions and ‘ medium ‘ for sound rating.
Rolling Resistance A to G is A measurement of fuel efficiency for the vehicles. The energy lost when the Tyre is rolling on the road surface, the lower the resistance the greater the fuel reduction and CO2 levels. A is the best performing bulls and G being the lowest.
Wet Grip A to G providers a sliding scale with information regarding the Grip ability of a Tyre in wet conditions. Higher performance tyres in this category would have shorter braking distance as opposed to lower performing ratings. A indicates the highest performance and G the lowest.
Noise 67 to 79 Db measures the amount of noise the Tyre gene rates. Usually on the Tyre label itself one black wave indicates the least amount of noise generated from the bulls. Three waves mean the highest amount of noise. This is measured in decibels. The higher the Db the greater the noise level.
Suspension
Our our trailers use either knot suspension system or axle leaf spring systems for greater road stability. These are used in conjunction with either solid steel beam axles or rubber & steel compression axles.
Braking
All Our spread living fallow has an auto reverse mechanism within the drum. With the mechanical overrun system – the hydraulically dampened overrun control device is made up of six main elements that control and operate the braking system.
1. The Housing
2. The Draw Tube
3. The Overrun Lever of Brake Link
4. The Damper
5. The Hand/Parking Brake
6. The Energy Store Unit
The handbrake, in conjunction with the energy store, is used to apply the brakes when the trailer is parked. The actuating force for the wheel brake is generated during the braking of the towing vehicle, as the trailer tends to overrun and pushes the draw tube in. The actuating force for the wheel brake is generated at the overrun device through overrunning action of the trailer (FORWARD BRAKING), reversal of trailer by the towing vehicle (AUTO-reverse), or operation of the hand/parking brake.
Innovative Technology
The oil steaming to the spring in the energy store allows gentle and progressive application of the handbrake once the handbrake has passed “over the centre”. No more sudden surprises or even injuries.
Safety Skid
The safety skid is an integral feature of the cast housing and prevents the overrun lever and handbrake lever from becoming damaged by debris and objects underneath the trailer.
Ease of Use
The Variant/Knott Hitch coupling enables easy manoeuvring of the trailer, by using hitch or handbrake lever.
Night Light
All our trailers come as standard with white reverse light lenses for safe reversing and enhanced viewing through mirrors or reversing cameras. It also illuminates the area in the direction you want people to be aware of your driving.
Night Safety
Our Trailers come with safety white reflectors to the front, amber reflectors to the side and red to the rear as standard. These are for safety at night when parked and unhitched and in order that the trailers are fully visible from all sides to oncoming vehicles.
Coupling
Whether It’s a 2700kg or 3500kg rated hitch, all our hitch’s and couplings have a lockable position for greater security Whether travelling on a journey or in a parked position. All Variant Trailers have an easy to use independent handbrake system built alongside the extra strong coupling.
Strength
It is vital for you to have absolute confidence in your trailer, particularly when your operating day depends on it too. That’s why we develop the very strongest and sturdiest trailers you will find from Europe. Our tried-and-tested welding technology makes us unique in being able to supply transport solutions that have got what it takes to take on any job.
